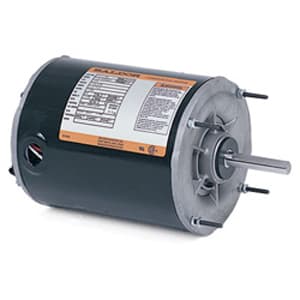

HIC274A Baldor Electric Company Motors

Name: HIC274A
Brand: Baldor Electric Company

Part#:HIC274A

Manufacturer:Baldor Electric Company

Category:Motors

Product Lifecycle:Active

Product description

General Purpose; 1/3HP; 48Z Frame Size; 1800 Sync RPM; 115/230 Voltage; AC; TEAO Enclosure; NEMA Frame Profile; Single Phase; 60 Hertz; Thru Bolt; No Base; 1/2" Shaft Diameter; 10.14" Overall Length

Product Details

Base
No
Mounting Method
Thru Bolt
Frame Profile
NEMA
Weight / LBS
28
Overall Length
10.14 Inch | 257.556 Millimeter
Shaft Diameter
0.5 Inch | 12.7 Millimeter
Base to Center Height - Millimeter
0
Inch - Metric
Inch
Other Features
Commercial Duty
Base to Center of Shaft - Inch
0
Enclosure
TEAO
Hertz
60
Phase
Single Phase
Frame Size
48Z
Minimum Buy Quantity
N/A
Voltage
115/230
Sync RPM
1800
Brand
BALDOR-RELIANCE
Horse Power
1/3HP
Weight / Kilogram
9.06

Current

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty

HIC274A Baldor Electric Company
