1008801EXCH Eaton Industrial Automation Components

Name: 1008801EXCH
Brand: Eaton

1008801EXCH on Advantage Electric Supply

Part#:1008801EXCH

Manufacturer:Eaton

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

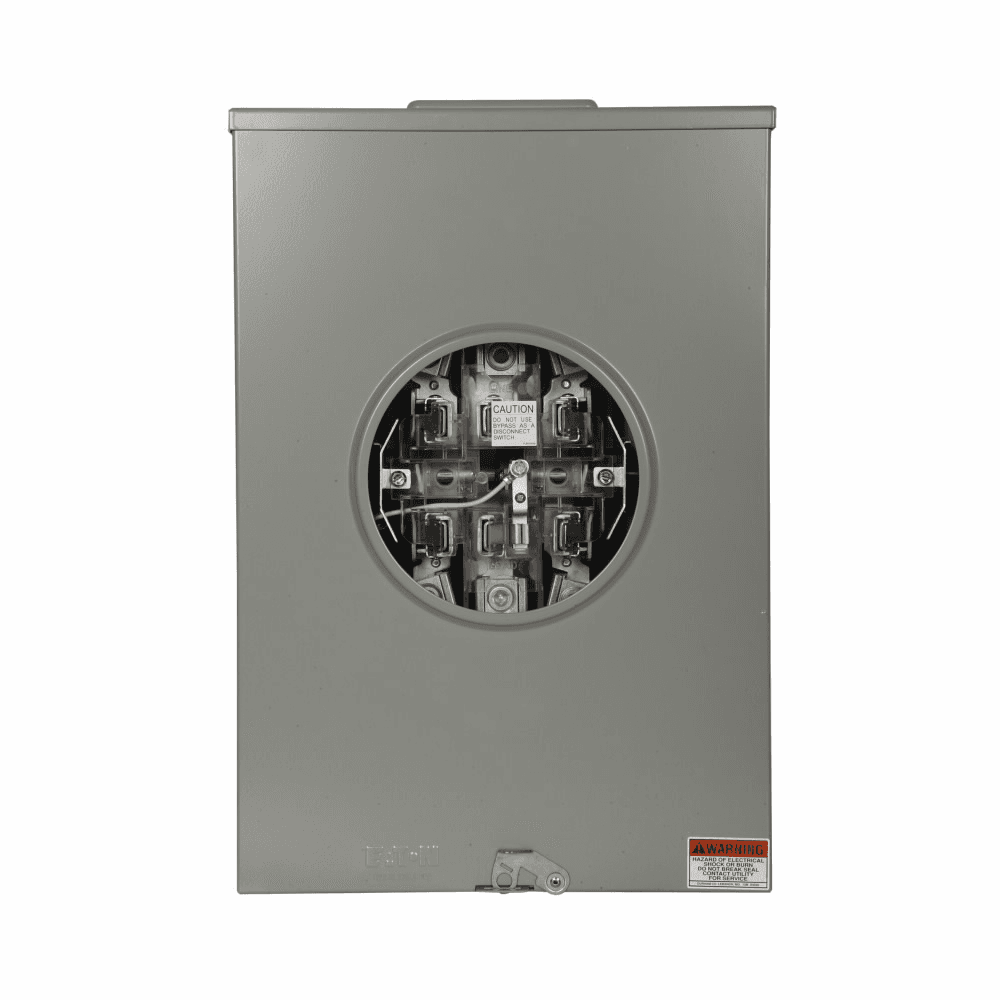

1008801EXCH Eaton - Eaton meter socket, Comm, 200A, Over/under, 3-5/16 inch hub cover plate, #6-350 kcmil, 5-jaw, 1-ph, #6-350 kcmil, Lever bypass, 3-wire, Ringless, 600 Vac

Product Details

Height
19 inches
Type
Commercial
Number of Phases
1
Amperage
200 amperes
Voltage
600 volts
Number of Wires
3
Length
4.93 inches
Feed Type
Bottom, Top
Weight
13 pounds

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
