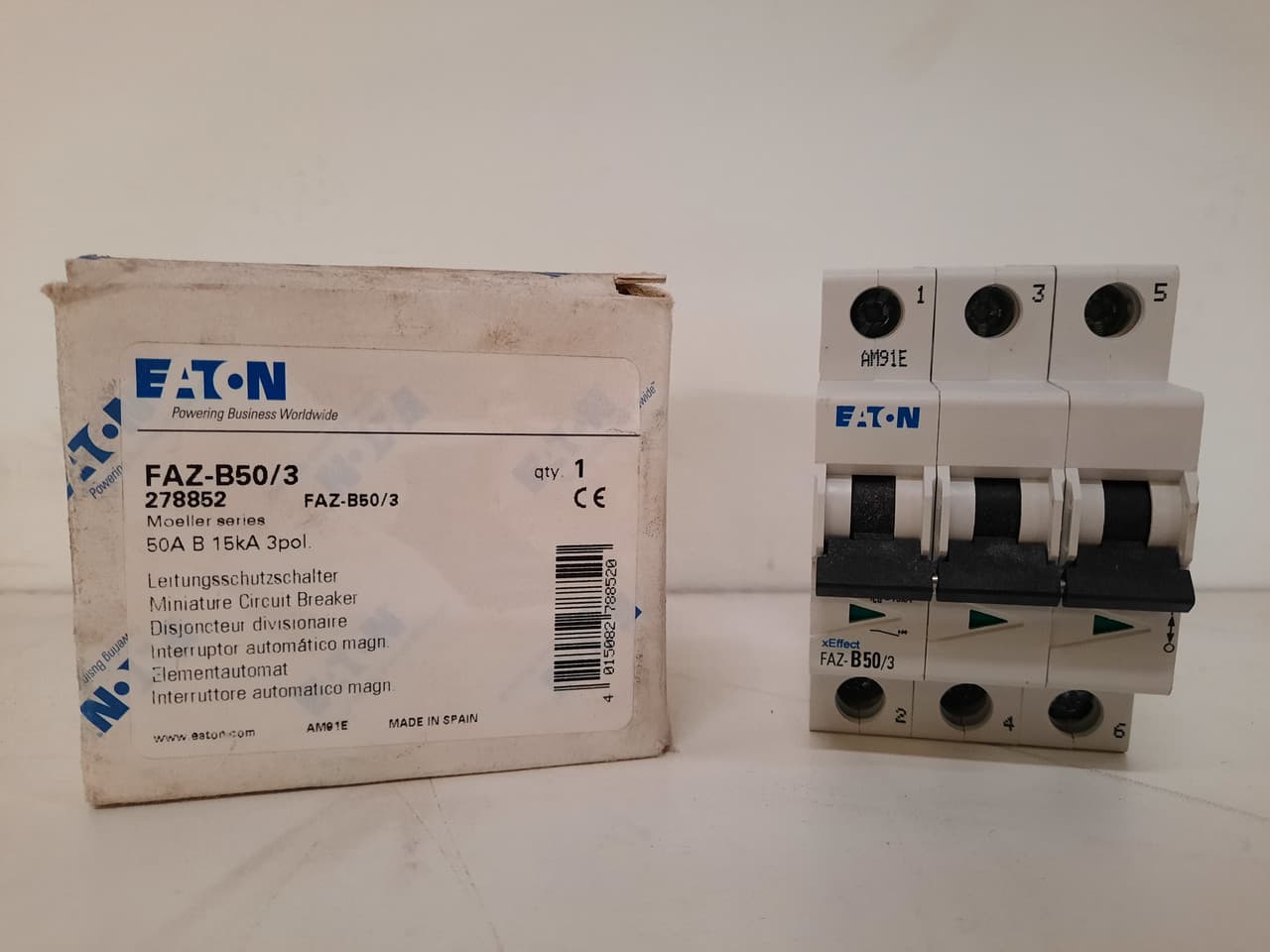

FAZ-B50/3 Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-B50/3
Manufacturer:Eaton
Category:Miniature Circuit Breakers (MCBs)
Product Lifecycle:Active
Product description
Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,Low levels of inrush current are expected,50 A,15 kAIC,Three-pole,3-5X /n,50-60 Hz,Standard terminals,B Curve
Product Details
- Number of Poles 3 Pole
- Current Rating 50 A
- Trip Curve B
- SCCR 5 kA
- UL Standard 1077
- UL CCN QVNU2
- UL File No. E177451
- Terminal Type Compression
- Trip Setting: 3 to 5 x Rated Current
- Terminal Type: Screw
- Interrupting Rating: 10 kA at 480 Star/277 Volt AC
- Mounting: DIN Rail
- Poles: 3
- Volts: 480 VAC Star/277 VAC at 50/60 Hertz
- Amps: 32 A
- Shipping Weight: 0.85 lbs.
- Size: 2.09 Inch Width x 3.15 Inch Height
- Shipping Width: 3.00 In.
- Series: FAZ
- Shipping Length: 4.00 In.
- Approval: UL 1077
- Type: Current Limiting
- UPC: 015082788524
- Shipping Height: 2.00 In.
- Number of poles Three-pole
- Type UL 1077 Industrial miniature circuit breaker - supplementary protector
- Application Suitable for applications where low levels of inrush current are expected
- Trip Type 3-5X /n
- Amperage Rating 50 A
- Frequency rating 50-60 Hz
- Circuit protection B curve
- Terminals Standard
- Interrupt rating 15 kAIC
- Catalog Notes For applications that require protection due to potential wiring damage at low fault conditions.
- Certifications UL 1077 IEC 60947-2 CSA Std. C22.2 No.235
- Product Height 2.07 in
- Product Weight .8 lb
- Product Name Eaton FAZ supplementary protector
- Warranty 1 year
- Catalog Number FAZ-B50/3
- Product Length/Depth 2.07 in
- EAN 4015082788520
- Product Width 2 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
