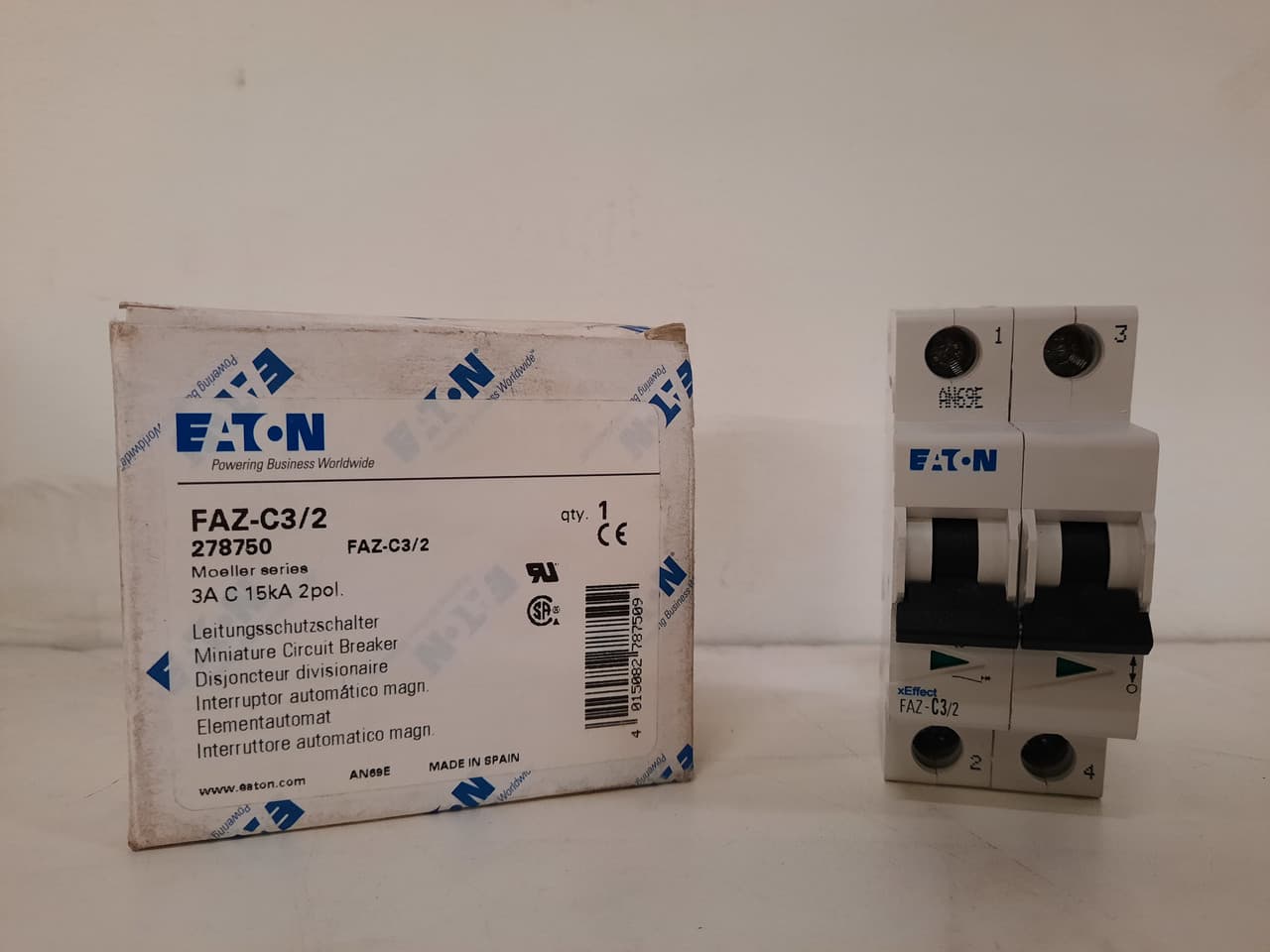

FAZ-C3/2 Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-C3/2
Manufacturer:Eaton
Category:Miniature Circuit Breakers (MCBs)
Product Lifecycle:Active
Product description
Eaton FAZ supplementary protector,UL 1077 Industrial miniature circuit breaker - supplementary protector,Medium levels of inrush current are expected,3 A,15 kAIC,Two-pole,5-10X /n,50-60 Hz,Standard terminals,C Curve
Product Details
- Number of Poles 2 Pole
- Current Rating 3 A
- Trip Curve C
- SCCR 10 kA
- UL Standard 1077
- UL CCN QVNU2
- UL File No. E177451
- Terminal Type Compression
- Product Length/Depth 1.38 in
- Amperage Rating 3 A
- Certifications CSA Std. C22.2 No.235 UL 1077 IEC 60947-2
- Circuit protection C curve
- Product Width 1.5 in
- Application Suitable for applications where medium levels of inrush current are expected
- Catalog Number FAZ-C3/2
- Catalog Notes Positioned for medium inrush startup currents to provide protection for small transformers and pilot devices.
- Product Name Eaton FAZ supplementary protector
- Warranty 1 year
- Frequency rating 50-60 Hz
- Number of poles Two-pole
- Product Weight .53 lb
- Terminals Standard
- Product Height 1.38 in
- Type UL 1077 Industrial miniature circuit breaker - supplementary protector
- EAN 4015082787509
- Interrupt rating 15 kAIC
- Trip Type 5-10X /n
- Trip Setting: 5 to 10 x Rated Current
- Shipping Weight: 0.55
- Terminal Type: Line/Load
- Approval: UL 1077
- Series: FAZ
- Volts: 277/480 VAC
- Shipping Width: 3.00 In.
- Mounting: DIN Rail
- Type: Current Limiting
- Amps: 32 A
- UPC: 015082787503
- Size: 1.4 Inch Width x 2.36 Inch Depth x 3.15 Inch Height
- Shipping Length: 4.00 In.
- Interrupting Rating: 10 kA
- Shipping Height: 2.00 In.
- Poles: 2
- Wire Size: 18 to 4/18 to 8 AWG
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of FAZ-C3/2 on Advantage Electric Supply is $453.04. Order now.
