PDF54M1200E3ZN Eaton Industrial Automation Components
Part#:PDF54M1200E3ZN
Manufacturer:Eaton
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

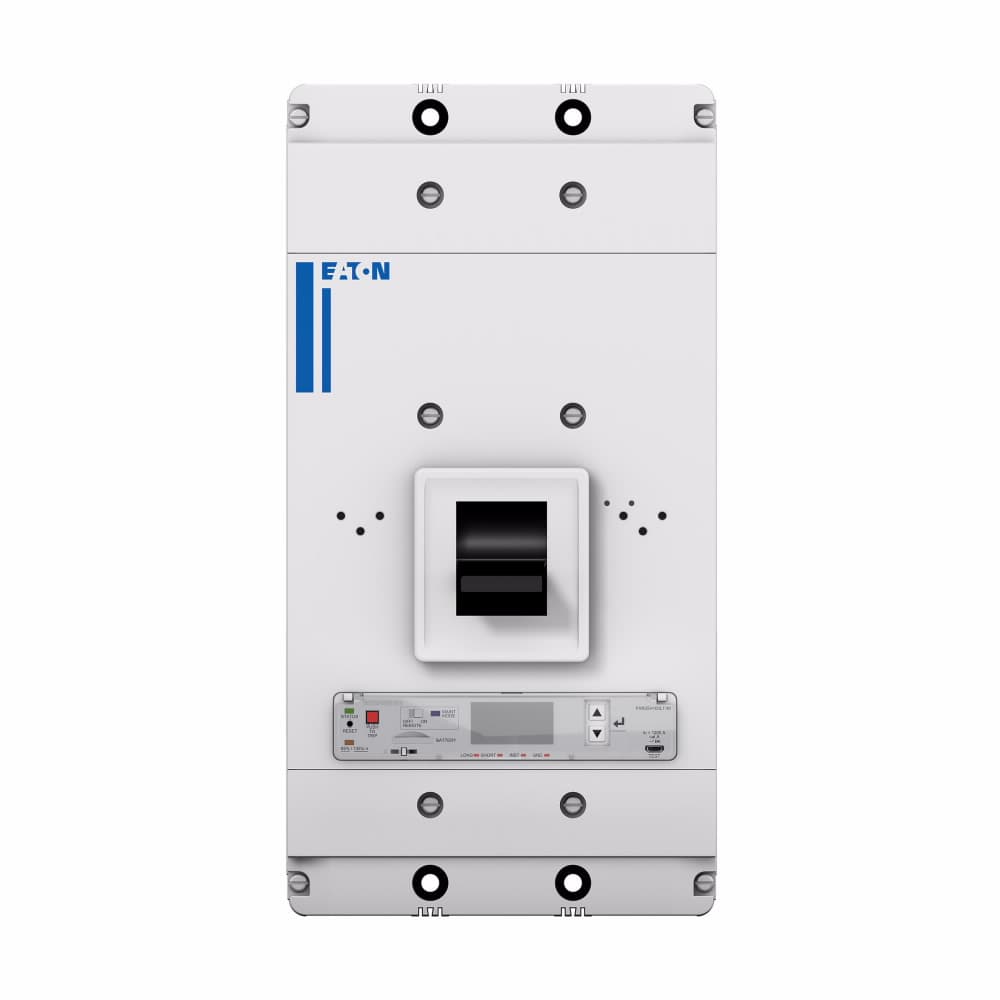

PDF54M1200E3ZN Eaton - Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 5, Four Pole (100% N), 1200A, 65kA/480V, PXR20 LSIG w/ ZSI and Relays, No Terminals
Product Details
- Weight 21.32 kilograms
- Voltage 600 volts
- Length 139.7 millimeters
- Terminal Type No Terminals
- Height 406.4 millimeters
- Interrupt Rating 65 kiloamps
- Circuit Breaker Type PD5 Global
- Amperage 1200 amperes
- Trip Type PXR 20 LSIG
- Protection 100% neutral protection
- Voltage rating 600 Vac
- Terminals No Terminals
- Circuit breaker frame type Complete breaker
- Class Class A
- Switch off technique Electronic
- Interrupt rating range 30 kAIC Icu/ 25 kAIC Ics/ 63 kAIC Icm @525V South Africa (IEC) 50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 35 kAIC @600/347V (UL) 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 100 kAIC @240V (UL) 15 kAIC Icu/ 7.5 kAIC Ics/ 31.5 kAI
- Voltage rating - max 600 V
- Circuit breaker type PD5 Global (100% UL)
- Trip rating 1200 A
- Number of poles Four-pole (100% N)
- Amperage Rating 1200 A
- Rated operation voltage (Ue) at AC - max 690
- Frame 5
- Interrupt rating 65 kAIC at 480 Vac
- Special features ZSI / Relays
- Certifications IEC 60947-2 CCC Marked
- Compliances RoHS Compliant
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Product Weight 21.32 kg
- Product Width 282.7 mm
- Product Height 406.4 mm
- Product Length/Depth 139.7 mm
- UPC 786679283882
- Catalog Number PDF54M1200E3ZN
- Product Name Eaton Power Defense molded case circuit breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
