PDF63M1600E5CM Eaton Industrial Automation Components
Part#:PDF63M1600E5CM
Manufacturer:Eaton
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

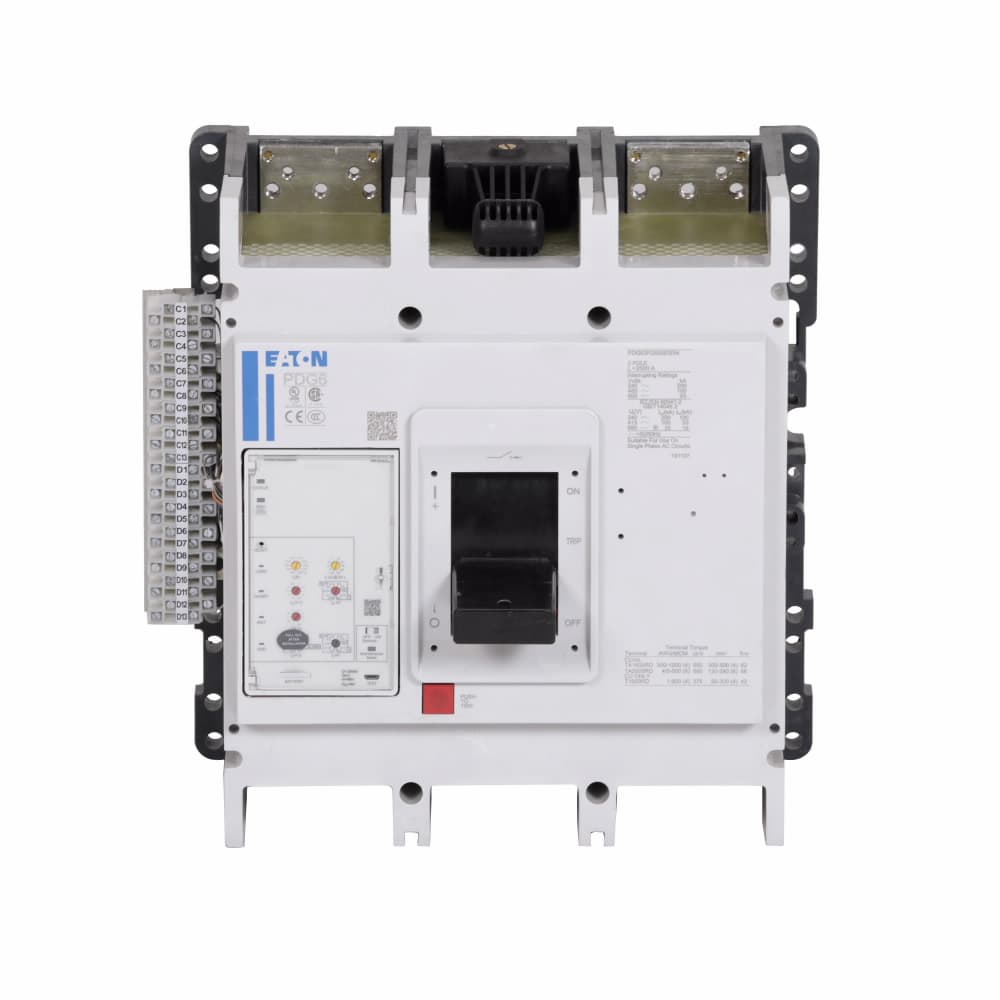

PDF63M1600E5CM Eaton - Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 6, Three Pole, 1600A, 65kA/480V, PXR20 ARMS LSIG w/ CAM Link and Relays, No Terminals (Metric Tapped Conductors)
Product Details
- Compliances RoHS Compliant
- Terminals No Terminals
- Product Length/Depth 247.7 mm
- Amperage Rating 1600 A
- Voltage rating 600 Vac
- Product Width 393.7 mm
- Interrupt rating 65 kAIC at 480 Vac
- Product Weight 77.11 kg
- Rated operation voltage (Ue) at AC - max 690
- Class Class A
- Product Name Eaton Power Defense molded case circuit breaker
- Certifications IEC 60947-2 CCC Marked
- Voltage rating - max 600 V
- Product Height 406.4 mm
- Number of poles Three-pole
- Circuit breaker type PD6 Global (100% UL)
- Catalog Number PDF63M1600E5CM
- Circuit breaker frame type Complete breaker
- Special features CAM / Relays
- Interrupt rating range 30 kAIC Icu/ 25 kAIC Ics/ 63 kAIC Icm @525V South Africa (IEC) 100 kAIC @240V (UL) 70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 65 kAIC @480/277V (UL) 35 kAIC @600/347V (UL) 15 kAIC
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Frame 6
- Communication CAM Link
- UPC 786679924709
- Trip rating 1600 A
- Switch off technique Electronic
- Interrupt Rating 65 kiloamps
- Trip Type PXR 20 LSIG W/ARMS
- Height 406.4 millimeters
- Weight 77.11 kilograms
- Voltage 600 volts
- Length 247.7 millimeters
- Amperage 1600 amperes
- Terminal Type No Terminals
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
