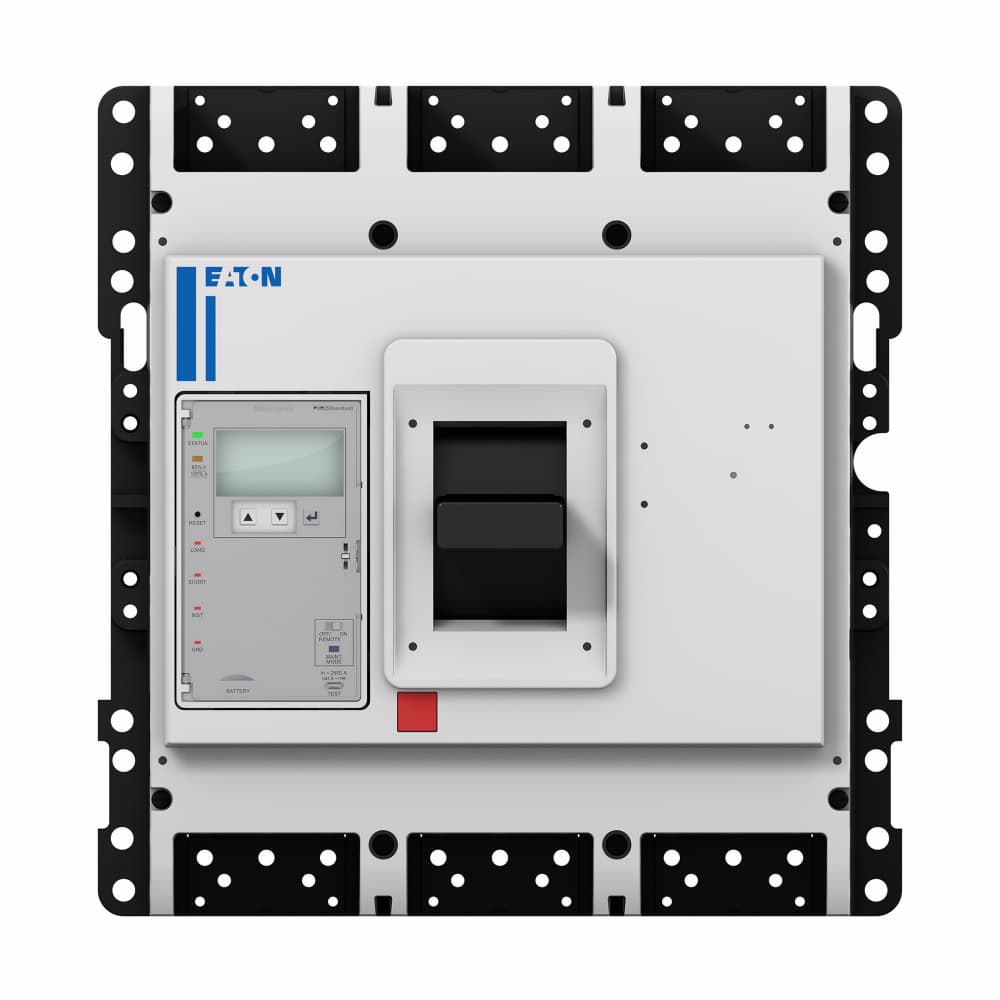

PDF63M2500D5DM Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDF63M2500D5DM
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 6, Three Pole, 2500A, 65kA/480V, PXR20D ARMS LSIG w/ Modbus RTU, CAM Link and Relays, No Terminals (Metric Tapped Conductors)
Product Details
- Terminals No Terminals
- Trip Type PXR 20D LSIG w/ARMS
- Voltage rating 600 Vac
- Communication Modbus RTU and CAM Link
- Circuit breaker frame type Complete breaker
- Class Class A
- Interrupt rating range 15 kAIC Icu/ 7.5 kAIC Ics/ 31.5 kAIC Icm @690V (IEC) 35 kAIC @600/347V (UL) 50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC) 100 kAIC @24
- Switch off technique Electronic
- Circuit breaker type PD6 Global (100% UL)
- Number of poles Three-pole
- Amperage Rating 2500 A
- Voltage rating - max 600 V
- Special features Modbus / Relays / CAM
- Rated operation voltage (Ue) at AC - max 690
- Frame 6
- Interrupt rating 65 kAIC at 480 Vac
- Certifications IEC 60947-2 CCC Marked
- Product Weight 61.23 kg
- Catalog Number PDF63M2500D5DM
- Product Length/Depth 247.65 mm
- UPC 786687038306
- Product Height 393.7 mm
- Compliances RoHS Compliant
- Product Width 393.7 mm
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Product Name Eaton Power Defense molded case circuit breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
