PDF63M2500E5RM Eaton Molded Case Circuit Breakers (MCCB)

PDF63M2500E5RM on Advantage Electric Supply
Eaton

Part#:PDF63M2500E5RM

Manufacturer:Eaton

Category:Molded Case Circuit Breakers (MCCB)

Product Lifecycle:Active

Product description

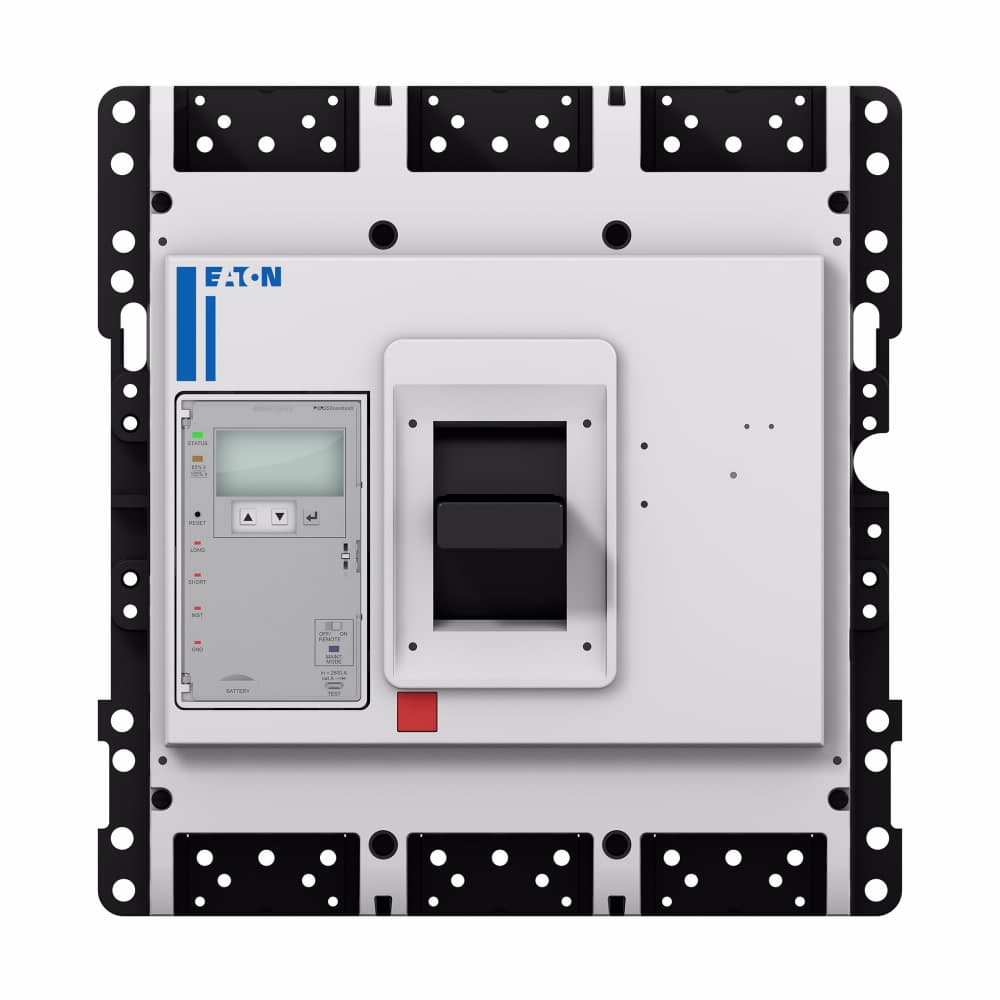

Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 6, Three Pole, 2500A, 65kA/480V, PXR20 ARMS LSIG w/ Relays, No Terminals (Metric Tapped Conductors)

Product Details

  • Product Name
    Eaton Power Defense molded case circuit breaker
  • Special features
    Relays
  • Voltage rating
    600 Vac
  • Product Height
    393.7 mm
  • Rated operation voltage (Ue) at AC - max
    690
  • Switch off technique
    Electronic
  • UPC
    786687038344
  • Frame
    6
  • Terminals
    No Terminals
  • Product Weight
    61.23 kg
  • Trip rating
    2500 A
  • Catalog Number
    PDF63M2500E5RM
  • Voltage rating - max
    600 V
  • Circuit breaker frame type
    Complete breaker
  • Compliances
    RoHS Compliant
  • Number of poles
    Three-pole
  • Product Length/Depth
    247.65 mm
  • Certifications
    CCC Marked IEC 60947-2
  • Interrupt rating range
    50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) 100 kAIC @240V (UL) 50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC) 70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 35 kAIC @600/347V (UL) 15 kAIC Icu/ 7.5 kAIC Ics/ 31.5 kAIC Icm @6
  • Warranty
    Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
  • Circuit breaker type
    PD6 Global (100% UL)
  • Product Width
    393.7 mm
  • Amperage Rating
    2500 A
  • Trip Type
    PXR 20 LSIG w/ARMS
  • Interrupt rating
    65 kAIC at 480 Vac
  • Class
    Class A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


Manufacturer warranty
