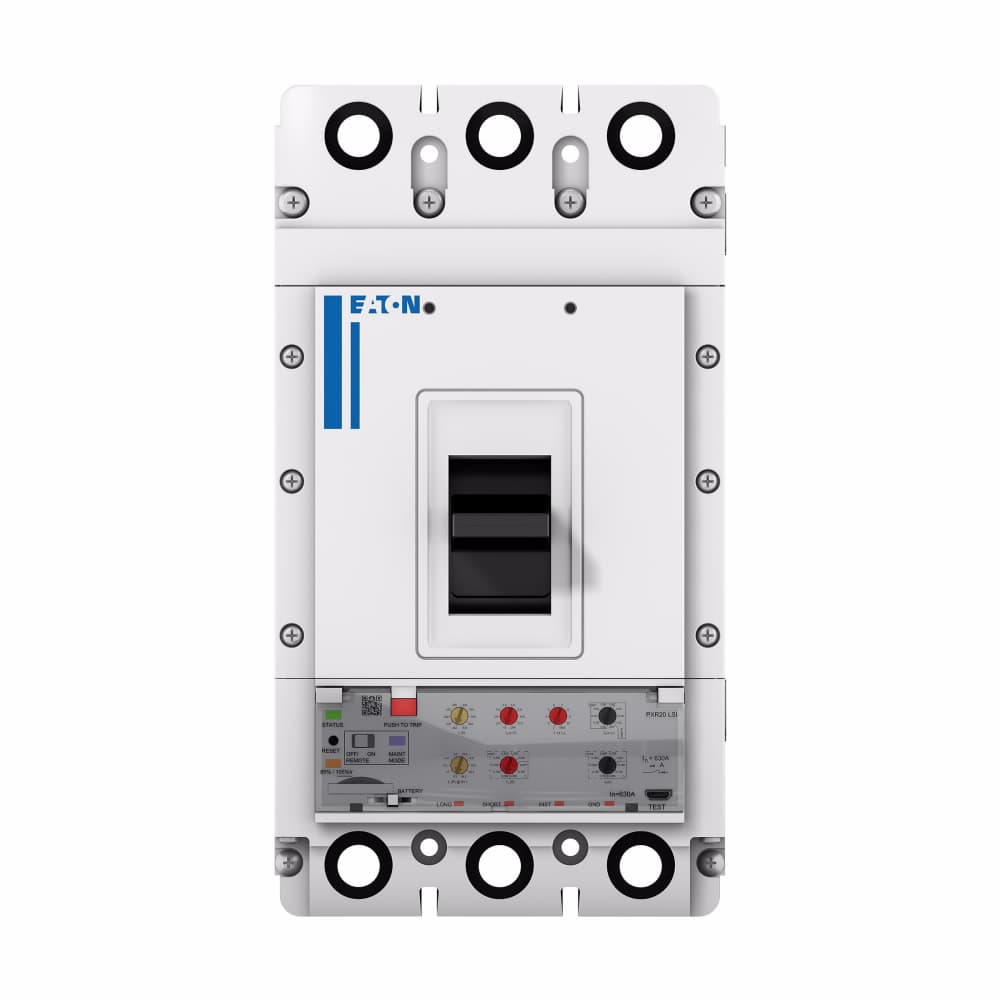

PDG32NH250E4CN Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32NH250E4CN
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A High Override, 85kA/480V, PXR20 ARMS LSI w/ CAM Link and Relays, No Terminals
Product Details
- Voltage rating 600 Vac
- Communication CAM Link
- Trip Type PXR 20 LSI w/ARMS
- Terminals No Terminals
- Circuit breaker frame type Complete breaker
- Number of poles Two-pole
- Amperage Rating 250A High Override
- Trip rating 250 A high override
- Switch off technique Electronic
- Interrupt rating range 150 kAIC Icu/ 100 kAIC Ics/ 330 kAIC Icm @240V (IEC) 35 kAIC Icu/ 25 kAIC Ics/ 73.5 kAIC Icm @525V South Africa (IEC) 85 kAIC @480V (UL) 22 kAIC Icu @250 Vdc 70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @440V (IEC) 70 kAIC Icu/ 70 kAIC Ics/ 154 kAIC Icm @3
- Class Class A
- Special features CAM / Relays
- Circuit breaker type PD3 Global
- Voltage rating - max 600 V
- Rated operation voltage (Ue) at AC - max 600
- Compliances RoHS Compliant
- Frame 3
- Interrupt rating 85 kAIC at 480 Vac
- Certifications UL 489 IEC 60947-2 CSA CCC Marked
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Product Weight 5.2163 kg
- Product Width 138.9 mm
- Product Height 257.1 mm
- Product Length/Depth 109.1 mm
- UPC 786679545577
- Catalog Number PDG32NH250E4CN
- Product Name Eaton Power Defense molded case circuit breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG32NH250E4CN Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDG32NH250E4CN with other Molded Case Circuit Breakers (MCCB) products
Voltage rating
Communication
Trip Type
Terminals
Circuit breaker frame typ...
Number of poles
Amperage Rating
Trip rating
Switch off technique
Interrupt rating range
Selected product
PDG32NH250E4CN
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A High Overri...
Voltage rating600 Vac
CommunicationCAM Link
Trip TypePXR 20 LSI w/ARMS
TerminalsNo Terminals
Circuit breaker frame typeComplete breaker
Number of polesTwo-pole
Amperage Rating250A High Override
Trip rating250 A high override
Switch off techniqueElectronic
Interrupt rating range150 kAIC Icu/ 100 kAIC Ics/ ...
Voltage rating-
Communication-
Trip Type-
Terminals-
Circuit breaker frame type-
Number of poles-
Amperage Rating-
Trip rating-
Switch off technique-
Interrupt rating range-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
