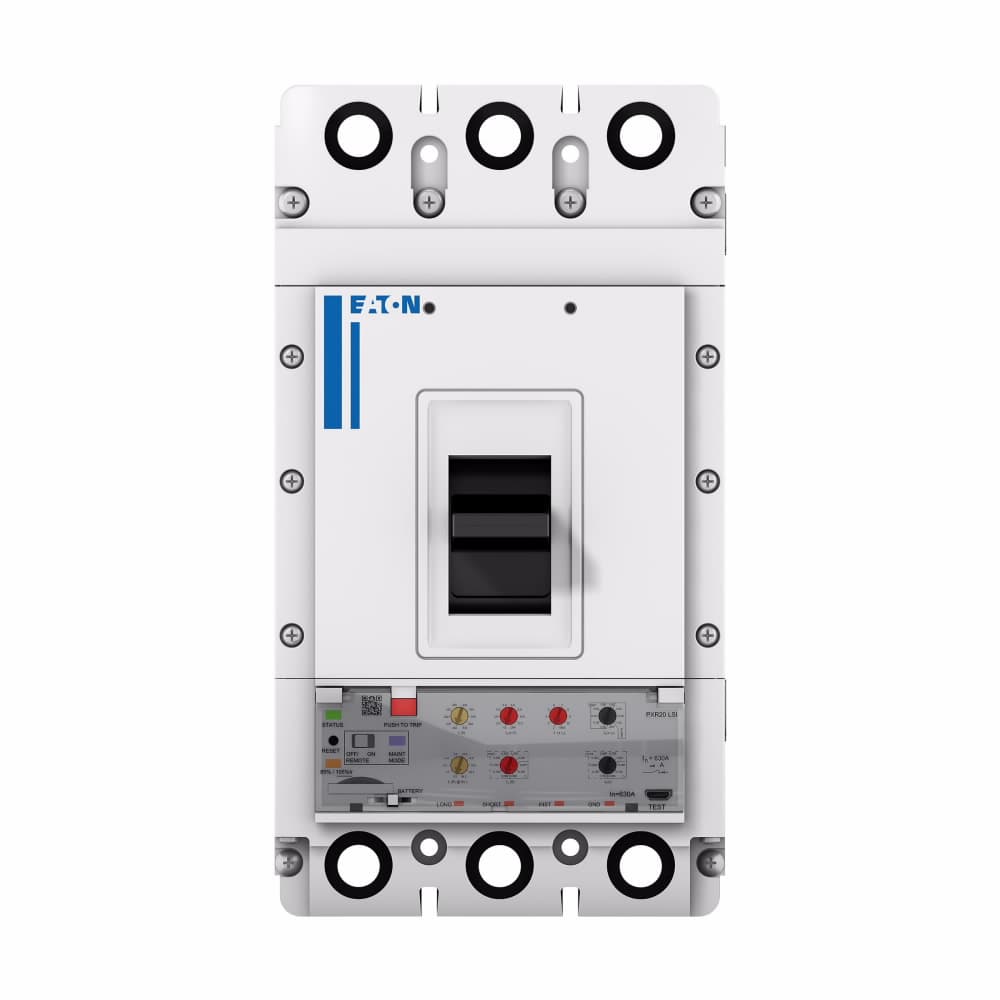

PDG32P0125E4ZJ Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32P0125E4ZJ
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 100kA/480V, PXR20 ARMS LSI w/ ZSI and Relays, Standard Line and Load (PDG3X2TA300)
Product Details
- Trip Type PXR 20 LSI w/ARMS
- Voltage rating 600 Vac
- Terminals Standard Line and Load
- Class Class A
- Circuit breaker frame type Complete breaker
- Switch off technique Electronic
- Interrupt rating range 40 kAIC Icu/ 25 kAIC Ics/ 84 kAIC Icm @525V South Africa (IEC) 200 kAIC @240V (UL) 100 kAIC Icu/ 70 kAIC Ics/ 220 kAIC Icm @380-415V (IEC) 22 kAIC Icu @250 Vdc 85 kAIC Icu/ 40 kAIC Ics/ 187 kAIC Icm @480V Brazil (IEC) 100 kAIC Icu/ 50 kAIC Ics/ 220 k
- Circuit breaker type PD3 Global
- Voltage rating - max 600 V
- Number of poles Two-pole
- Rated operation voltage (Ue) at AC - max 600
- Amperage Rating 125 A
- Trip rating 125 A
- Interrupt rating 100 kAIC at 480 Vac
- Frame 3
- Certifications IEC 60947-2 CSA UL 489 CCC Marked
- Special features ZSI / Relays
- Product Length/Depth 109.1 mm
- Product Height 257.1 mm
- Catalog Number PDG32P0125E4ZJ
- Compliances RoHS Compliant
- Product Weight 5.2163 kg
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Product Width 138.9 mm
- UPC 786679371886
- Product Name Eaton Power Defense molded case circuit breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
