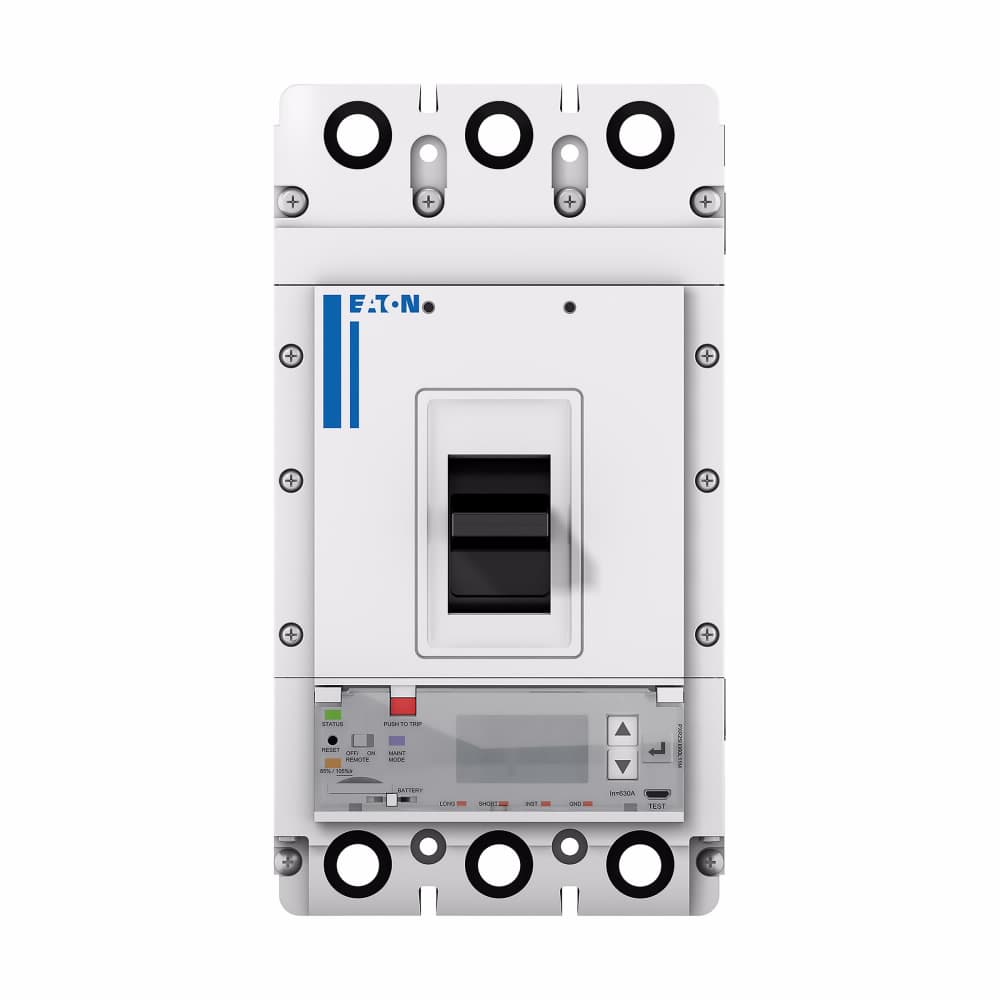

PDG32P0250P5MK Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32P0250P5MK
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 100kA/480V, PXR25 ARMS LSIG w/ Modbus RTU and Relays, Standard Terminals Line Only (PDG3X2TA350)
Product Details
- Trip Type PXR 25 LSIG w/ARMS
- Voltage rating 600 Vac
- Terminals Standard Terminals Line Only
- Class Class A
- Circuit breaker frame type Complete breaker
- Switch off technique Electronic
- Communication Modbus RTU
- Interrupt rating range 200 kAIC @240V (UL) 22 kAIC Icu @250 Vdc 100 kAIC Icu/ 70 kAIC Ics/ 220 kAIC Icm @380-415V (IEC) 200 kAIC Icu/ 150 kAIC Ics/ 440 kAIC Icm @240V (IEC) 100 kAIC @480V (UL) 85 kAIC Icu/ 40 kAIC Ics/ 187 kAIC Icm @480V Brazil (IEC) 20 kAIC Icu/ 10 kAIC
- Circuit breaker type PD3 Global
- Voltage rating - max 600 V
- Number of poles Two-pole
- Rated operation voltage (Ue) at AC - max 600
- Frame 3
- Amperage Rating 250 A
- Interrupt rating 100 kAIC at 480 Vac
- Certifications CCC Marked IEC 60947-2 UL 489 CSA
- Product Weight 5.2163 kg
- Special features Modbus / relays
- Catalog Number PDG32P0250P5MK
- Compliances RoHS Compliant
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Product Width 138.9 mm
- Product Height 257.1 mm
- Product Length/Depth 109.1 mm
- UPC 786679909553
- Product Name Eaton Power Defense molded case circuit breaker
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG32P0250P5MK Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDG32P0250P5MK with other Molded Case Circuit Breakers (MCCB) products
Trip Type
Voltage rating
Terminals
Class
Circuit breaker frame typ...
Switch off technique
Communication
Interrupt rating range
Circuit breaker type
Voltage rating - max
Selected product
PDG32P0250P5MK
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 100kA/480V...
Trip TypePXR 25 LSIG w/ARMS
Voltage rating600 Vac
TerminalsStandard Terminals Line Only
ClassClass A
Circuit breaker frame typeComplete breaker
Switch off techniqueElectronic
CommunicationModbus RTU
Interrupt rating range200 kAIC @240V (UL) 22 kAIC...
Circuit breaker typePD3 Global
Voltage rating - max600 V
Trip Type-
Voltage rating-
Terminals-
Class-
Circuit breaker frame type-
Switch off technique-
Communication-
Interrupt rating range-
Circuit breaker type-
Voltage rating - max-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 250A, 100kA/480V, PXR25 ARMS LSIG w/ Modbus RTU and Relays, Standard Terminals Line Only (PDG3X2TA350)
