39.01.0.024.0060 Finder Control Relays

39.01.0.024.0060 on Advantage Electric Supply
Finder

Part#:39.01.0.024.0060

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 39.01.0.024.0060 is a relay with a spring / push-in connection type, designed to handle rated currents of 6A at 250Vac (AC-1), 6A at 30Vdc (DC-1), 0.2A at 110Vdc (DC-1), and 0.12A at 220Vdc (DC-1) with Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw) and can function within an ambient air temperature range specified for operation at 300VA (230Vac, AC-15) and for storage at 1500VA (250Vac, AC-1). The relay's net width is 24Vdc, and it supports a voltage of 250Vac with a net depth of 6 kV. It has a control voltage (AC) of 6.2 mm and is designed for mounting on a DIN rail or as a plug-in unit. The relay features 1 pole(s), a power consumption of 24Vac (50Hz/60Hz), and is colored for DIN rail mounting. It is classified under the MasterBASIC series, with protected poles according to EN61984, and has mechanical durability at no load with AgNi (Silver Nickel) contacts.

Product Details

  • Connection type
    Spring / Push-in
  • Compliant with standard(s)
    cURus RINA CSA VDE EAC CE EN 60664-1 EN 60715 EN 61984
  • Rated impulse voltage (Uimp)
    6 kV
  • Product series / family name
    39 series
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    1 Pole(s)
  • Contents
    (Socket) 93.60.7.024 (Relay) 34.51.7.024.0010
  • Primary brand
    Finder
  • Rated power
    300VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Mounting mode
    DIN rail Plug-in
  • Mounting location
    EN61984
  • Sub-range name
    MasterBASIC
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Net Width (mm)
    6.2 mm
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Control Voltage (DC)
    24Vdc
  • Contacts coating
    AgNi (Silver Nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

39.01.0.024.0060 Related Documents

Finder - 39 Series - Catalogue.pdf

Similar products from: Finder Control Relays

56.32.8.024.0000 on Advantage Electric Supply

56.32.8.024.0000

Finder

Finder 56.32.8.024.0000 is a relay with a connection type of Fast-on 187, designed to handle rated currents of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower currents of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is rated for ambient air temperatures between -40 and +70 degrees Celsius for operation, and has a control voltage (AC) of 24Vac (50Hz/60Hz). The relay features a protection function of 250Vac and a control voltage (AC) of 4 kV. It is designed for a rated active power of 2 poles, with a plug-in design for residual current sensitivity. The relay is capable of 100,000 operations for Normally Closed (NC) circuits and has a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

3 in stock
55.34.9.024.5080 on Advantage Electric Supply

55.34.9.024.5080

Finder

Finder 55.34.9.024.5080 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), and is rated for ambient air temperatures between -40 and +85 degrees Celsius for operation, and has a rated voltage for AC operations. The relay supports a control voltage (AC) of 4 kV, mounts with a net depth of 37.2 mm, and has a rated active power for 4 poles. Its power consumption is specified, with a plug-in mounting mode, and it utilizes a diode for its cross-section. The relay is designed for up to 150,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contacts are made of AgNi+Au (Gold plated silver-nickel), indicating the materials used for enhanced conductivity and durability.

10 in stock
55.33.9.024.0010 on Advantage Electric Supply

55.33.9.024.0010

Finder

Finder 55.33.9.024.0010 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and is specified for 500VA at 230Vac and 2500VA at 250Vac in terms of rated active power. The rated voltage for AC operations is 250Vac, with a control voltage tolerance of 4 kV. This relay features a net depth of 37.2 mm, a mounting mode width of 27.7 mm, and a power consumption depth of 20.7 mm. It is designed for plug-in mounting, supports up to 200,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

20 in stock
55.32.9.024.0070 on Advantage Electric Supply

55.32.9.024.0070

Finder

Finder 55.32.9.024.0070 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and storage. The relay supports a rated voltage of 250Vac, with a control voltage of 4 kV, and is designed for plug-in mounting. It has a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, and a power consumption depth of 20.7 mm. The relay is rated for 200,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

15 in stock
55.32.8.024.0000 on Advantage Electric Supply

55.32.8.024.0000

Finder

Finder 55.32.8.024.0000 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), with an ambient air temperature for operation at 500VA (230Vac) and for storage at 2500VA (250Vac). The rated voltage for AC operation is specified with a wide ambient temperature range of -40 to +85 degrees Celsius. It features a communication protocol of type C, protection functions rated at 250Vac, and a net depth of 37.2 mm. The control voltage (AC) withstands up to 4 kV, with mounting dimensions of 27.7 mm by 20.7 mm, and a color code for 24Vac (50Hz/60Hz) supply. The relay is designed for plug-in mounting, has 2 poles, and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

1 in stock
56.34.9.024.0000 on Advantage Electric Supply

56.34.9.024.0000

Finder

Finder 56.34.9.024.0000 is a relay with a connection type of Fast-on 187, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), operates within an ambient air temperature range of -40 to +70 degrees Celsius for both operation and storage, and has a rated voltage of 24Vdc. The relay is equipped with protection functions rated at 250Vac, a control voltage (AC) of 4 kV, and a rated active power of 4 poles. It features a plug-in design for residual current sensitivity, is capable of 100,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contacts are made of AgNi (Silver Nickel), ensuring compatibility with various applications.

4 in stock

Manufacturer warranty

39.01.0.024.0060 Finder

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 39.01.0.024.0060 with other Control Relays products

Connection type

Compliant with standard(s...

Rated impulse voltage (Ui...

Product series / family n...

Rated current

Poles

Contents

Primary brand

Rated power

Mounting mode

Selected product

39.01.0.024.0060
Backordered
39.01.0.024.0060
Finder

Finder 39.01.0.024.0060 is a relay with a spring / push-in connection type, designed to handle rated...

Connection typeSpring / Push-in

Compliant with standard(s)cURus RINA CSA VDE EAC CE EN...

Rated impulse voltage (Uimp)6 kV

Product series / family name39 series

Rated current6A (250Vac; AC-1) 6A (30Vdc;...

Poles1 Pole(s)

Contents(Socket) 93.60.7.024 (Relay)...

Primary brandFinder

Rated power300VA (230Vac; AC-15) 1500VA...

Mounting modeDIN rail Plug-in

38.51.0.024.0060
10 in stock
38.51.0.024.0060
Finder

Finder 38.51.0.024.0060 is a relay designed for various applications, featuring a box-clamp connecti...

Connection typeBox-clamp

Compliant with standard(s)-

Rated impulse voltage (Uimp)-

Product series / family name38 series

Rated current6A (250Vac; AC-1) 6A (30Vdc;...

Poles1 Pole(s)

Contents-

Primary brandFinder

Rated power300VA (230Vac; AC-15) 1500VA...

Mounting modeDIN rail Plug-in

38.21.0.024.0060
6 in stock
38.21.0.024.0060
Finder

Finder 38.21.0.024.0060 is a relay with a box-clamp connection type, designed for a rated current of...

Connection typeBox-clamp

Compliant with standard(s)-

Rated impulse voltage (Uimp)-

Product series / family name38 series

Rated current6A (250Vac; AC-1) 6A (30Vdc;...

Poles1 Pole(s)

Contents-

Primary brandFinder

Rated power1500VA (250Vac; AC-1)

Mounting modeDIN rail Plug-in

About the manufacturer

Finder

Advantage Electric Supply is an authorized Finder distributor, proud to partner with a renowned manufacturer that specializes in providing innovative and high-quality industrial automation and electromechanical products. Finder has carved its niche in the industry by offering an extensive range of reliable components designed to meet diverse automation and electrical control needs. With over 65 ye...

Recently viewed products

Relevant products

39.01.0.125.0060 on Advantage Electric Supply

39.01.0.125.0060

Verified stock: 0

Finder 39.01.0.125.0060 is a relay with a spring / push-in connection type, designed for a rated current of 6A at 250Vac (AC-1) and 6A at 30Vdc (DC-1), with lower currents of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), suitable for ambient air temperatures during operation of 300VA at 230Vac and for storage at AC-15 with 1500VA at 250Vac (AC-1). The net width and depth are specified as 125Vdc and 6 kV, respectively, with a control voltage (AC) of 6.2 mm. It supports mounting on a DIN rail or as a plug-in unit, with a power consumption at 125Vac (50Hz/60Hz). The relay is designed for 1 Pole(s) with a color indicating its mounting mode. It has an electrical durability classified as MasterBASIC and protected poles according to EN61984, with mechanical durability at no load featuring AgNi (Silver Nickel) contacts.

Finder

39.01.0.024.0073 on Advantage Electric Supply

39.01.0.024.0073

Verified stock: 0

Finder 39.01.0.024.0073 is a relay with a spring / push-in connection type, designed to handle rated currents of 6A at 250Vac (AC-1) and 6A at 30Vdc (DC-1), with lower currents of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 24Vdc and is capable of switching up to 300VA at 230Vac (AC-15) and 1500VA at 250Vac (AC-1) with a control voltage of 24Vac (50Hz/60Hz). The relay features a single pole double throw (SPDT) configuration, suitable for ambient air temperatures during operation and has a net width of 6.2 mm and a net depth allowing for a 6 kV rating. It is designed for DIN rail or plug-in mounting, classified under the MasterBASIC series, and meets EN61984 standards for protected poles. The relay's contacts are made of AgNi (Silver Nickel), ensuring compatibility with a wide range of applications.

Finder

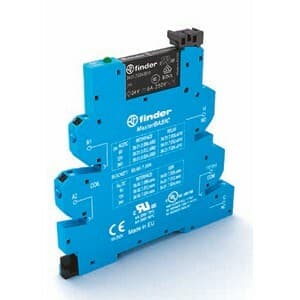

39.01.0.006.0060 on Advantage Electric Supply
