46.52.9.024.5074 Finder Control Relays

46.52.9.024.5074 on Advantage Electric Supply
Finder

Part#:46.52.9.024.5074

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Miniature industrial electromechanical relay with LED + mechanical indicators + lockable test button + diode suppressor - Finder (46 series) - Control coil voltage 24Vdc - 2 poles (2P) - 2C/O / DPDT (Double Pole Double Throw) contact - Rated current 8A (2

Product Details

  • Product series / family name
    46 series
  • Connection type
    Solder pin
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Electrical durability (with load)
    100 000 operations
  • Degree of pollution
    3
  • Primary brand
    Finder
  • Rated current
    8A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.15A (220Vdc; DC-1)
  • Poles
    2 Pole(s)
  • Ambient air temperature for operation
    -40...+70 °C
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 60664-1 EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Height (mm)
    39.3 mm
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Control Voltage (DC)
    24Vdc
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Net Depth (mm)
    12.4 mm
  • Rated power
    350VA (230Vac; AC-15) 2000VA (250Vac; AC-1) 0.5W
  • Power consumption
    0.5 W
  • Rated impulse voltage (Uimp)
    6 kV
  • Mounting mode
    Plug-in
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Width (mm)
    29 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

46.52.9.024.5074 Related Documents

Finder - 46 Series - Catalogue.pdf

Similar products from: Finder Control Relays

56.32.8.024.0000 on Advantage Electric Supply

56.32.8.024.0000

Finder

Finder 56.32.8.024.0000 is a relay with a connection type of Fast-on 187, designed to handle rated currents of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower currents of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is rated for ambient air temperatures between -40 and +70 degrees Celsius for operation, and has a control voltage (AC) of 24Vac (50Hz/60Hz). The relay features a protection function of 250Vac and a control voltage (AC) of 4 kV. It is designed for a rated active power of 2 poles, with a plug-in design for residual current sensitivity. The relay is capable of 100,000 operations for Normally Closed (NC) circuits and has a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

3 in stock
55.34.9.024.5080 on Advantage Electric Supply

55.34.9.024.5080

Finder

Finder 55.34.9.024.5080 is a relay with a solder pin connection type, designed for a rated current of 7A at 250Vac (AC-1) and 7A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), and is rated for ambient air temperatures between -40 and +85 degrees Celsius for operation, and has a rated voltage for AC operations. The relay supports a control voltage (AC) of 4 kV, mounts with a net depth of 37.2 mm, and has a rated active power for 4 poles. Its power consumption is specified, with a plug-in mounting mode, and it utilizes a diode for its cross-section. The relay is designed for up to 150,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contacts are made of AgNi+Au (Gold plated silver-nickel), indicating the materials used for enhanced conductivity and durability.

10 in stock
55.33.9.024.0010 on Advantage Electric Supply

55.33.9.024.0010

Finder

Finder 55.33.9.024.0010 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 3C/O or 3PDT (3 Pole Double Throw), capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and is specified for 500VA at 230Vac and 2500VA at 250Vac in terms of rated active power. The rated voltage for AC operations is 250Vac, with a control voltage tolerance of 4 kV. This relay features a net depth of 37.2 mm, a mounting mode width of 27.7 mm, and a power consumption depth of 20.7 mm. It is designed for plug-in mounting, supports up to 200,000 operations for Normally Closed (NC) circuits, and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

20 in stock
55.32.9.024.0070 on Advantage Electric Supply

55.32.9.024.0070

Finder

Finder 55.32.9.024.0070 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and storage. The relay supports a rated voltage of 250Vac, with a control voltage of 4 kV, and is designed for plug-in mounting. It has a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, and a power consumption depth of 20.7 mm. The relay is rated for 200,000 operations for Normally Closed (NC) circuits and has a durability of 50,000,000 operations. The contact material is AgNi (Silver Nickel).

15 in stock
55.32.8.024.0000 on Advantage Electric Supply

55.32.8.024.0000

Finder

Finder 55.32.8.024.0000 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 2C/O / DPDT (Double Pole Double Throw), with an ambient air temperature for operation at 500VA (230Vac) and for storage at 2500VA (250Vac). The rated voltage for AC operation is specified with a wide ambient temperature range of -40 to +85 degrees Celsius. It features a communication protocol of type C, protection functions rated at 250Vac, and a net depth of 37.2 mm. The control voltage (AC) withstands up to 4 kV, with mounting dimensions of 27.7 mm by 20.7 mm, and a color code for 24Vac (50Hz/60Hz) supply. The relay is designed for plug-in mounting, has 2 poles, and is capable of 200,000 operations for Normally Closed (NC) circuits, with a durability of 20,000,000 operations. The contact material is AgNi (Silver Nickel).

1 in stock
40.52.7.024.0000 on Advantage Electric Supply

40.52.7.024.0000

Finder

Finder 40.52.7.024.0000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +85 degrees Celsius for both operation and storage. This relay has a rated voltage of 250Vac, a control voltage of 6 kV, and is designed for PCB or plug-in mounting. It features a net width of 29 mm, a net depth of 25 mm, and a power consumption of 0.5 W. The visual position indicator has a 5.3mm pins pitch, and the relay is capable of 100,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The relay's poles are rated for 24Vdc, with a protection function of 250Vac, and it has a response time of 0.5 W.

4 in stock

Manufacturer warranty

46.52.9.024.5074 Finder

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 46.52.9.024.5074 with other Control Relays products

Product series / family n...

Connection type

Contacts type

Electrical durability (wi...

Degree of pollution

Primary brand

Rated current

Poles

Ambient air temperature f...

Compliant with standard(s...

Selected product

46.52.9.024.5074
Backordered
46.52.9.024.5074
Finder

Miniature industrial electromechanical relay with LED + mechanical indicators + lockable test button...

Product series / family name46 series

Connection typeSolder pin

Contacts type2C/O / DPDT (Double Pole Dou...

Electrical durability (with load)100 000 operations

Degree of pollution3

Primary brandFinder

Rated current8A (250Vac; AC-1) 6A (30Vdc;...

Poles2 Pole(s)

Ambient air temperature for operation-40...+70 °C

Compliant with standard(s)ANCE cURus Lloyd Register (L...

46.52.9.024.0040
8 in stock
46.52.9.024.0040
Finder

Finder 46.52.9.024.0040 is a relay with solder pin connection type, designed for various rated curre...

Product series / family name46 series

Connection typeSolder pin

Contacts type2C/O / DPDT (Double Pole Dou...

Electrical durability (with load)-

Degree of pollution-

Primary brandFinder

Rated current8A (250Vac; AC-1) 6A (30Vdc;...

Poles2 Pole(s)

Ambient air temperature for operation-40...+70 °C

Compliant with standard(s)-

46.52.9.012.0040
1 in stock
46.52.9.012.0040
Finder

Finder 46.52.9.012.0040 is a relay with solder pin connection type, designed for a variety of applic...

Product series / family name46 series

Connection typeSolder pin

Contacts type2C/O / DPDT (Double Pole Dou...

Electrical durability (with load)-

Degree of pollution-

Primary brandFinder

Rated current8A (250Vac; AC-1) 6A (30Vdc;...

Poles2 Pole(s)

Ambient air temperature for operation-40...+70 °C

Compliant with standard(s)-

About the manufacturer

Finder

Advantage Electric Supply is an authorized Finder distributor, proud to partner with a renowned manufacturer that specializes in providing innovative and high-quality industrial automation and electromechanical products. Finder has carved its niche in the industry by offering an extensive range of reliable components designed to meet diverse automation and electrical control needs. With over 65 ye...

Recently viewed products

Relevant products

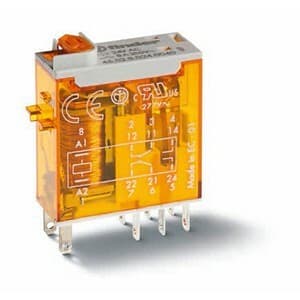

46.52.9.024.0040 on Advantage Electric Supply
