GG714S ifm Electronic Electronic Components
Part#:GG714S
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

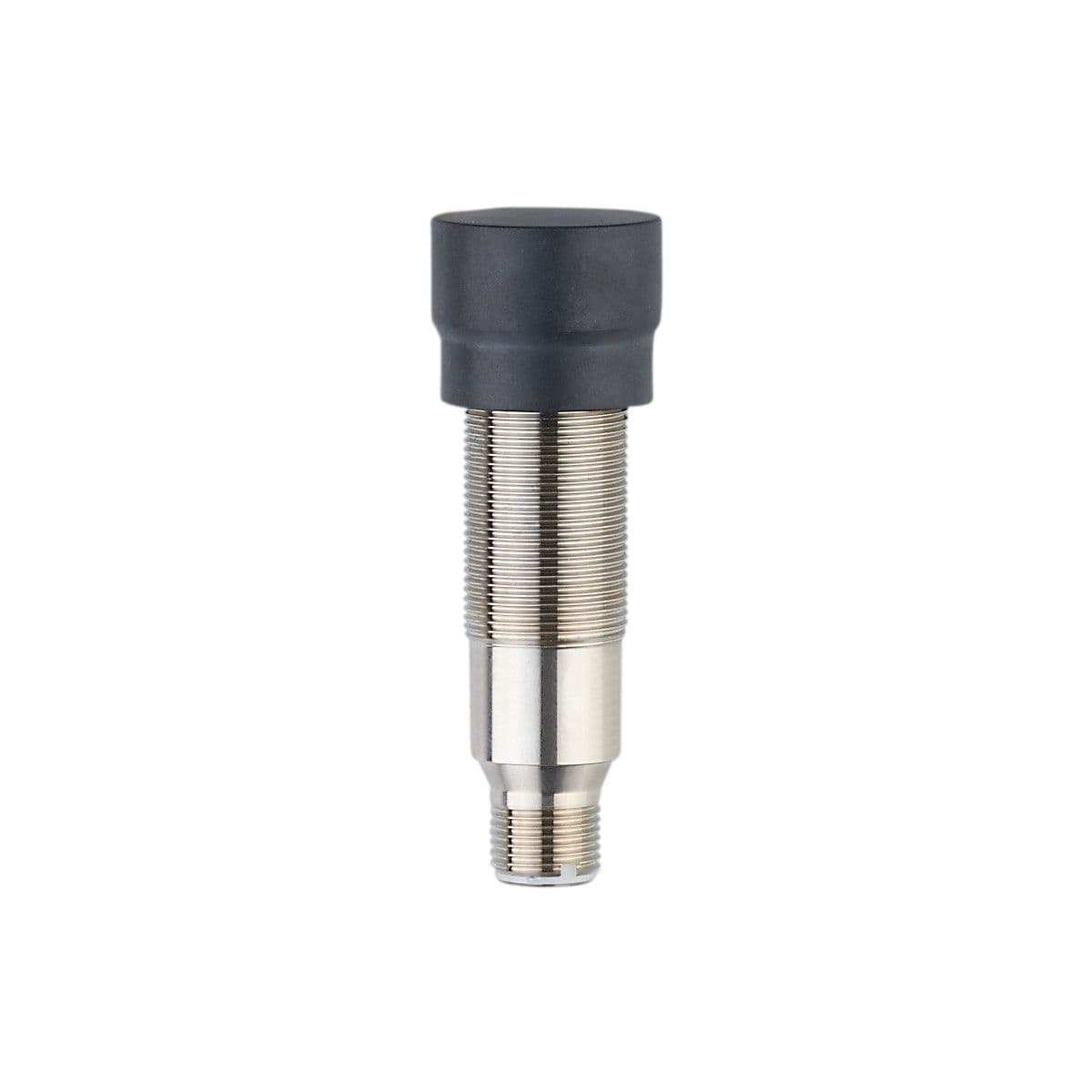

Fail-safe inductive sensor, For ensuring machine safety, Electrical design: PNP, Output function: 2 x OSSD (A1 and A2), Enable zone [mm]: 0...6.5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 71.5, System: gold-plated contacts, Type of operation
Product Details
- Overload protection no
- Housing Threaded type
- Application Industrial applications
- Reverse polarity protection yes
- Max. capacitive load CL_max [nF] 20
- Enable zone [mm] 0...6.5
- Max. power-on delay time [ms] 1000
- Short-circuit protection yes
- Type of operation continuous operation (maintenance-free)
- Protection class III
- Output data Interface type C class 1
- Safety-related function safe state when undamped
- Output function 2 x OSSD (A1 and A2)
- Output voltage at 24 V compatible with EN 61131-2 inputs type 1, 2
- Dimensions [mm] M18 x 1 / L = 71.5
- Operating voltage [V] 19.2...30 DC
- Max. voltage drop switching output DC [V] 2.5; (30 mA)
- Current consumption [mA] < 30
- Electrical design PNP
- System gold-plated contacts
- Rated insulation voltage [V] 30
- Permanent current rating of switching output DC [mA] 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
