IA5050 ifm Electronic Electronic Components
Part#:IA5050
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

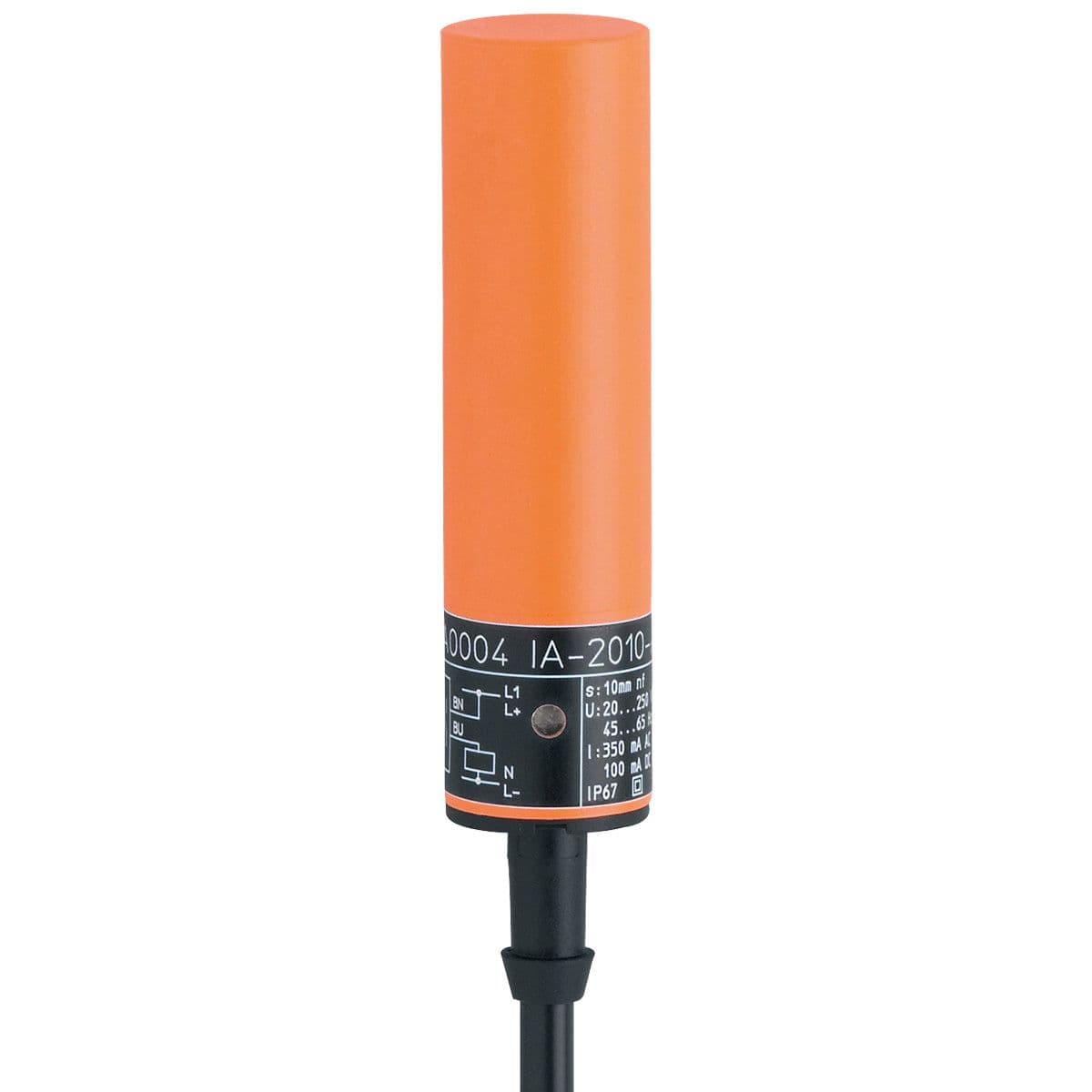

Inductive sensor, For applications with aggressive media, Electrical design: PNP, Output function: normally closed, Sensing range [mm]: 10, Housing: tubular, Dimensions [mm]: Ø 20 / L = 77
Product Details
- Sensing range [mm] 10
- Protection class II
- Output function normally closed
- Current consumption [mA] 15; (24 V)
- Dimensions [mm] Ø 20 / L = 77
- Reverse polarity protection yes
- Short-circuit protection yes
- Operating voltage [V] 10...36 DC
- Switching frequency DC [Hz] 300
- Housing tubular
- Overload protection yes
- Electrical design PNP
- Max. voltage drop switching output DC [V] 2.5
- Type of short-circuit protection yes (non-latching)
- Permanent current rating of switching output DC [mA] 250
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
