IA5083 ifm Electronic Electronic Components

Name: IA5083
Brand: ifm Electronic

Part#:IA5083

Category:Electronic Components

Product Lifecycle:Active

Product description

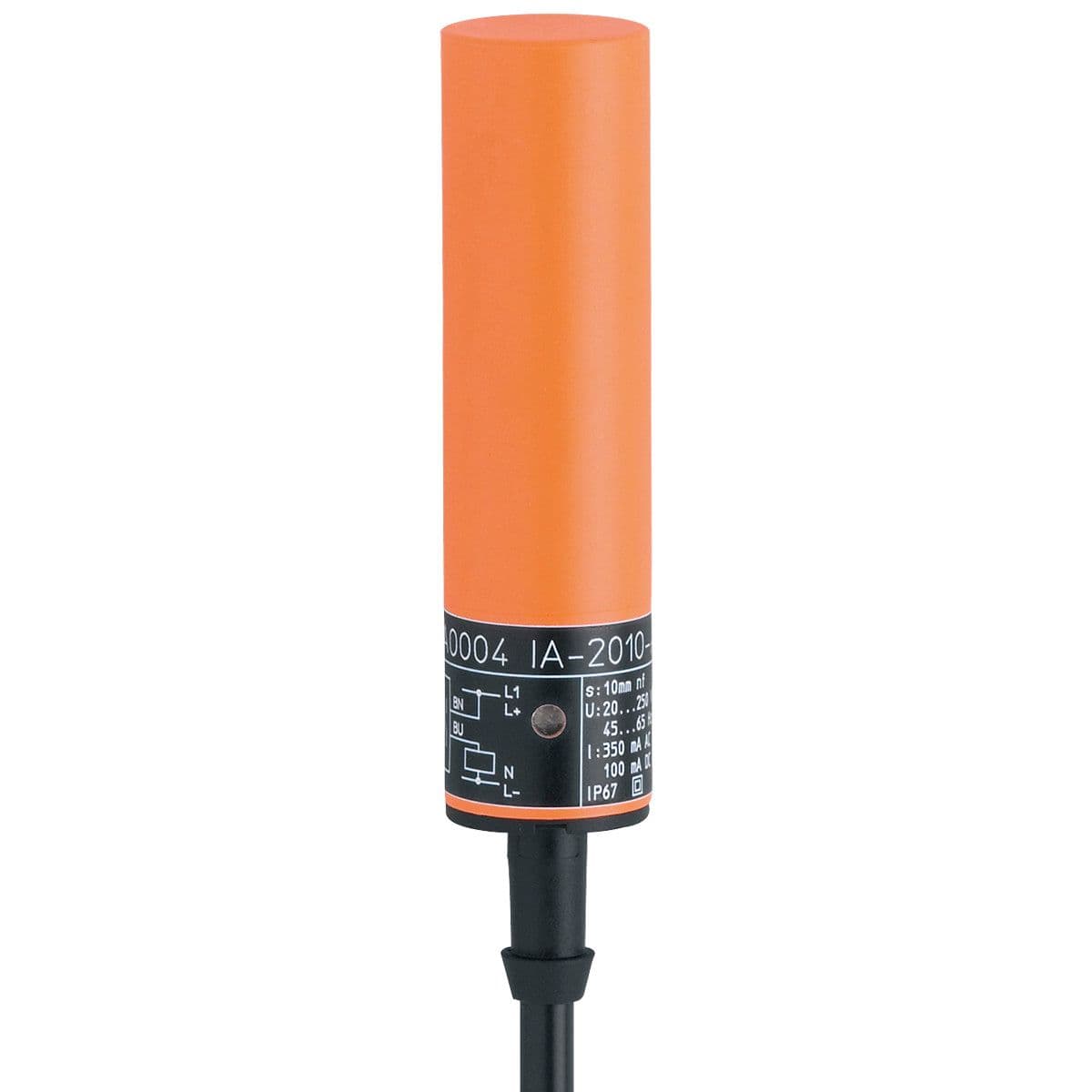

Inductive sensor, For applications with aggressive media, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 10, Housing: tubular, Dimensions [mm]: Ø 20 / L = 77

Product Details

Operating voltage [V]
10...36 DC
Short-circuit protection
yes
Current consumption [mA]
15; (24 V)
Permanent current rating of switching output DC [mA]
250
Output function
normally open
Reverse polarity protection
yes
Overload protection
yes
Dimensions [mm]
Ø 20 / L = 77
Max. voltage drop switching output DC [V]
2.5
Housing
tubular
Sensing range [mm]
10
Switching frequency DC [Hz]
300
Protection class
II
Type of short-circuit protection
yes (non-latching)
Electrical design
PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IA5083 Related Documents

PDF data sheet-1631071577144.pdf CAD_SAT_100_0005.ZIP-1631071577137.zip CAD_DWG_100_0005.ZIP-1631071577142.zip CAD_STP_100_0005.ZIP-1631071577139.zip CAD_DXF_100_0005.ZIP-1631071577148.zip
