IA5106 ifm Electronic Electronic Components

Name: IA5106
Brand: ifm Electronic

Part#:IA5106

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

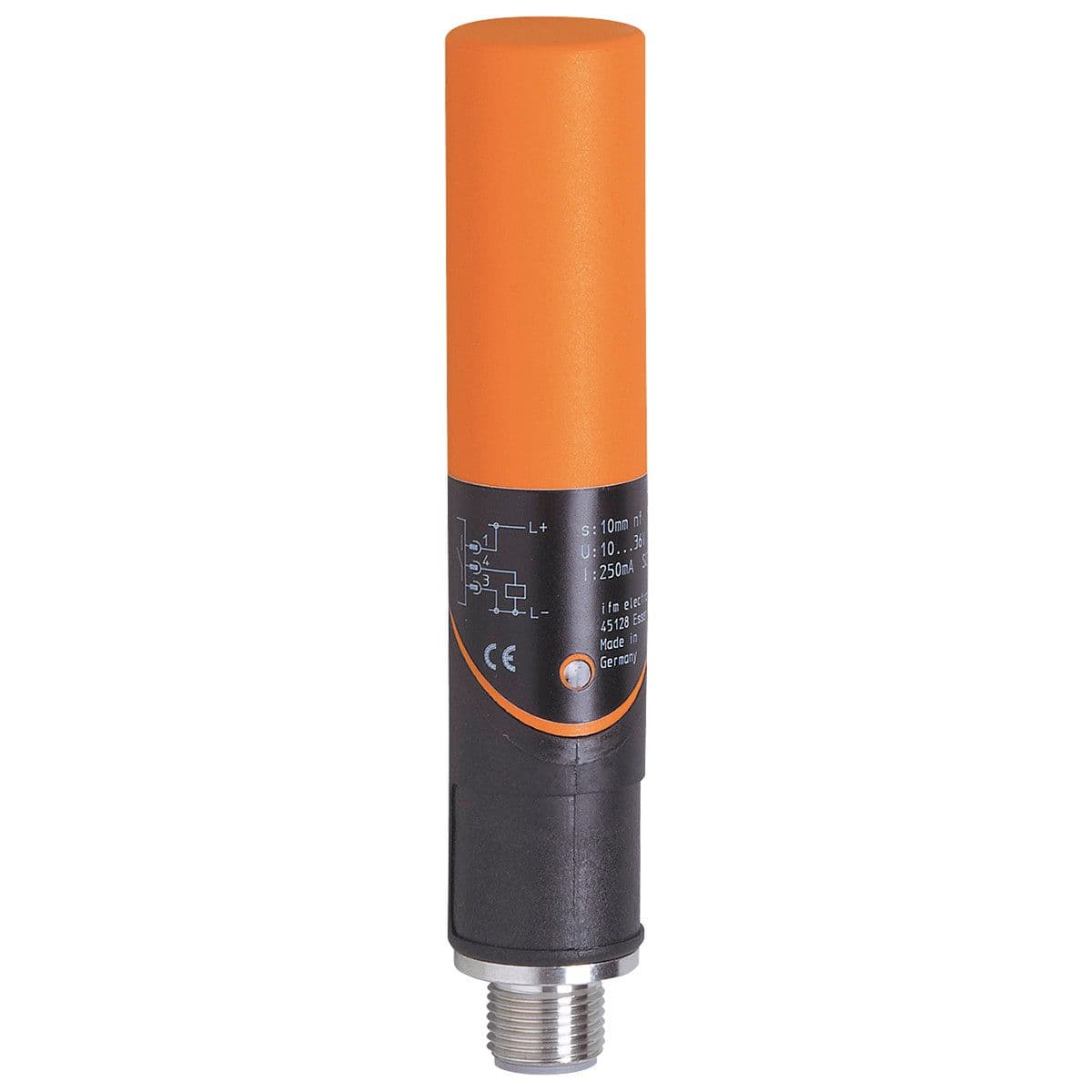

Inductive sensor, Smooth plastic housing to protect against deposits, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 10, Housing: tubular, Dimensions [mm]: Ø 20 / L = 94.5

Product Details

Output function
normally open
Operating voltage [V]
10...36 DC
Switching frequency DC [Hz]
300
Overload protection
yes
Dimensions [mm]
Ø 20 / L = 94.5
Housing
tubular
Max. voltage drop switching output DC [V]
2.5
Current consumption [mA]
15; (24 V)
Permanent current rating of switching output DC [mA]
250
Reverse polarity protection
yes
Type of short-circuit protection
yes (non-latching)
Electrical design
PNP
Sensing range [mm]
10
Short-circuit protection
yes
Protection class
III

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
