IA5110 ifm Electronic Electronic Components
Part#:IA5110
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

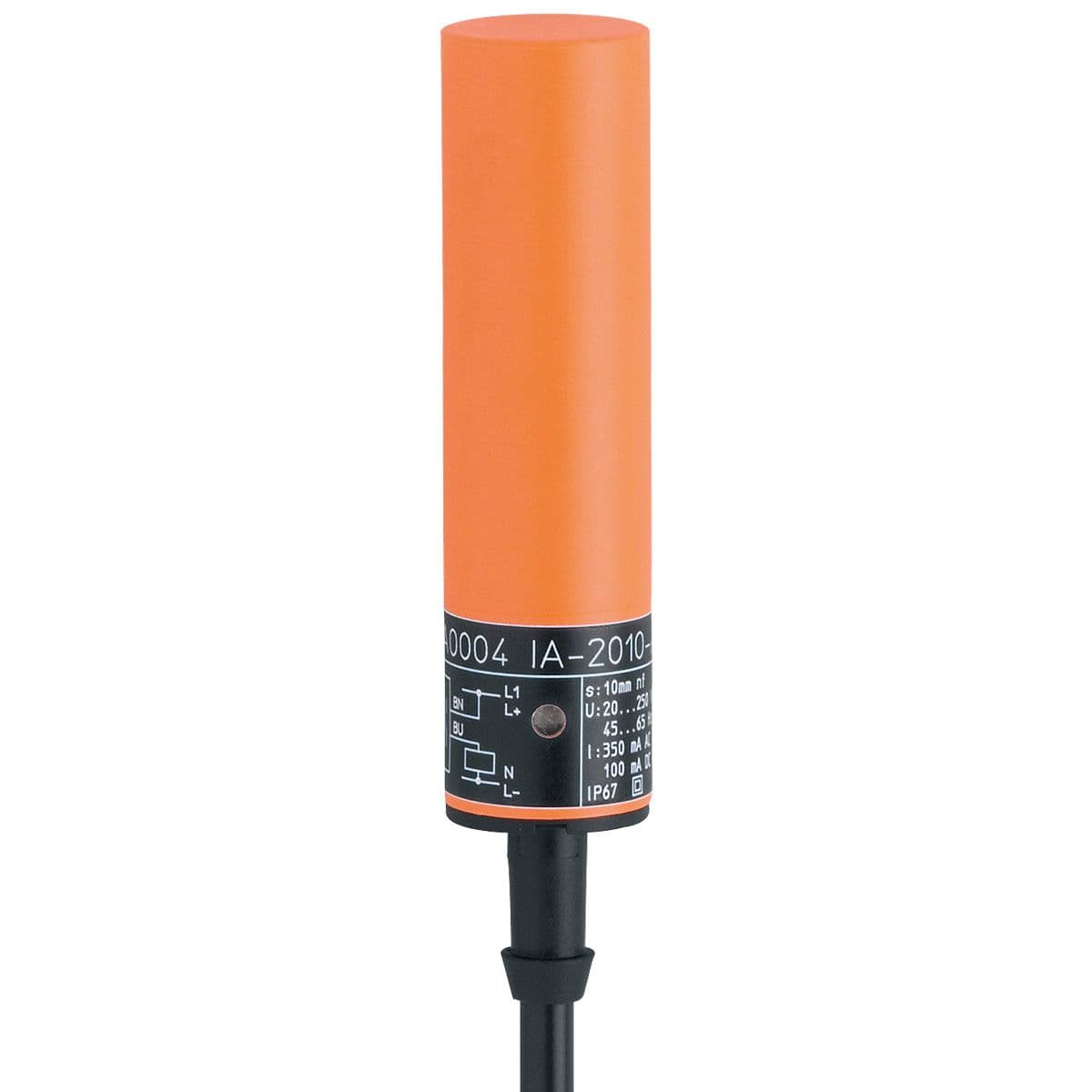

Inductive sensor, Smooth plastic housing to protect against deposits, Electrical design: PNP/NPN, Output function: normally open / closed; (selectable), Sensing range [mm]: 10, Housing: tubular, Dimensions [mm]: Ø 20 / L = 77
Product Details
- Max. voltage drop switching output DC [V] 4.6
- Housing tubular
- Overload protection yes
- Protection class II
- Permanent current rating of switching output DC [mA] 400
- Reverse polarity protection yes
- Dimensions [mm] Ø 20 / L = 77
- Short-circuit protection yes
- Output function normally open / closed; (selectable)
- Type of short-circuit protection yes (non-latching)
- Electrical design PNP/NPN
- Max. leakage current [mA] 1
- Switching frequency DC [Hz] 300
- Sensing range [mm] 10
- Operating voltage [V] 10...55 DC
- Minimum load current [mA] 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
