ID5046 ifm Electronic Electronic Components
Part#:ID5046
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

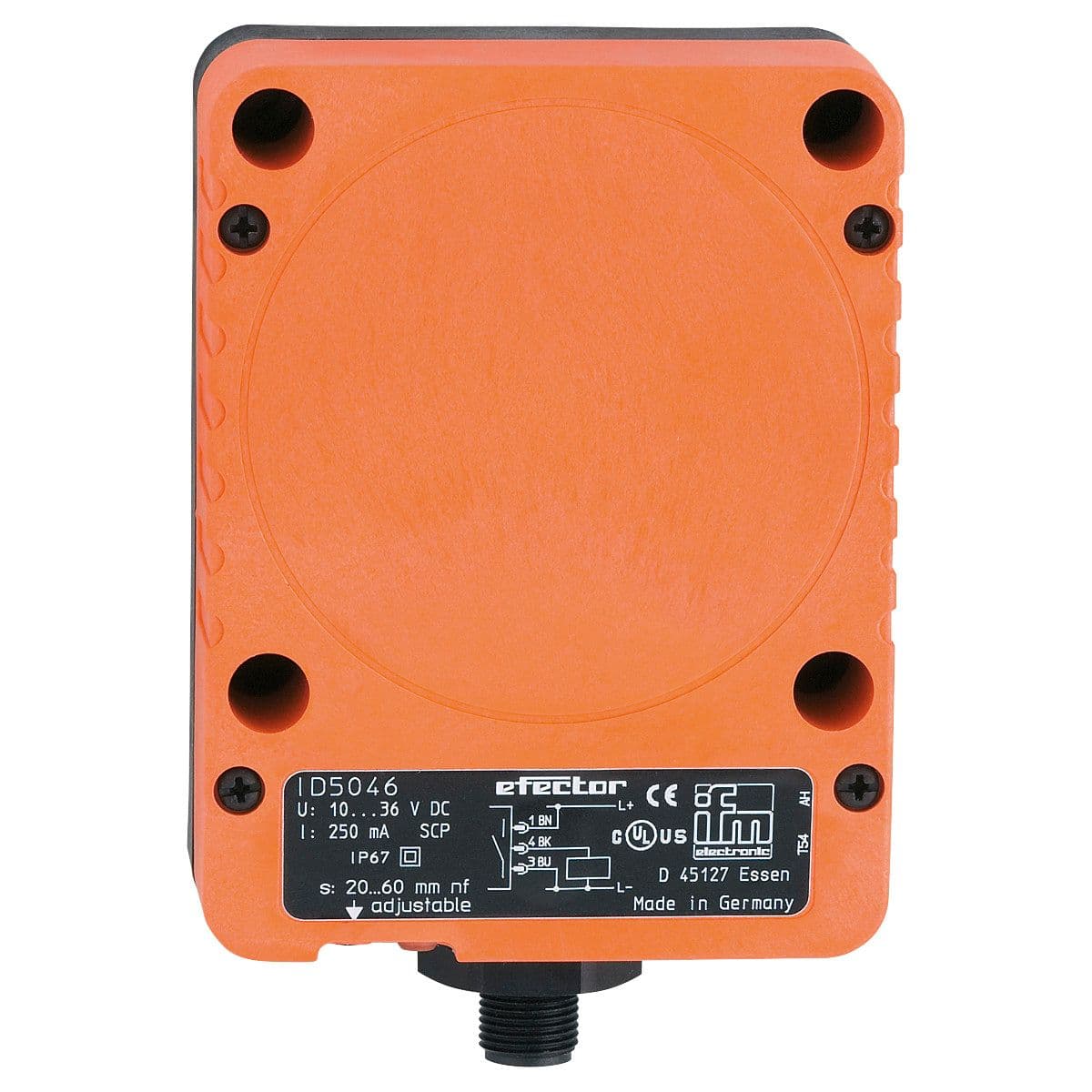

Inductive sensor, Very long sensing range, Electrical design: PNP, Output function: normally open / closed; (selectable), Sensing range [mm]: 20...60, Housing: rectangular, Dimensions [mm]: 105 x 80 x 40
Product Details
- Sensing range [mm] 20...60
- Permanent current rating of switching output DC [mA] 250
- Dimensions [mm] 105 x 80 x 40
- Type of short-circuit protection yes (non-latching)
- Reverse polarity protection yes
- Output function normally open / closed; (selectable)
- Housing rectangular
- Switching frequency DC [Hz] 100
- Protection class II
- Short-circuit protection yes
- Current consumption [mA] < 15
- Overload protection yes
- Max. voltage drop switching output DC [V] 2.5
- Electrical design PNP
- Operating voltage [V] 10...36 DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
ID5046 ifm Electronic
