IE5356 ifm Electronic Electronic Components
Part#:IE5356
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

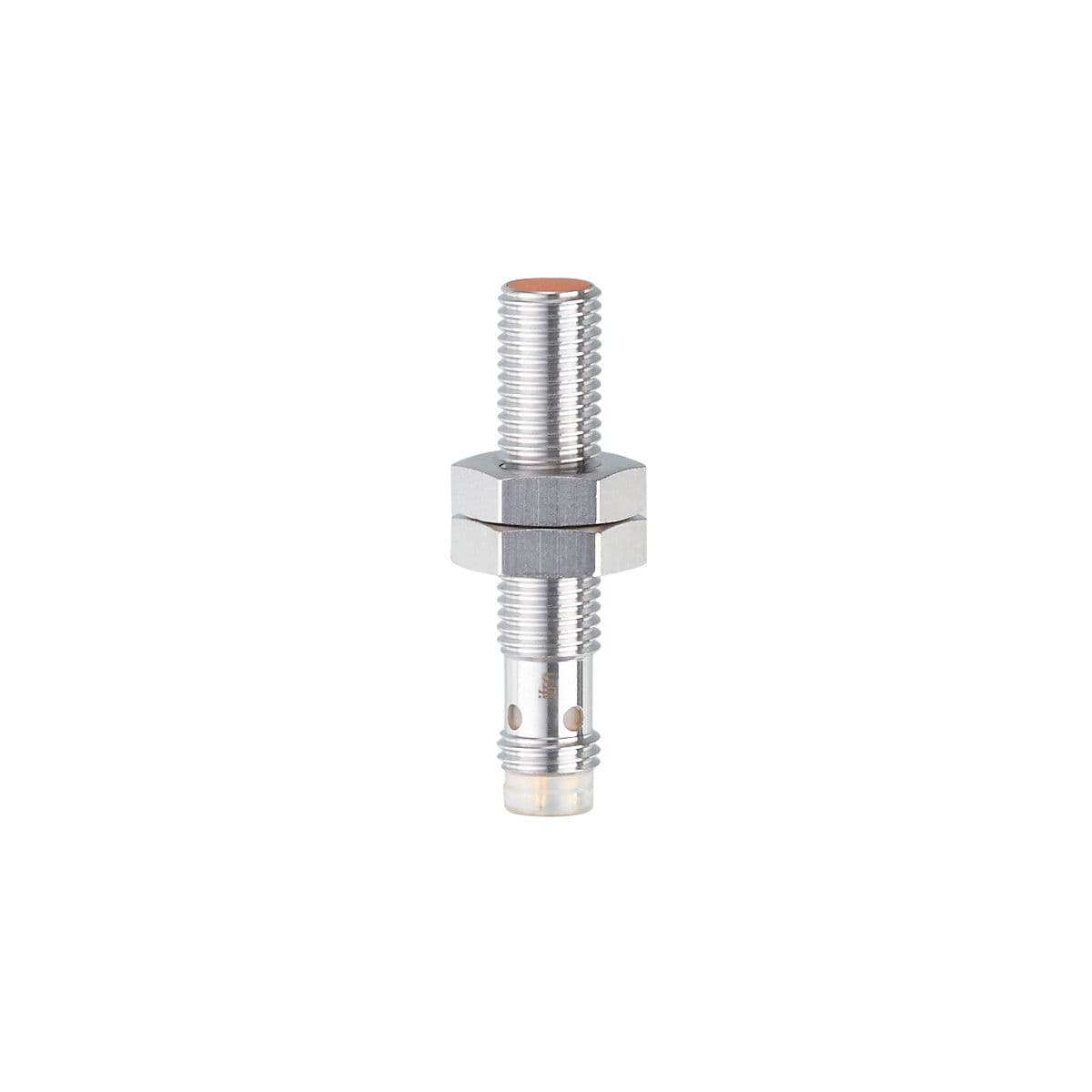

Inductive sensor, For use where space is restricted, Electrical design: PNP/NPN, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 40
Product Details
- Sensing range [mm] 2
- Electrical design PNP/NPN
- Reverse polarity protection yes
- Max. voltage drop switching output DC [V] 3.5
- Overload protection yes
- Protection class III
- Housing Threaded type
- Switching frequency DC [Hz] 800
- Short-circuit protection yes
- Dimensions [mm] M8 x 1 / L = 40
- Max. leakage current [mA] 0.5; (only in 2-wire operation)
- Operating voltage [V] 10...30 DC
- Minimum load current [mA] 2; (only in 2-wire operation)
- Output function normally open
- Permanent current rating of switching output DC [mA] 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
