IE5375 ifm Electronic Electronic Components
Part#:IE5375
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

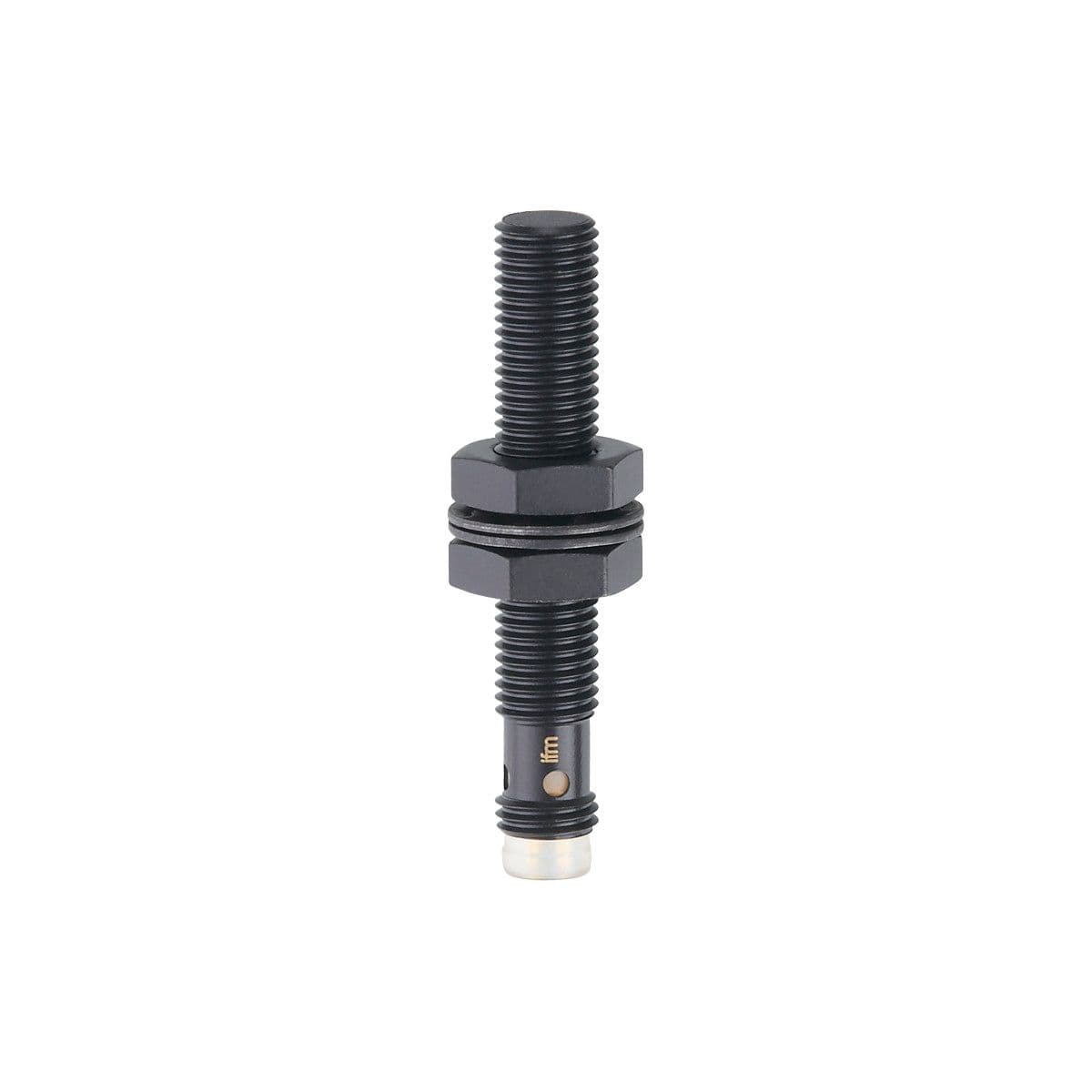

Inductive sensor, Weld slag resistant coating, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: Threaded type, Dimensions [mm]: M8 x 1 / L = 50, System: Increased sensing range; weld coated
Product Details
- Permanent current rating of switching output DC [mA] 100
- Output function normally open
- Protection class III
- Electrical design PNP
- System Increased sensing range; weld coated
- Current consumption [mA] < 10
- Short-circuit protection yes
- Operating voltage [V] 10...30 DC
- Reverse polarity protection yes
- Dimensions [mm] M8 x 1 / L = 50
- Overload protection yes
- Housing Threaded type
- Max. voltage drop switching output DC [V] 2.5
- Sensing range [mm] 2
- Switching frequency DC [Hz] 1000
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
