IF5898 ifm Electronic Electronic Components
Part#:IF5898
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

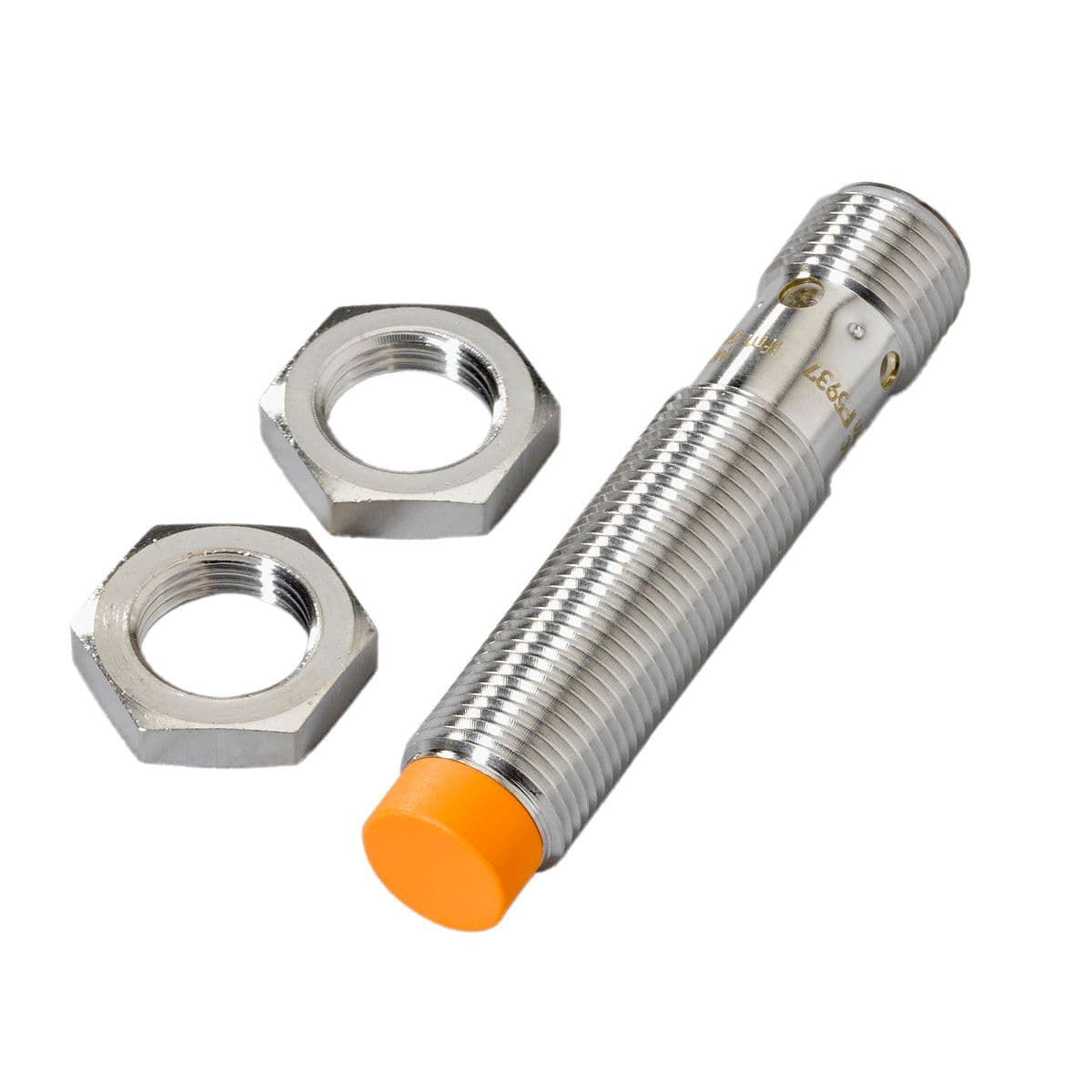

Inductive sensor, Robust housing for use in metalworking, Electrical design: PNP/NPN, Output function: normally open / closed; (selectable), Sensing range [mm]: 7, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 60, System: gold-plated contacts; In
Product Details
- Reverse polarity protection yes
- Short-circuit protection yes
- Output function normally open / closed; (selectable)
- Sensing range [mm] 7
- Type of short-circuit protection yes (non-latching)
- System gold-plated contacts; Increased sensing range; optical setting aid
- Max. voltage drop switching output DC [V] 4.6
- Dimensions [mm] M12 x 1 / L = 60
- Max. leakage current [mA] 1
- Overload protection yes
- Housing Threaded type
- Switching frequency DC [Hz] 500
- Electrical design PNP/NPN
- Operating voltage [V] 10...36 DC
- Permanent current rating of switching output DC [mA] 100
- Minimum load current [mA] 4
- Protection class II
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
