IF7105 ifm Electronic Electronic Components
Part#:IF7105
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

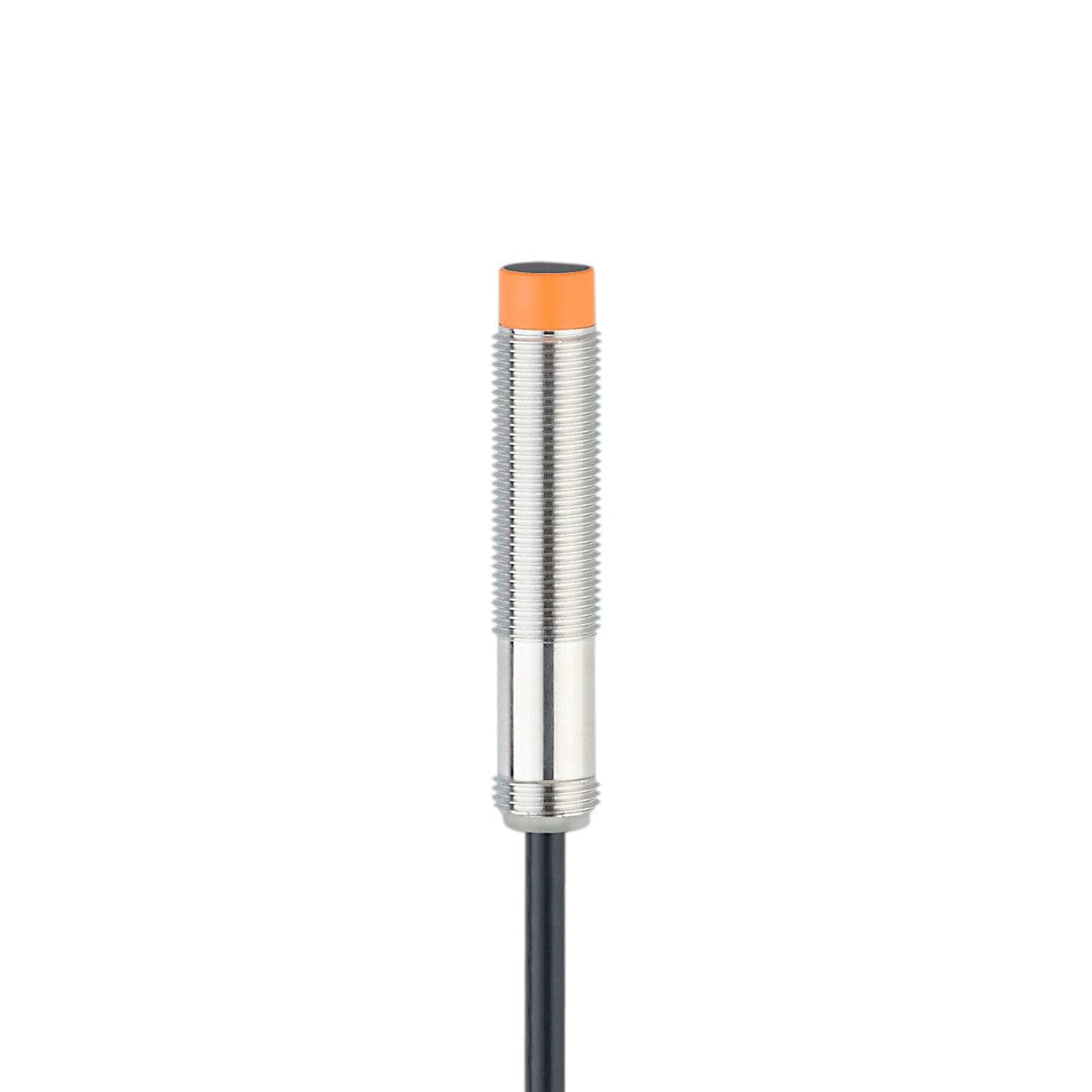

Inductive sensor, Excellent price/performance ratio, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 60
Product Details
- Sensing range [mm] 4
- Switching frequency DC [Hz] 800
- Housing Threaded type
- Permanent current rating of switching output DC [mA] 100
- Dimensions [mm] M12 x 1 / L = 60
- Reverse polarity protection yes
- Protection class III
- Operating voltage [V] 10...30 DC
- Short-circuit protection yes
- Current consumption [mA] < 10
- Electrical design PNP
- Overload protection yes
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IF7105 ifm Electronic
