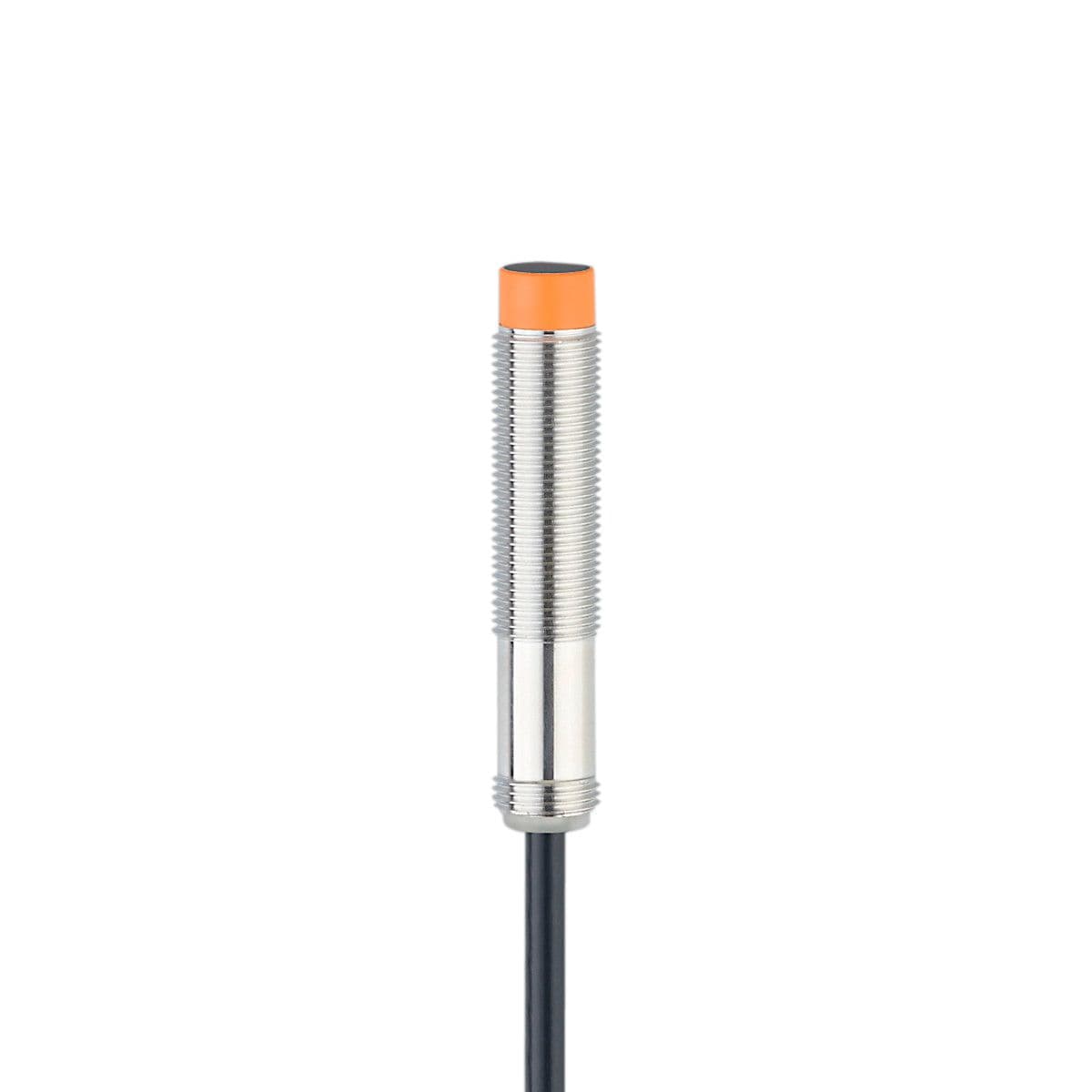

IF7107 ifm Electronic Electronic Components
Part#:IF7107
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Inductive sensor, Excellent price/performance ratio, Electrical design: NPN, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 60
Product Details
- Reverse polarity protection yes
- Housing Threaded type
- Operating voltage [V] 10...30 DC
- Dimensions [mm] M12 x 1 / L = 60
- Switching frequency DC [Hz] 800
- Permanent current rating of switching output DC [mA] 100
- Current consumption [mA] < 10
- Sensing range [mm] 4
- Protection class III
- Output function normally open
- Overload protection yes
- Electrical design NPN
- Short-circuit protection yes
- Max. voltage drop switching output DC [V] 2.5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IF7107 ifm Electronic
