IG5958 ifm Electronic Electronic Components
Part#:IG5958
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

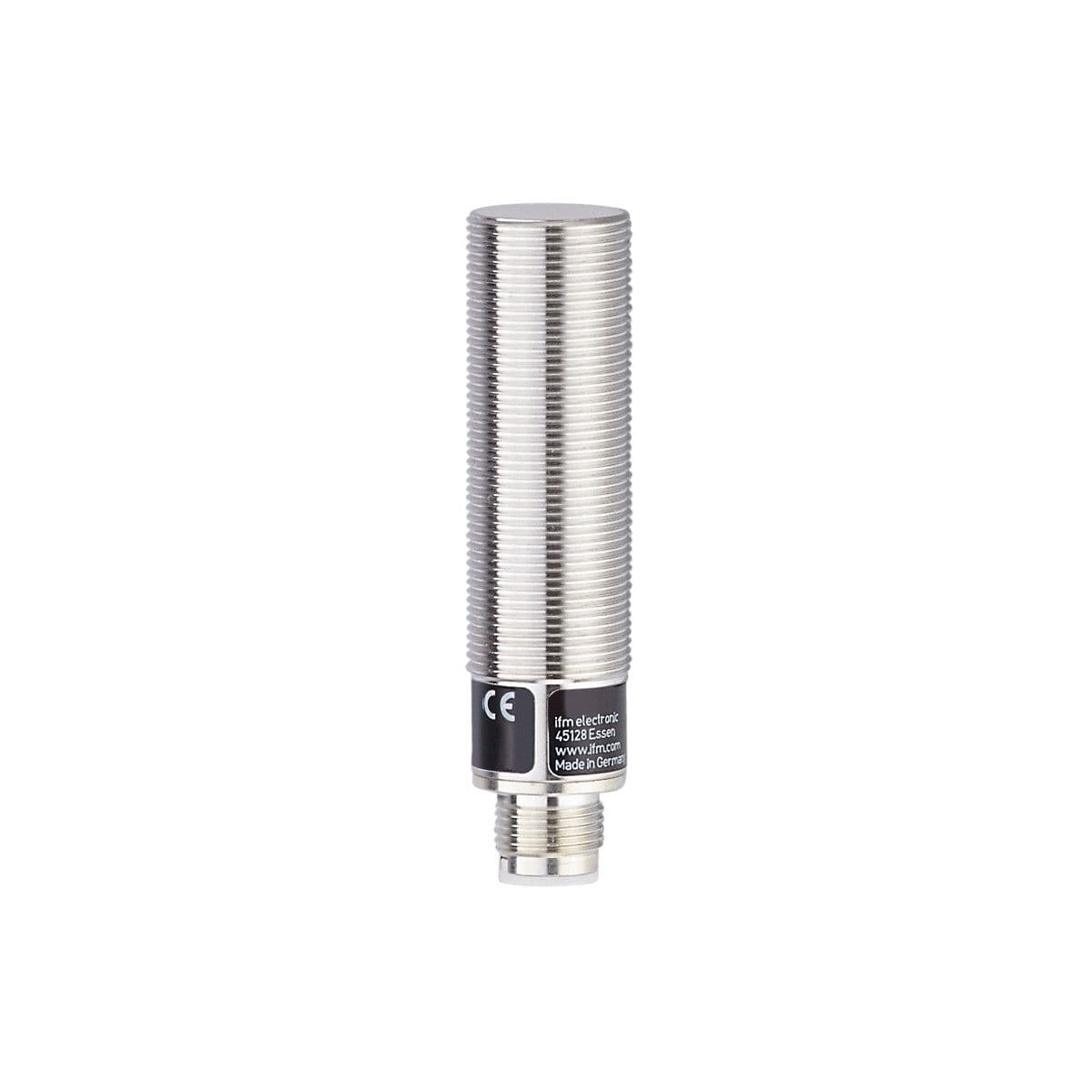

Inductive sensor, Output function normally open / normally closed programmable, Electrical design: PNP/NPN, Output function: normally open / closed; (selectable), Sensing range [mm]: 8, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 72, System: In
Product Details
- Operating voltage [V] 10...55 DC
- Output function normally open / closed; (selectable)
- Type of short-circuit protection yes (non-latching)
- Reverse polarity protection yes
- Sensing range [mm] 8
- Minimum load current [mA] 4
- Dimensions [mm] M18 x 1 / L = 72
- Switching frequency DC [Hz] 250
- Housing Threaded type
- Short-circuit protection yes
- System Increased sensing range
- Max. voltage drop switching output DC [V] 4.6
- Overload protection yes
- Electrical design PNP/NPN
- Max. leakage current [mA] 0.8
- Protection class II
- Permanent current rating of switching output DC [mA] 400
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
