IG6086 ifm Electronic Electronic Components
Part#:IG6086
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

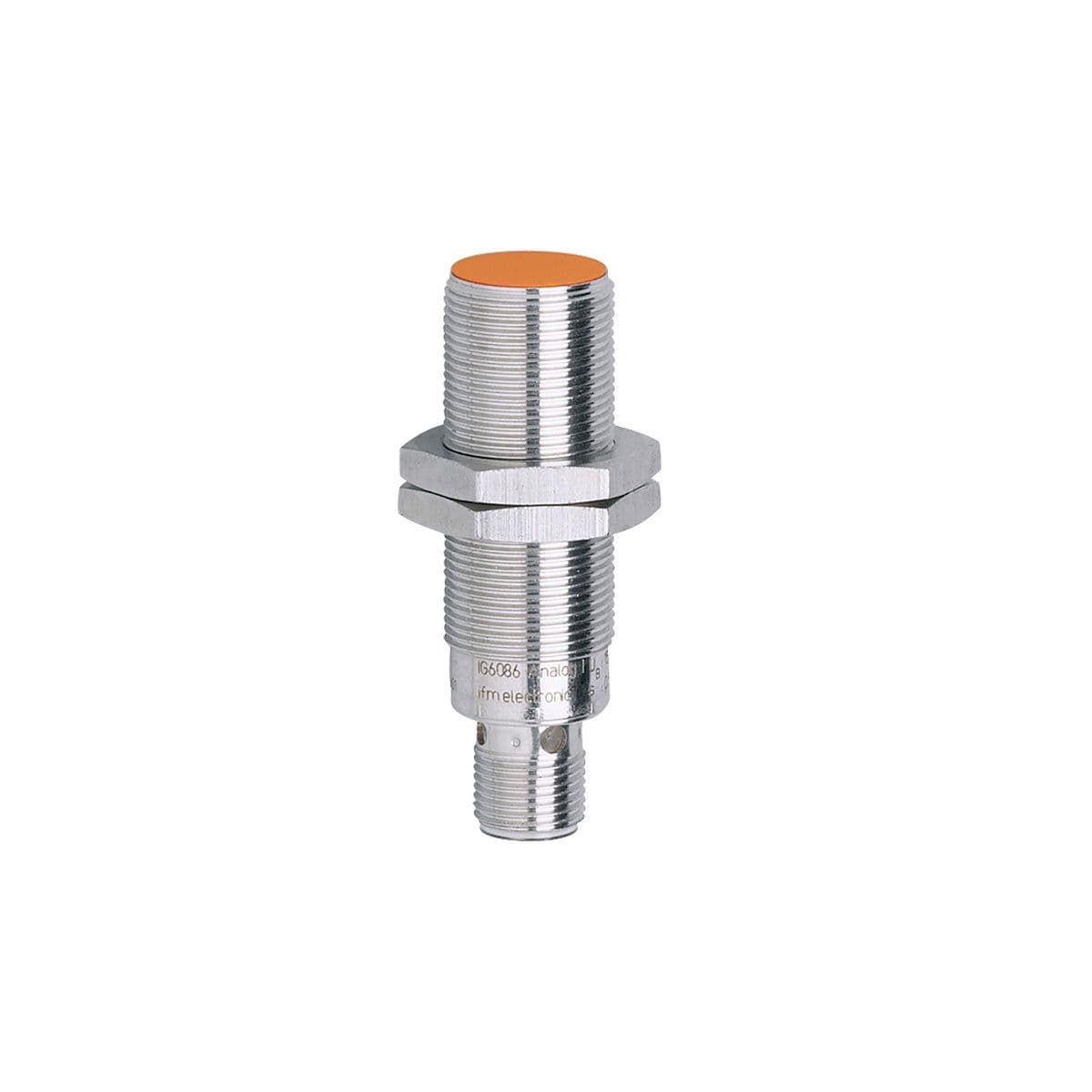

inductive analog sensor with IO-Link, Precise linearized output signal, Electrical design: PNP/NPN; (configurable), Output function: normally open / closed; (configurable), Communication interface: IO-Link, Housing: Threaded type, Dimensions [mm]: M18 x 1
Product Details
- Output function normally open / closed; (configurable)
- Max. load [Ω] 500; (Ub
- Protection class II
- Overload protection yes
- Electrical design PNP/NPN; (configurable)
- Short-circuit protection yes
- Current consumption [mA] < 30
- Max. voltage drop switching output DC [V] 2.5
- Communication interface IO-Link
- Housing Threaded type
- Analog current output [mA] 4...20; (linear; gradient: 3,556 mA/mm; for frontal approach and for target made of mild steel: 18 x 18 x 1 mm)
- Dimensions [mm] M18 x 1 / L = 60
- Switching frequency DC [Hz] 300
- Reverse polarity protection yes
- Operating voltage [V] 15...30 DC
- Permanent current rating of switching output DC [mA] 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
