IGW202 ifm Electronic Electronic Components
Part#:IGW202
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

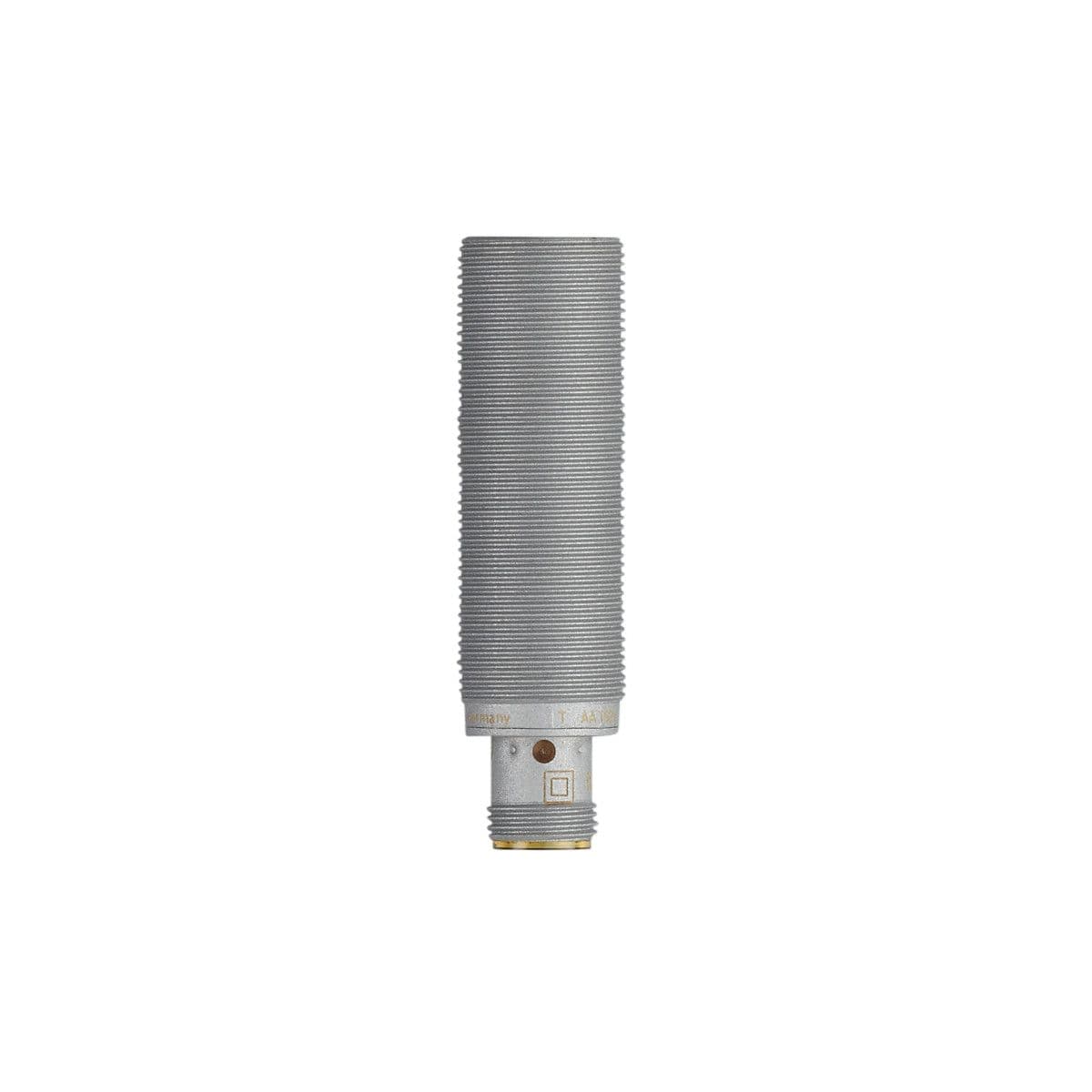

Inductive sensor, Magnetic-field immune for welding applications, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 8, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 65, System: gold-plated contacts; Increased sensing ran
Product Details
- Magnetic-field immune yes
- Overload protection yes
- Reverse polarity protection yes
- Electrical design PNP
- System gold-plated contacts; Increased sensing range; correction factor = 1; Magnetic-field immune; weld coated
- Max. electromagnetic field immunity [mT] 300
- Operating voltage [V] 10...30 DC
- Max. voltage drop switching output DC [V] 2.5
- Protection class II
- Output function normally open
- Application Sensors for welding applications
- Short-circuit protection yes
- Housing Threaded type
- Current consumption [mA] < 20
- Dimensions [mm] M18 x 1 / L = 65
- Sensing range [mm] 8
- Switching frequency DC [Hz] 2000
- Permanent current rating of switching output DC [mA] 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IGW202 ifm Electronic
