II0376 ifm Electronic Electronic Components

Name: II0376
Brand: ifm Electronic

Part#:II0376

Category:Electronic Components

Product Lifecycle:Active

Product description

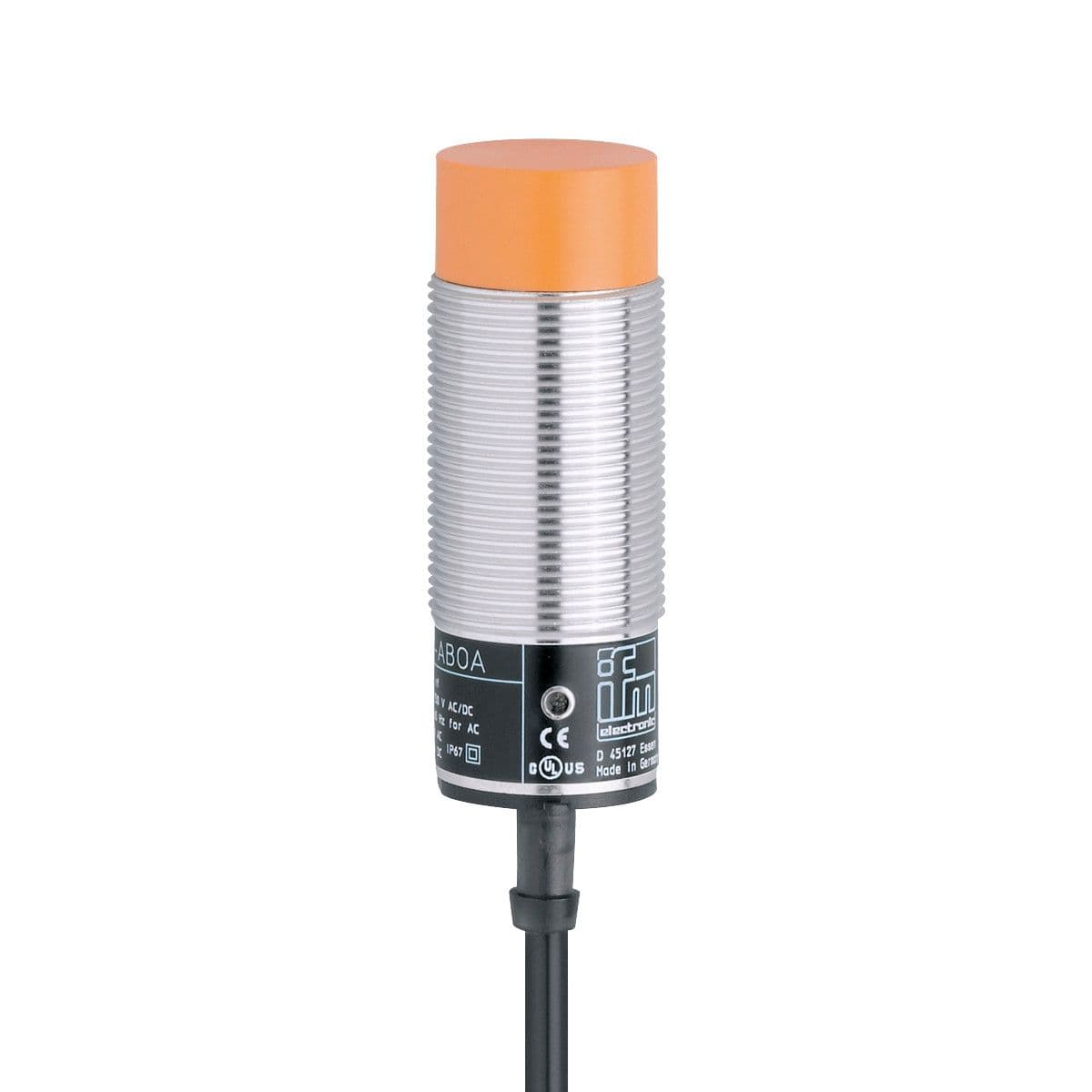

Inductive sensor, With combined AC/DC output stage, Output function: normally open, Sensing range [mm]: 15, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 81

Product Details

Max. voltage drop switching output DC [V]
6
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Reverse polarity protection
no
Overload protection
no
Switching frequency DC [Hz]
50
Output function
normally open
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Housing
Threaded type
Switching frequency AC [Hz]
25
Sensing range [mm]
15
Operating voltage [V]
20...250 AC/DC
Protection class
II
Minimum load current [mA]
5
Short-circuit proof
no
Max. voltage drop switching output AC [V]
6.5
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Dimensions [mm]
M30 x 1.5 / L = 81
Permanent current rating of switching output DC [mA]
100

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
