II5736 ifm Electronic Electronic Components

Name: II5736
Brand: ifm Electronic

Part#:II5736

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

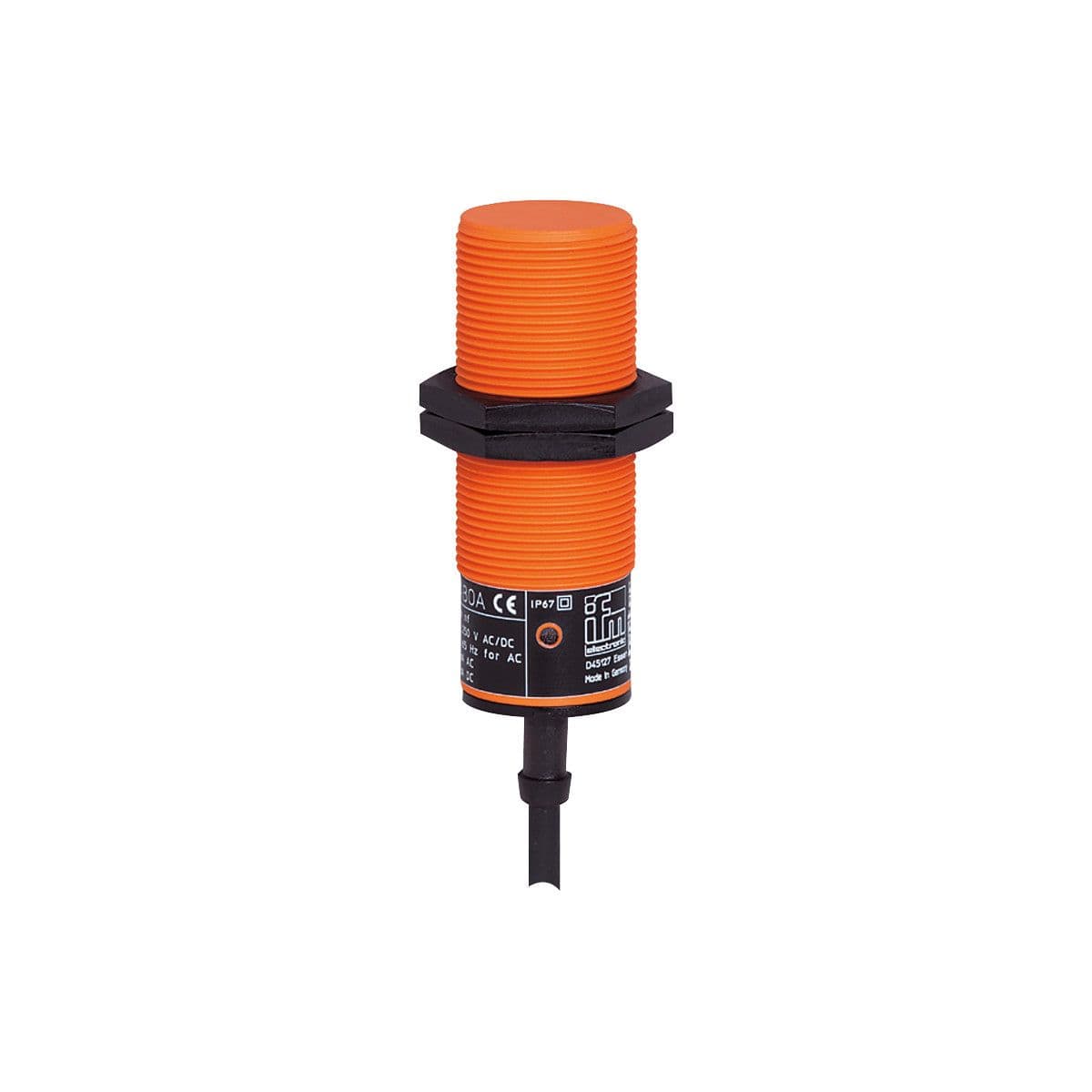

Inductive sensor, Output function normally open / normally closed programmable, Electrical design: PNP/NPN, Output function: normally open / closed; (selectable), Sensing range [mm]: 15, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 81

Product Details

Type of short-circuit protection
yes (non-latching)
Electrical design
PNP/NPN
Reverse polarity protection
yes
Protection class
II
Max. leakage current [mA]
0.5
Permanent current rating of switching output DC [mA]
400
Output function
normally open / closed; (selectable)
Sensing range [mm]
15
Max. voltage drop switching output DC [V]
4.6
Housing
Threaded type
Switching frequency DC [Hz]
200
Operating voltage [V]
10...55 DC
Short-circuit protection
yes
Dimensions [mm]
M30 x 1.5 / L = 81
Overload protection
yes
Minimum load current [mA]
4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
