II5742 ifm Electronic Electronic Components
Part#:II5742
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active

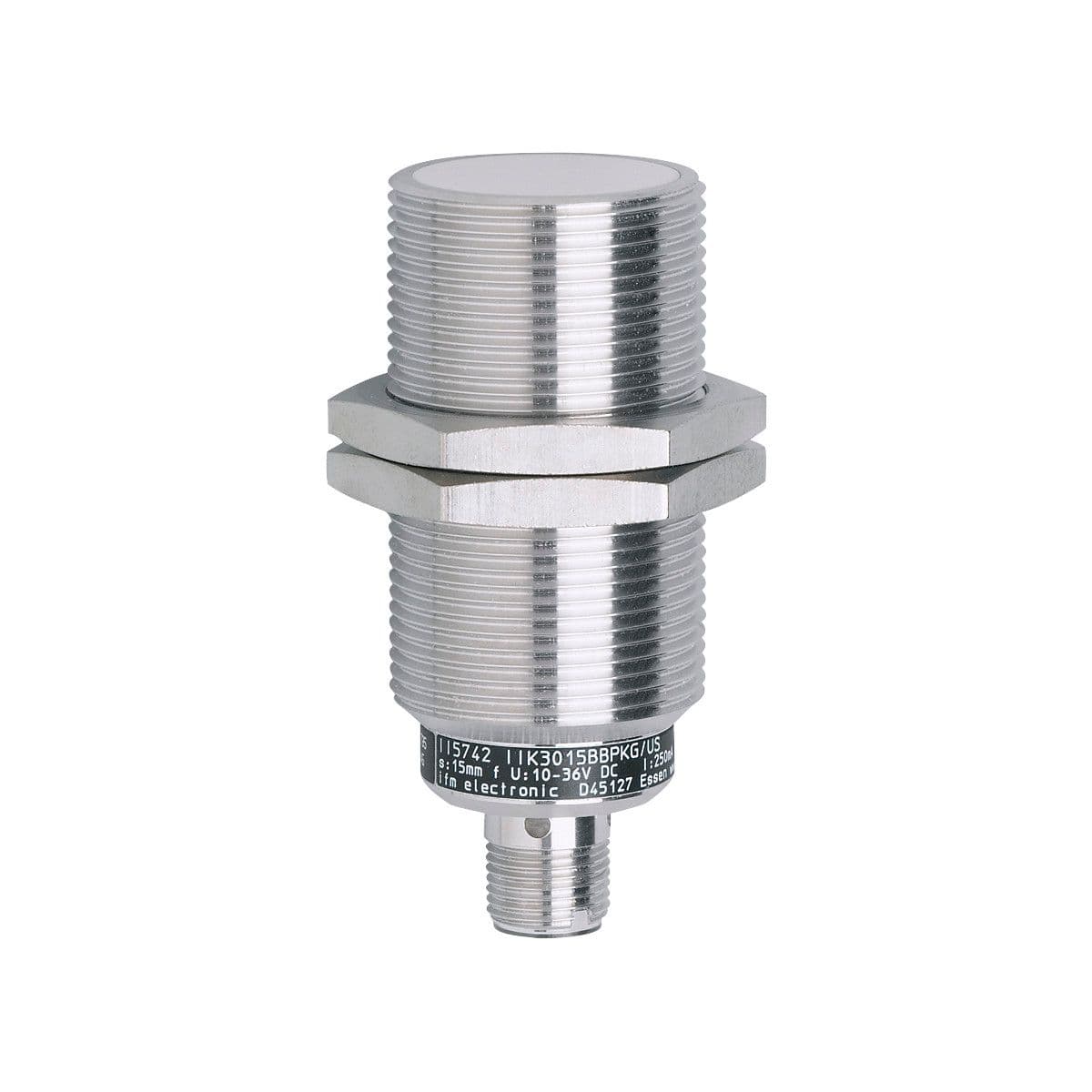

Product description
Inductive sensor, Robust metal housing for use in harsh industrial environments, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 15, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 72, System: Increased sensing range
Product Details
- Dimensions [mm] M30 x 1.5 / L = 72
- Max. voltage drop switching output DC [V] 2.5
- Electrical design PNP
- Operating voltage [V] 10...36 DC
- Permanent current rating of switching output DC [mA] 250
- Output function normally open
- Current consumption [mA] 15; (24 V)
- Type of short-circuit protection yes (non-latching)
- Protection class II
- Reverse polarity protection yes
- System Increased sensing range
- Switching frequency DC [Hz] 250
- Housing Threaded type
- Short-circuit protection yes
- Sensing range [mm] 15
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
