IIS281 ifm Electronic Electronic Components
Part#:IIS281
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

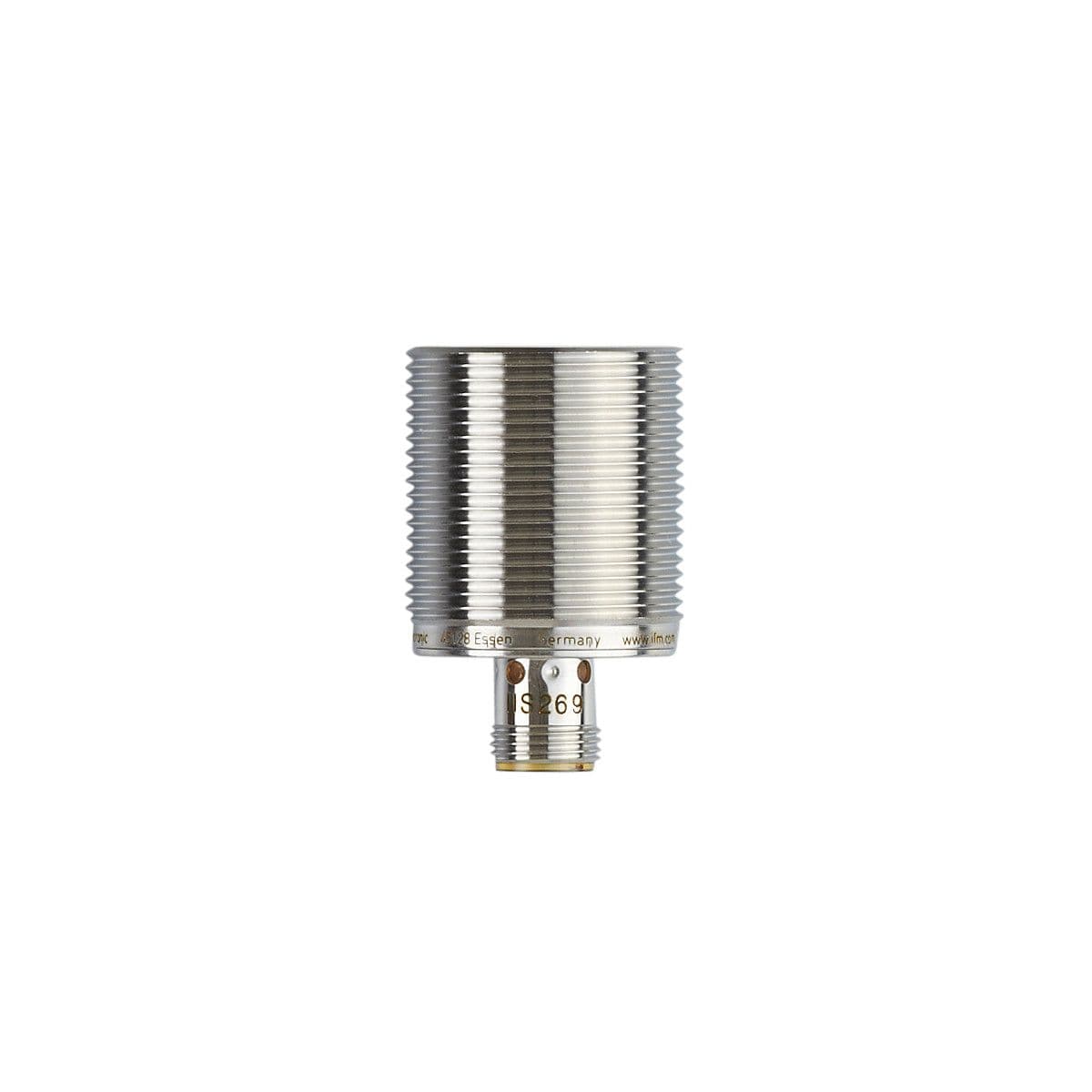

Inductive sensor, Suitable for industrial, mobile, cooling and lubricating applications, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 15, Housing: Threaded type, Dimensions [mm]: M30 x 1.5 / L = 45, System: gold-plated conta
Product Details
- Sensing range [mm] 15
- Housing Threaded type
- Protection class III
- Magnetic-field immune yes
- Reverse polarity protection yes
- Max. voltage drop switching output DC [V] 2.5
- Output function normally open
- Switching frequency DC [Hz] 2000
- Application material handling; refrigerated warehouse / shock freezing
- Permanent current rating of switching output DC [mA] 100
- Short-circuit protection yes
- System gold-plated contacts; Increased sensing range; correction factor = 1; Magnetic-field immune
- Current consumption [mA] < 20
- Max. electromagnetic field immunity [mT] 300
- Dimensions [mm] M30 x 1.5 / L = 45
- Operating voltage [V] 10...30 DC
- Electrical design PNP
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
