IS5096 ifm Electronic Electronic Components
Part#:IS5096
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

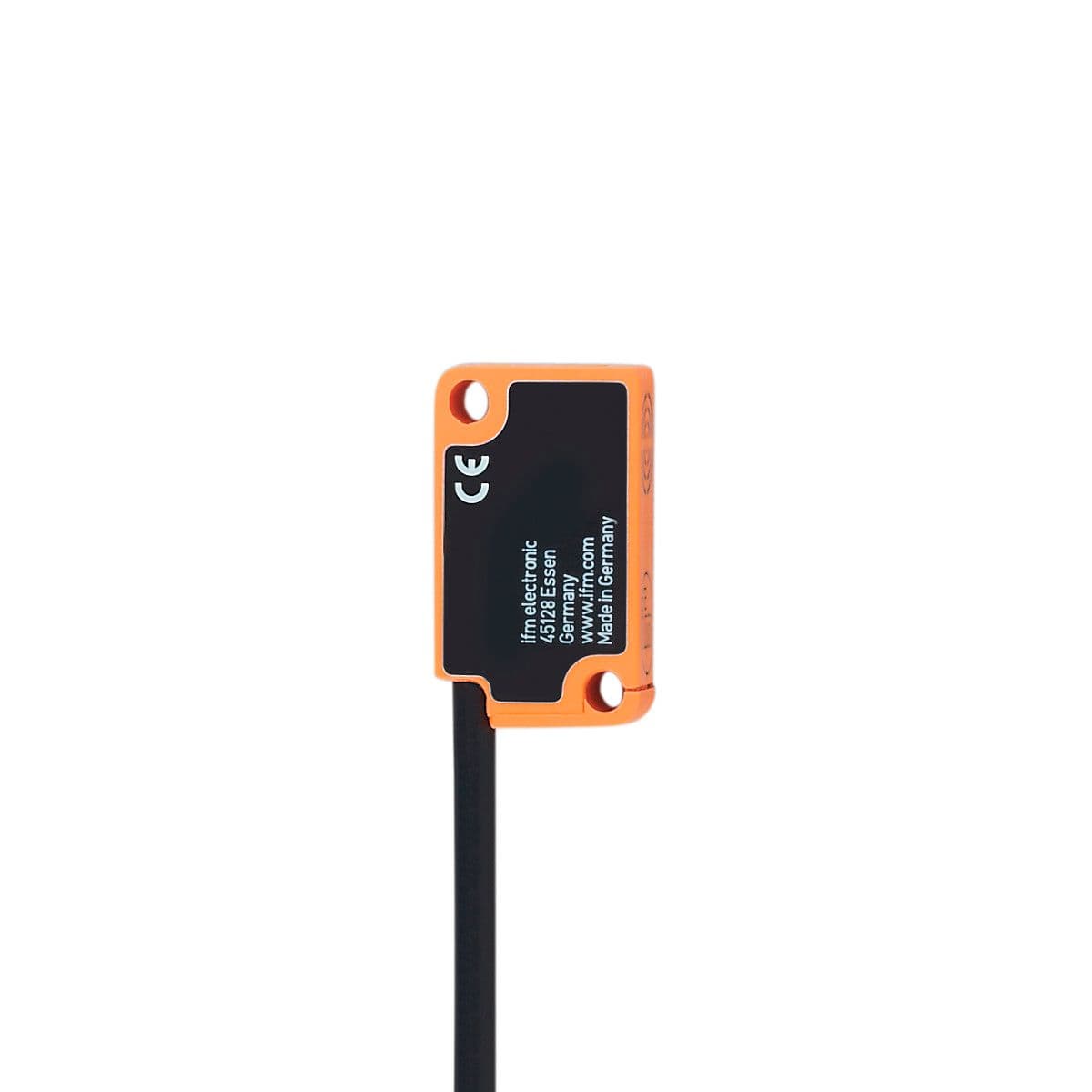

Inductive sensor, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 2, Housing: rectangular, Dimensions [mm]: 28 x 10 x 16
Product Details
- Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
- Current consumption [mA] < 15
- Short-circuit protection yes
- Switching frequency DC [Hz] 800
- Reverse polarity protection yes
- Max. voltage drop switching output DC [V] 2.5
- Housing rectangular
- Type of short-circuit protection yes (non-latching)
- Dimensions [mm] 28 x 10 x 16
- Protection class III
- Overload protection yes
- Sensing range [mm] 2
- Output function normally open
- Electrical design PNP
- Permanent current rating of switching output DC [mA] 200
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
