IY5048 ifm Electronic Electronic Components
Part#:IY5048
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

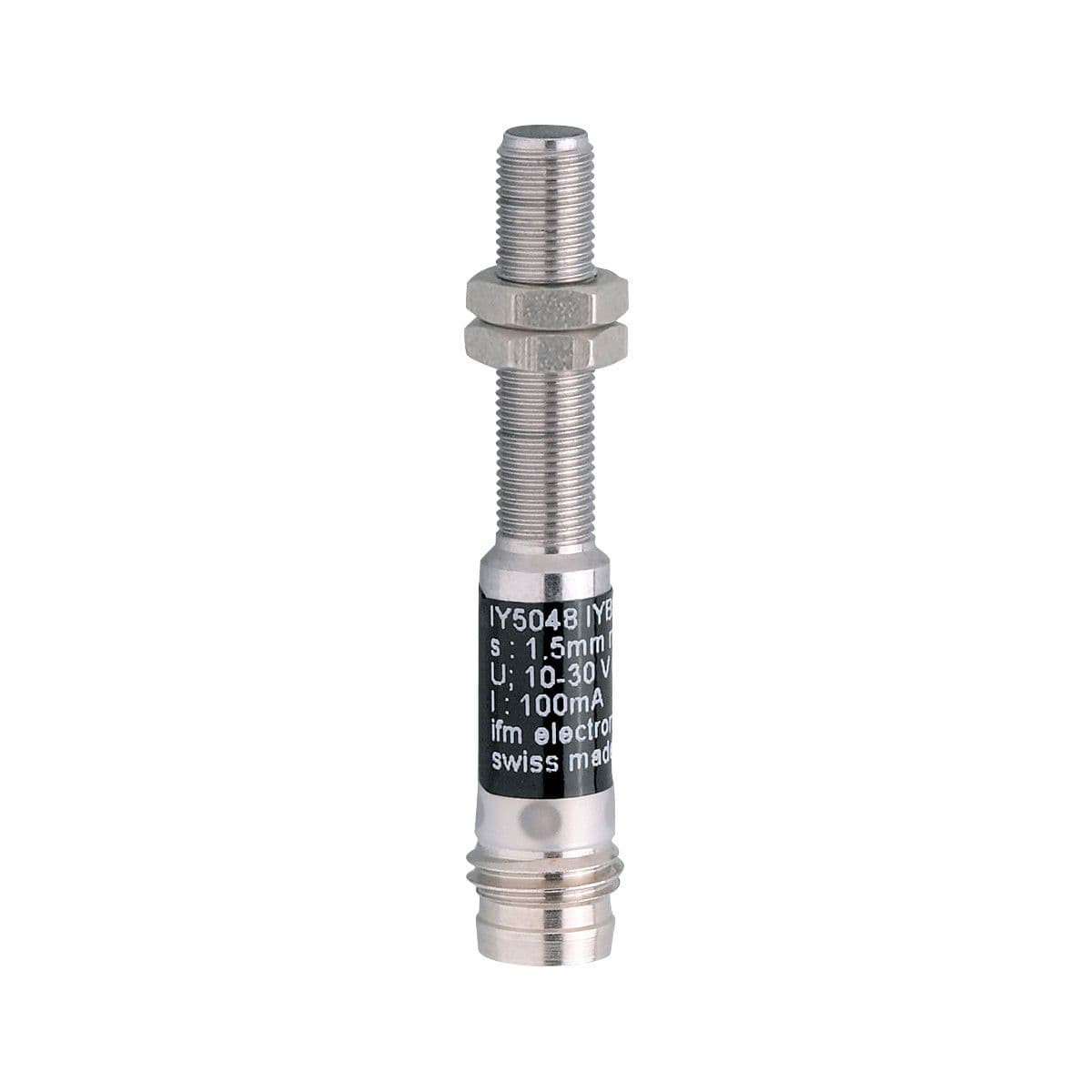

Inductive sensor, For use where space is restricted, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 1.5, Housing: Threaded type, Dimensions [mm]: M5 x 0.5 / L = 41
Product Details
- Reverse polarity protection yes
- Switching frequency DC [Hz] 1800
- Current consumption [mA] 10; (24 V)
- Short-circuit protection yes
- Type of short-circuit protection yes (non-latching)
- Sensing range [mm] 1.5
- Operating voltage [V] 10...30 DC
- Dimensions [mm] M5 x 0.5 / L = 41
- Overload protection yes
- Housing Threaded type
- Max. voltage drop switching output DC [V] 3
- Electrical design PNP
- Permanent current rating of switching output DC [mA] 100
- Output function normally open
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
