NF5004 ifm Electronic Electronic Components
Part#:NF5004
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

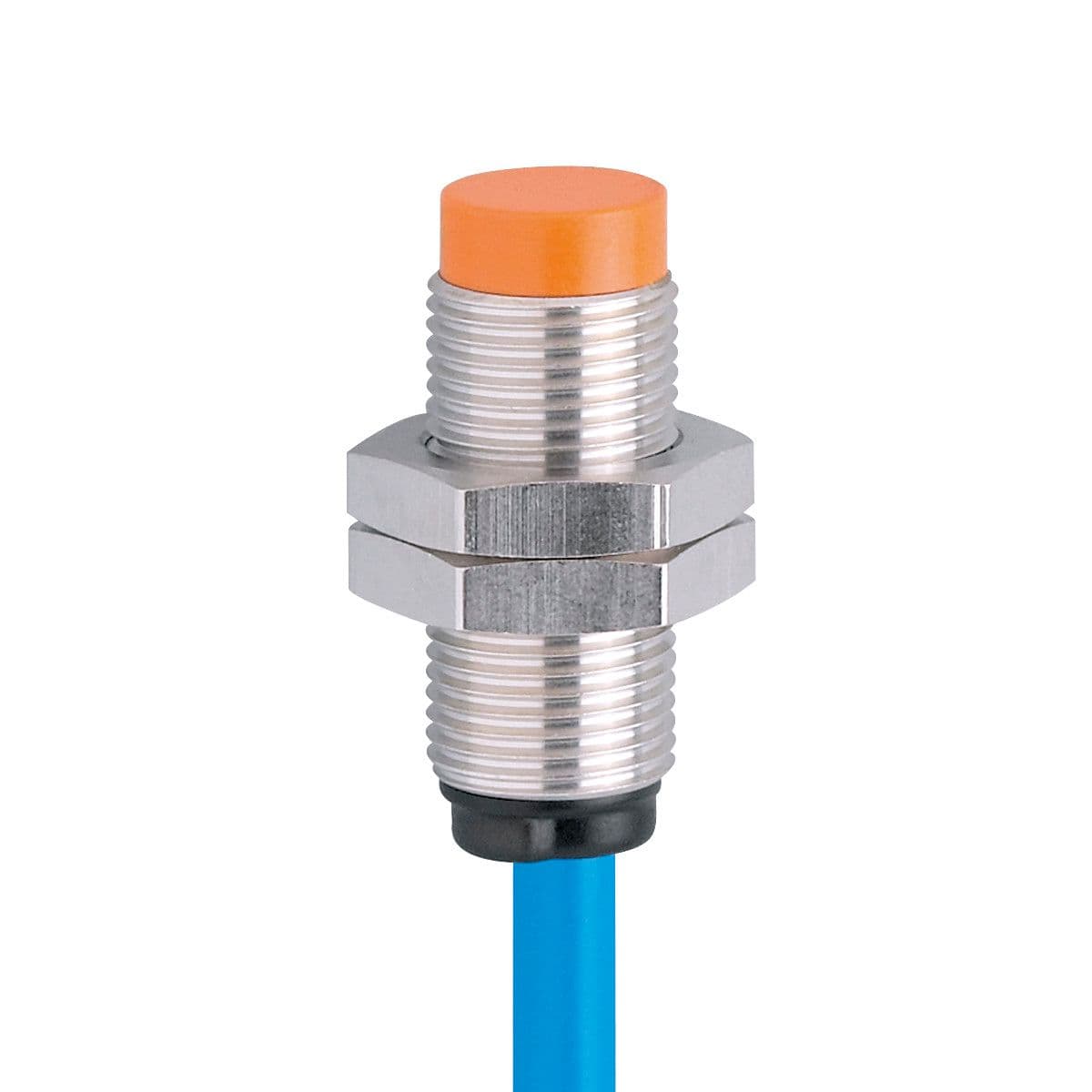

Inductive NAMUR sensor, For applications in hazardous areas, Electrical design: NAMUR, Output function: normally closed, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 30
Product Details
- Housing Threaded type
- Protection class III
- Current consumption [mA] < 1; (disabled; conductive: > 2,1)
- Switching amplifiers connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
- Dimensions [mm] M12 x 1 / L = 30
- Electrical design NAMUR
- Permanent current rating of switching output DC [mA] 30; (when used outside the hazardous area)
- Supply voltage DC [V] 7.5...30; (when used outside the hazardous area)
- Connection at circuit amplifier yes
- Output function normally closed
- Switching frequency DC [Hz] 1500
- Nominal voltage DC [V] 8.2; (1kΩ)
- Sensing range [mm] 4
