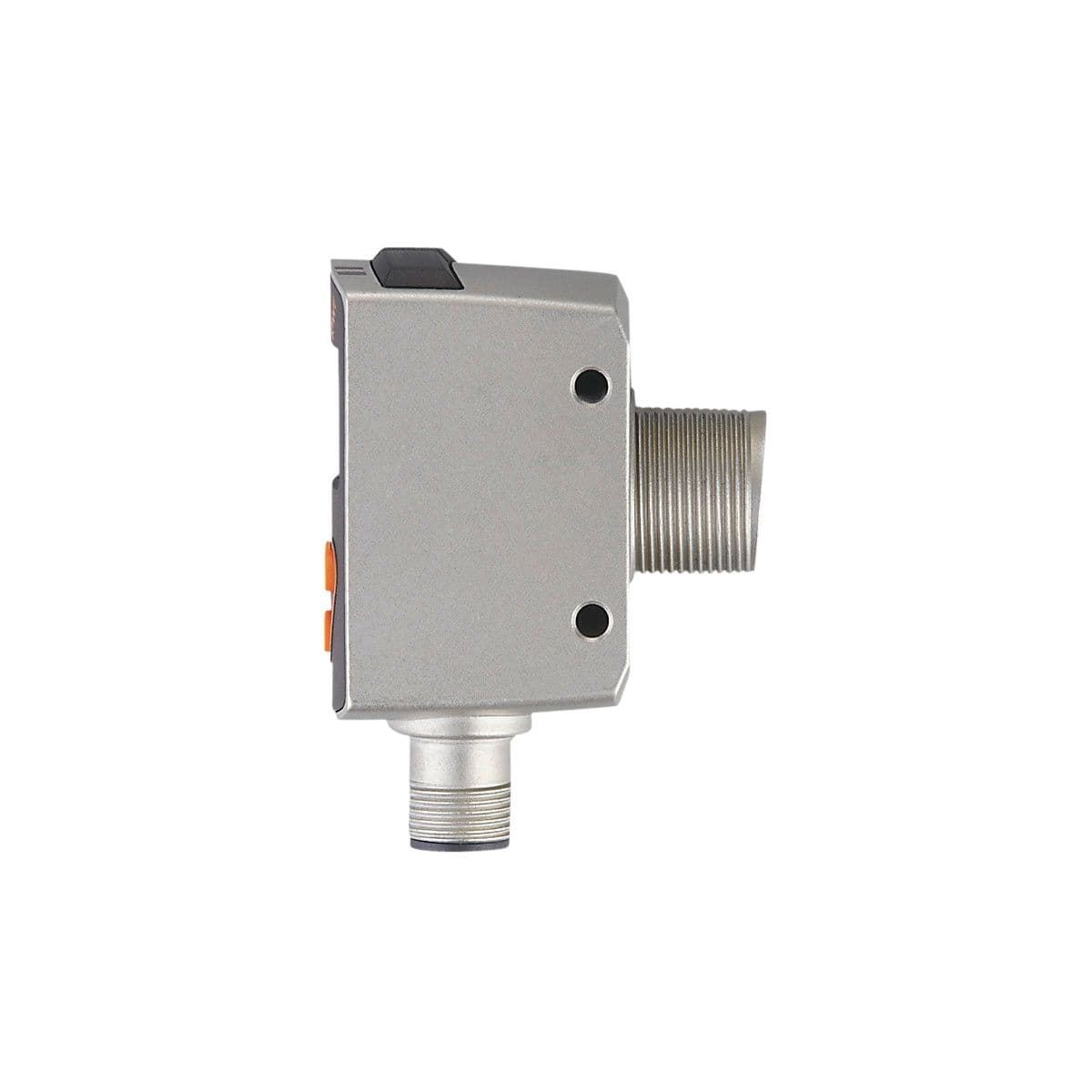

OGD582 ifm Electronic Electronic Components
Part#:OGD582
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Photoelectric distance sensor, Simultaneous output of distance value and reflectivity for increased process reliability, Type of light: red light, Measuring range [m]: 0.085...1.5, Setting range object reflectivity [%]: 6...900; (reflectivity; 6 % black p
Product Details
- Output function 2 x normally open / normally closed; (configurable)
- Current consumption reference voltage [V] 24
- Dimensions [mm] 61.7 x 22.5 x 45.2
- Inputs Laser On/ Off
- Typ. lifetime [h] 50000
- Type of short-circuit protection yes (non-latching)
- Measuring range [m] 0.085...1.5
- Setting range object reflectivity [%] 6...900; (reflectivity; 6 % black paper; 100 % white paper)
- Max. current load per output [mA] 100
- Current consumption [mA] < 75
- Laser protection class 1
- Wave length [nm] 650
- Protection class III
- Type of light red light
- Overload protection yes
- Communication interface IO-Link
- Reverse polarity protection yes
- Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
- Electrical design PNP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
