OGD592 ifm Electronic Electronic Components
Part#:OGD592
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

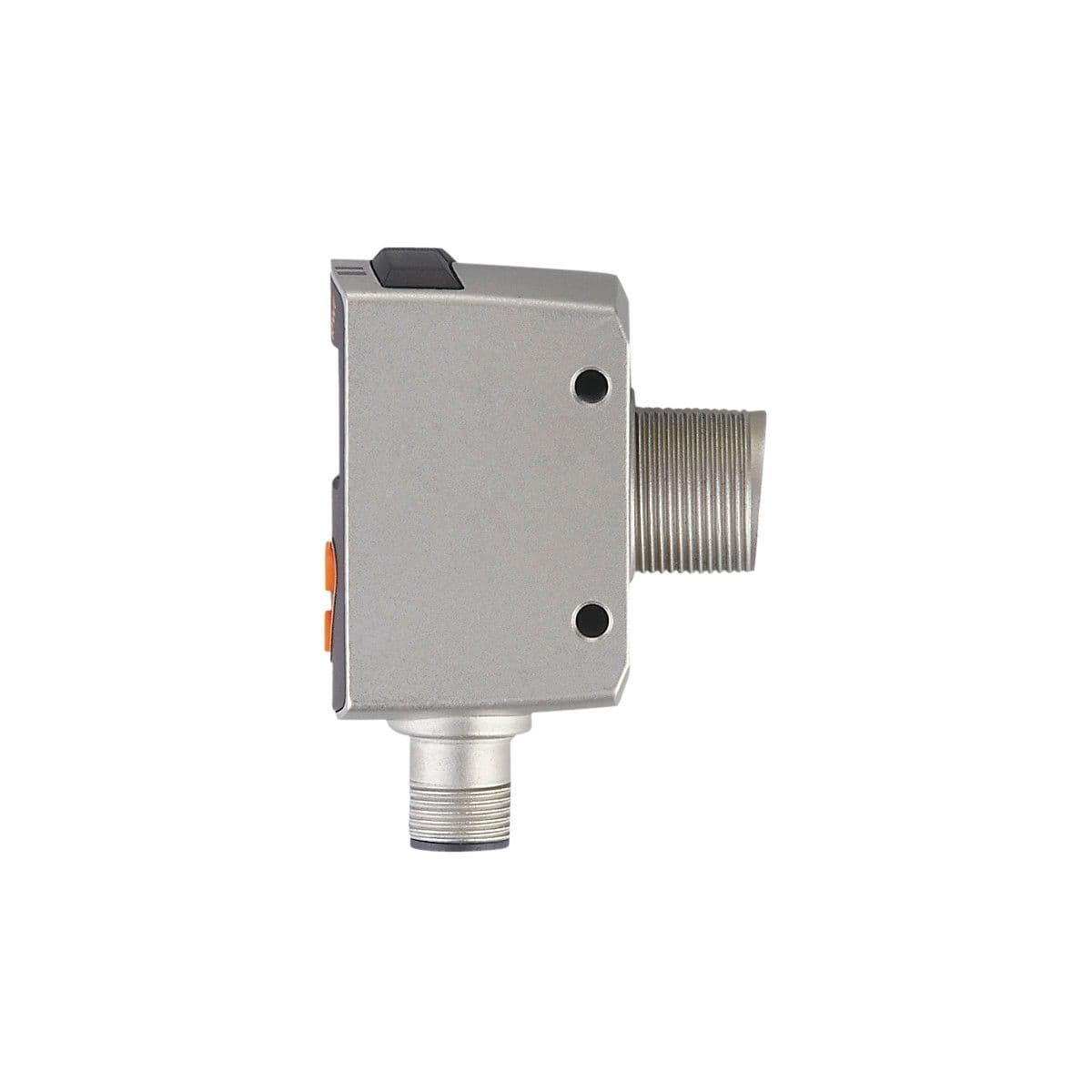

Photoelectric distance sensor, Small compact design with standard M18 thread and PMD time-of-flight technology, Type of light: red light, Measuring range [m]: 0.025...0.3, Communication interface: IO-Link, Laser protection class: 1, Dimensions [mm]: 61.7
Product Details
- Wave length [nm] 650
- Type of light red light
- Dimensions [mm] 61.7 x 22.5 x 45.2
- Reverse polarity protection yes
- Measuring range [m] 0.025...0.3
- Application [m] 0.03...0.3
- Electrical design PNP
- Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
- Typ. lifetime [h] 50000
- Current consumption reference voltage [V] 24
- Output function 2 x normally open / normally closed; (configurable)
- Laser protection class 1
- Type of short-circuit protection yes (non-latching)
- Current consumption [mA] < 75
- Permanent current rating of switching output DC [mA] 100; (per output)
- Communication interface IO-Link
- Protection class III
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
OGD592 ifm Electronic
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare OGD592 with other Electronic Components products
Wave length [nm]
Type of light
Dimensions [mm]
Reverse polarity protecti...
Measuring range [m]
Application [m]
Electrical design
Operating voltage [V]
Typ. lifetime [h]
Current consumption refer...
Selected product
OGD592
ifm Electronic
Photoelectric distance sensor, Small compact design with standard M18 thread and PMD time-of-flight ...
Wave length [nm]650
Type of lightred light
Dimensions [mm]61.7 x 22.5 x 45.2
Reverse polarity protectionyes
Measuring range [m]0.025...0.3
Application [m]0.03...0.3
Electrical designPNP
Operating voltage [V]10...30 DC; (cULus - Class 2...
Typ. lifetime [h]50000
Current consumption reference voltage [V]24
MIN-4MR-1-18
Mencom
MIN Size I, Receptacle, 4 Pole, Male Straight, 1 Ft, 18awg, 5.5A, .5-NPT, Front Mount, Aluminum Clea...
Wave length [nm]-
Type of light-
Dimensions [mm]-
Reverse polarity protection-
Measuring range [m]-
Application [m]-
Electrical design-
Operating voltage [V]-
Typ. lifetime [h]-
Current consumption reference voltage [V]-
MIN-4FR-1-18
Mencom
MIN Size I, Receptacle, 4 Pole, Female Straight, 1 Ft, 18awg, 5.5A, .5-NPT, Front Mount, Aluminum Cl...
Wave length [nm]-
Type of light-
Dimensions [mm]-
Reverse polarity protection-
Measuring range [m]-
Application [m]-
Electrical design-
Operating voltage [V]-
Typ. lifetime [h]-
Current consumption reference voltage [V]-
About the manufacturer
Advantage Electric Supply is an authorized ifm Electronic distributor, bringing you innovative industrial automation solutions from a trusted manufacturer. ifm Electronic specializes in developing cutting-edge sensors and control systems that are vital for optimizing industrial processes across a wide spectrum of industries, including automotive, food and beverage, chemical, and more. Their compre...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.
Photoelectric distance sensor, Small compact design with standard M18 thread and PMD time-of-flight technology, Type of light: red light, Measuring range [m]: 0.025...0.3, Communication interface: IO-Link, Laser protection class: 1, Dimensions [mm]: 61.7
