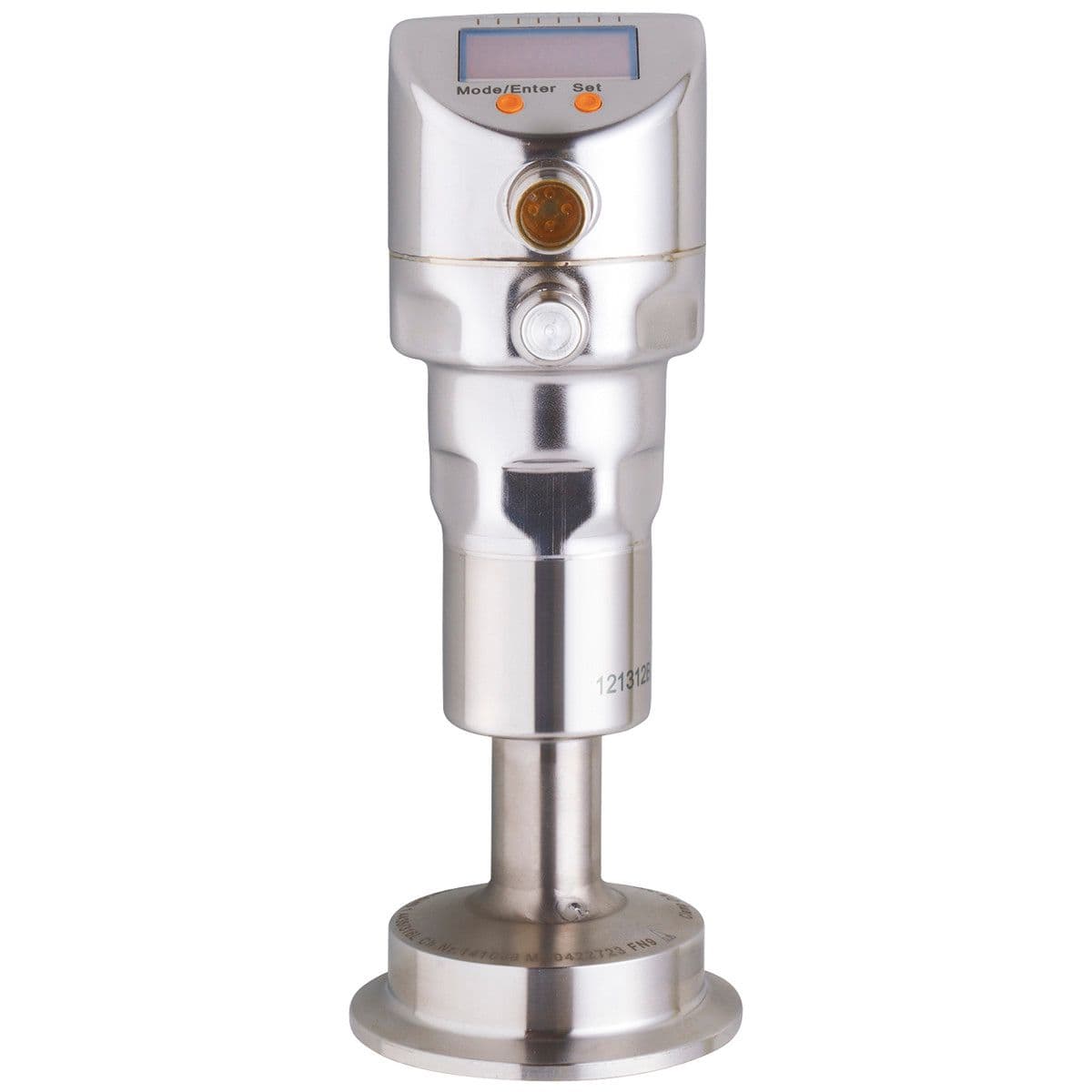

PI2303 ifm Electronic Electronic Components

Product Details

• Number of analog outputs
  1
• Switching frequency DC [Hz]
  125
• Process connection
  Clamp DN50 (2") DIN 32676 (ISO 2852)
• Current consumption [mA]
  < 45
• Number of digital outputs
  2
• Integrated watchdog
  yes
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Electrical design
  PNP/NPN
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• System
  gold-plated contacts
• Output function
  normally open / closed; (configurable)
• Operating voltage [V]
  18...32 DC
• Medium temperature [°C]
  -25...200
• Protection class
  III
• Type of short-circuit protection
  yes (non-latching)
• Min. bursting pressure
  150 bar 2175 psi 15 MPa
• Type of pressure
  relative pressure; vacuum
• Overload protection
  yes
• Application
  flush mountable for the food and beverage industry
• Min. insulation resistance [MΩ]
  100; (500 V DC)
Reverse polarity protection
yes
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Permanent current rating of switching output DC [mA]
250
Measuring range
-1...25 bar -14.4...362.7 psi -0.1...2.5 MPa
Media
viscous media and liquids with suspended particles; liquids and gases
Analog current output [mA]
4...20, invertible; (scalable)
Total number of outputs
2
Pressure rating
80 bar 1160 psi 8 Mpa
Max. voltage drop switching output DC [V]
2
Power-on delay time [s]
0.5
Short-circuit protection
yes
