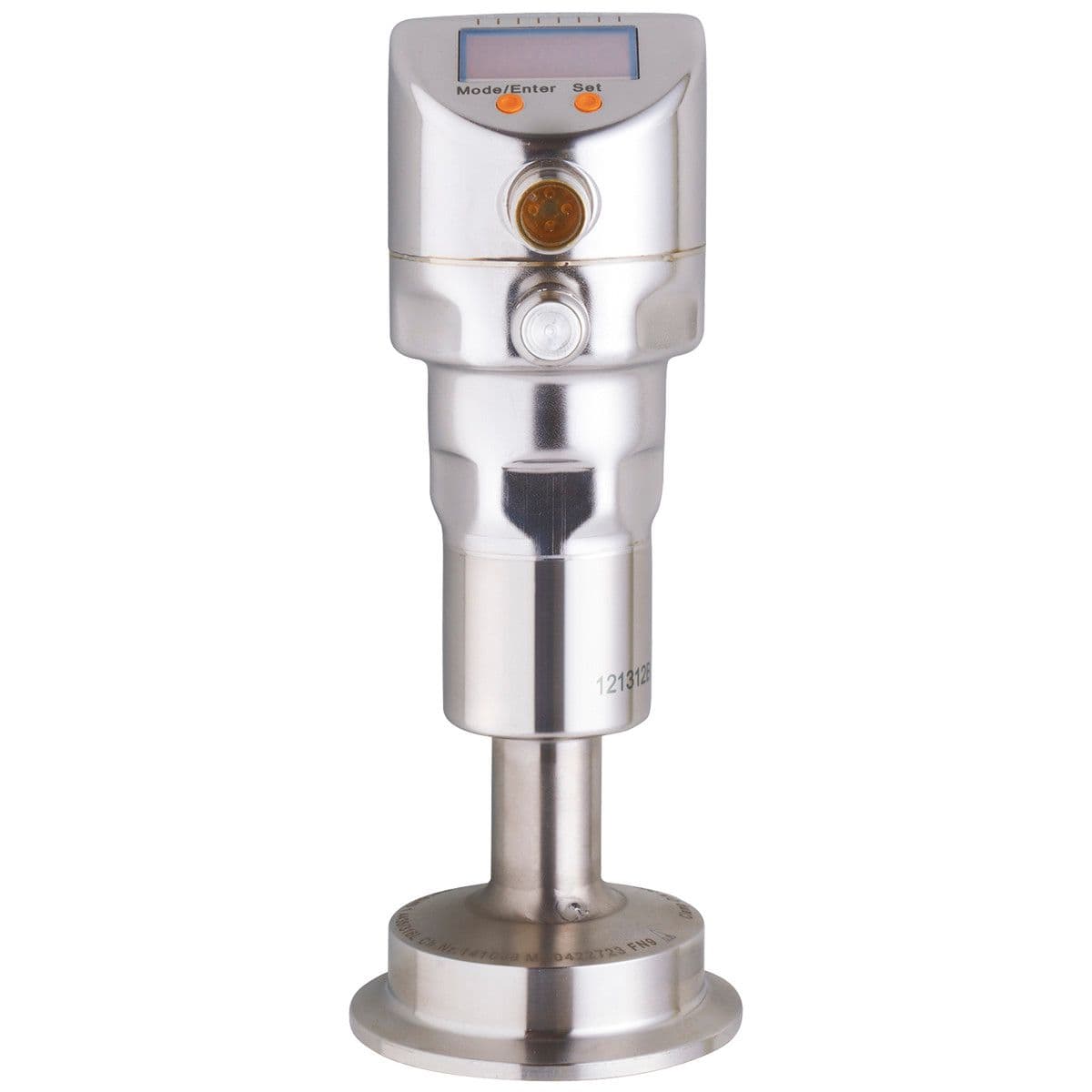

PI2306 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Type of pressure
  relative pressure
• Output function
  normally open / closed; (configurable)
• Process connection
  Clamp DN50 (2") DIN 32676 (ISO 2852)
• Integrated watchdog
  yes
• Electrical design
  PNP/NPN
• Switching frequency DC [Hz]
  125
• Application
  flush mountable for the food and beverage industry
• Protection class
  III
• Short-circuit protection
  yes
• Operating voltage [V]
  18...32 DC
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Measuring range
  -0.124...2.5 bar -1.8...36.27 psi -12.4...250 kPa
• Pressure rating
  20 bar 290 psi 2000 kPa
• Total number of outputs
  2
• Overload protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Reverse polarity protection
  yes
Type of short-circuit protection
yes (non-latching)
Output signal
switching signal; analog signal; IO-Link; (configurable)
Analog current output [mA]
4...20, invertible; (scalable)
Medium temperature [°C]
-25...200
Current consumption [mA]
< 45
Number of digital outputs
2
Permanent current rating of switching output DC [mA]
250
Min. bursting pressure
50 bar 725 psi 5000 kPa
Power-on delay time [s]
0.5
Number of analog outputs
1
Max. voltage drop switching output DC [V]
2
