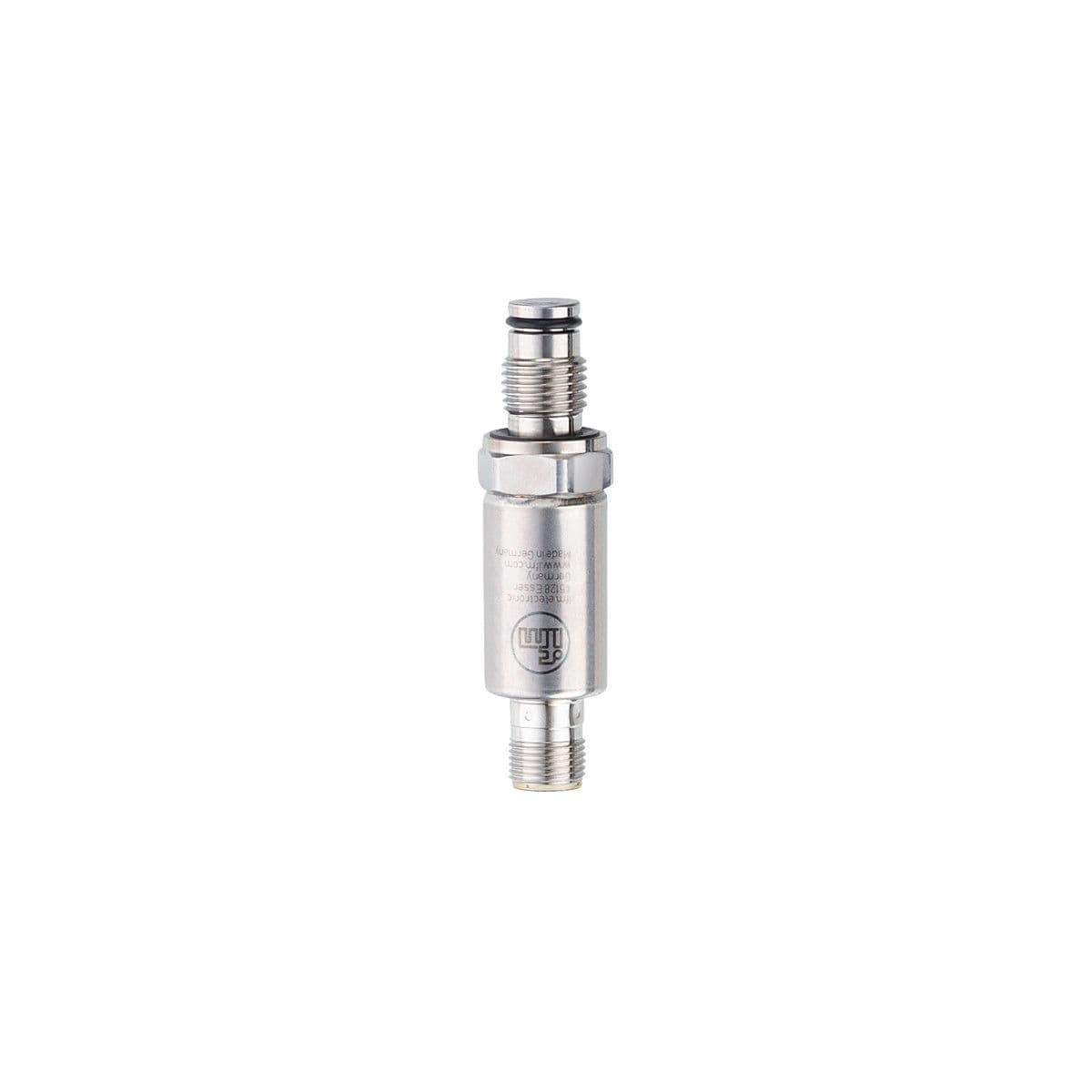

PL5402 ifm Electronic Electronic Components

Name: PL5402
Brand: ifm Electronic

Part#:PL5402

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Pressure transmitter, Reliable detection of system pressure in industrial and mobile applications, Output signal: analog signal, Measuring range: 0...100 bar 0...1450 psi 0...10 MPa, Process connection: threaded connection G 1/4 external thread, Measuring

Product Details

Protection class
III
Output signal
analog signal
Pressure rating
250 bar 3626 psi 25 Mpa
Measuring element
thin film measuring cell with diaphragm seal technique
Power-on delay time [s]
0.1
Analog current output [mA]
4...20
Min. bursting pressure
1000 bar 14500 psi 100 MPa
Reverse polarity protection
yes
Process connection
threaded connection G 1/4 external thread
Min. insulation resistance [MΩ]
100; (500 V DC)
Max. load [Ω]
(Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω
Operating voltage [V]
8.5...36 DC
Number of analog outputs
1
Application
frontbündig; for industrial applications
Media
viscous media and liquids with suspended particles; liquids and gases
Type of pressure
relative pressure
Medium temperature [°C]
-25...90
Vacuum resistance [mbar]
-1000
Total number of outputs
1
Overload protection
yes

Measuring range

0...100 bar 0...1450 psi 0...10 MPa

Short-circuit proof

yes

Number of inputs and outputs

Number of analog outputs: 1

Note on pressure rating

static

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
