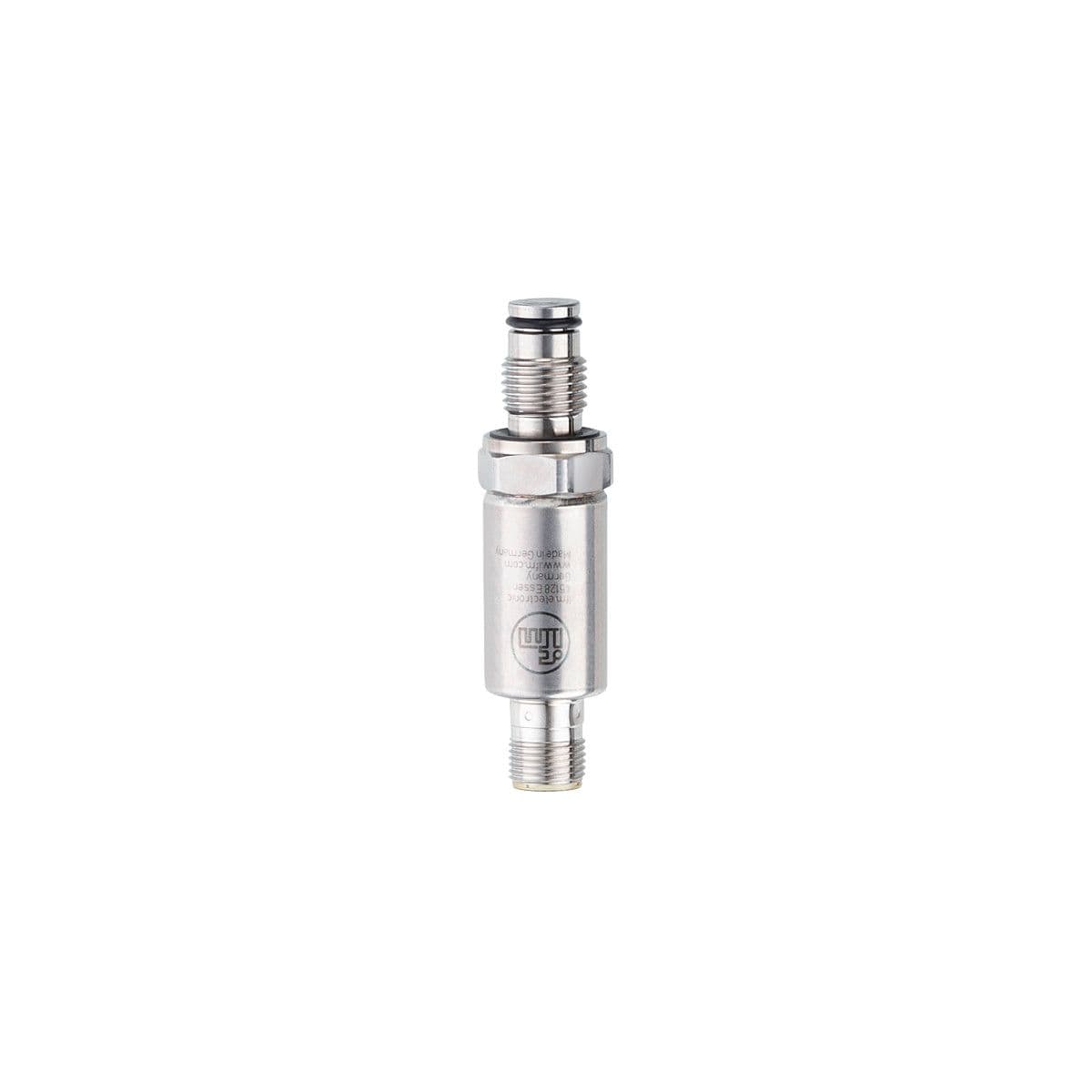

PL5412 ifm Electronic Electronic Components
Part#:PL5412
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Pressure transmitter, Reliable detection of system pressure in industrial and mobile applications, Output signal: analog signal, Measuring range: 0...160 bar 0...2320 psi 0...16 MPa, Process connection: threaded connection G 1/4 external thread, Measuring
Product Details
- Power-on delay time [s] 0.1
- Analog current output [mA] 4...20
- Pressure rating 400 bar 5800 psi 40 Mpa
- Measuring element thin film measuring cell with diaphragm seal technique
- Protection class III
- Short-circuit proof yes
- Measuring range 0...160 bar 0...2320 psi 0...16 MPa
- Operating voltage [V] 8.5...36 DC
- Number of analog outputs 1
- Application frontbündig; for industrial applications
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Number of inputs and outputs Number of analog outputs: 1
- Output signal analog signal
- Type of pressure relative pressure
- Medium temperature [°C] -25...90
- Note on pressure rating static
- Max. load [Ω] (Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω
- Media viscous media and liquids with suspended particles; liquids and gases
- Vacuum resistance [mbar] -1000
- Total number of outputs 1
- Process connection threaded connection G 1/4 external thread
- Min. bursting pressure 1100 bar 15950 psi 110 MPa
- Reverse polarity protection yes
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
