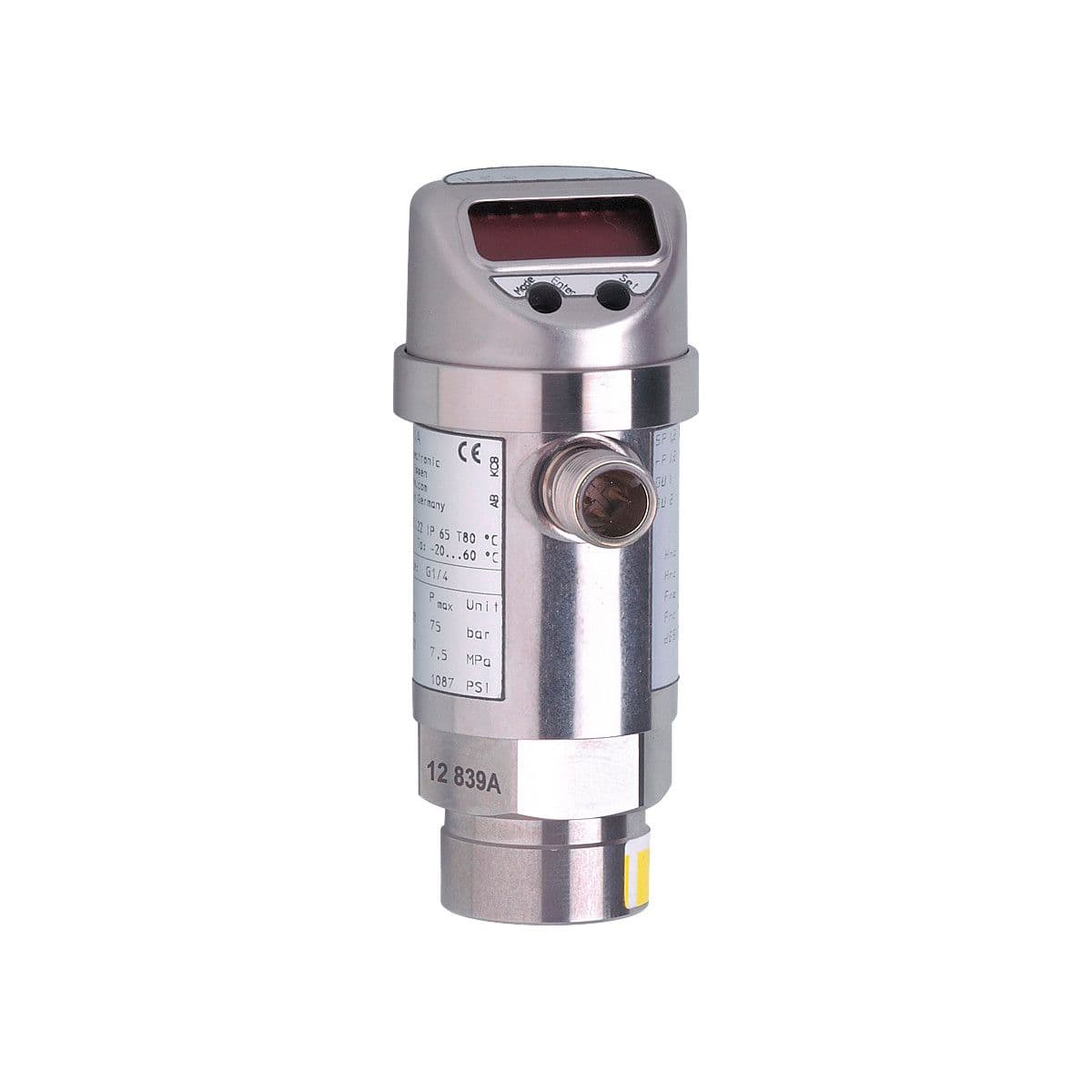

PN014A ifm Electronic Electronic Components

Product Details

• Short-circuit protection
  yes
• Measuring range
  -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
• Type of pressure
  relative pressure; vacuum
• Output function
  normally open / closed; (configurable)
• System
  gold-plated contacts
• Medium temperature [°C]
  -20...60
• Protection class
  III
• Output signal
  switching signal; IO-Link; (configurable)
• Number of digital outputs
  2
• Max. voltage drop switching output DC [V]
  2
• Application
  for industrial applications
• Process connection
  threaded connection G 1/4 Internal thread
• Operating voltage [V]
  18...36 DC; (according to EN 50178 SELV/PELV)
• Number of inputs and outputs
  Number of digital outputs: 2
• Current consumption [mA]
  < 50
• Switching frequency DC [Hz]
  < 170
• Electrical design
  PNP/NPN
• Min. bursting pressure
  150 bar 2175 psi 15 MPa
• Reverse polarity protection
  yes
• Overvoltage protection
  yes; (< 40 V)
Permanent current rating of switching output DC [mA]
250
Power-on delay time [s]
0.3
Integrated watchdog
yes
Type of short-circuit protection
yes (non-latching)
Media
liquids and gases
Pressure rating
75 bar 1087 psi 7.5 Mpa
Total number of outputs
2
