PN016A ifm Electronic Electronic Components
Part#:PN016A
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

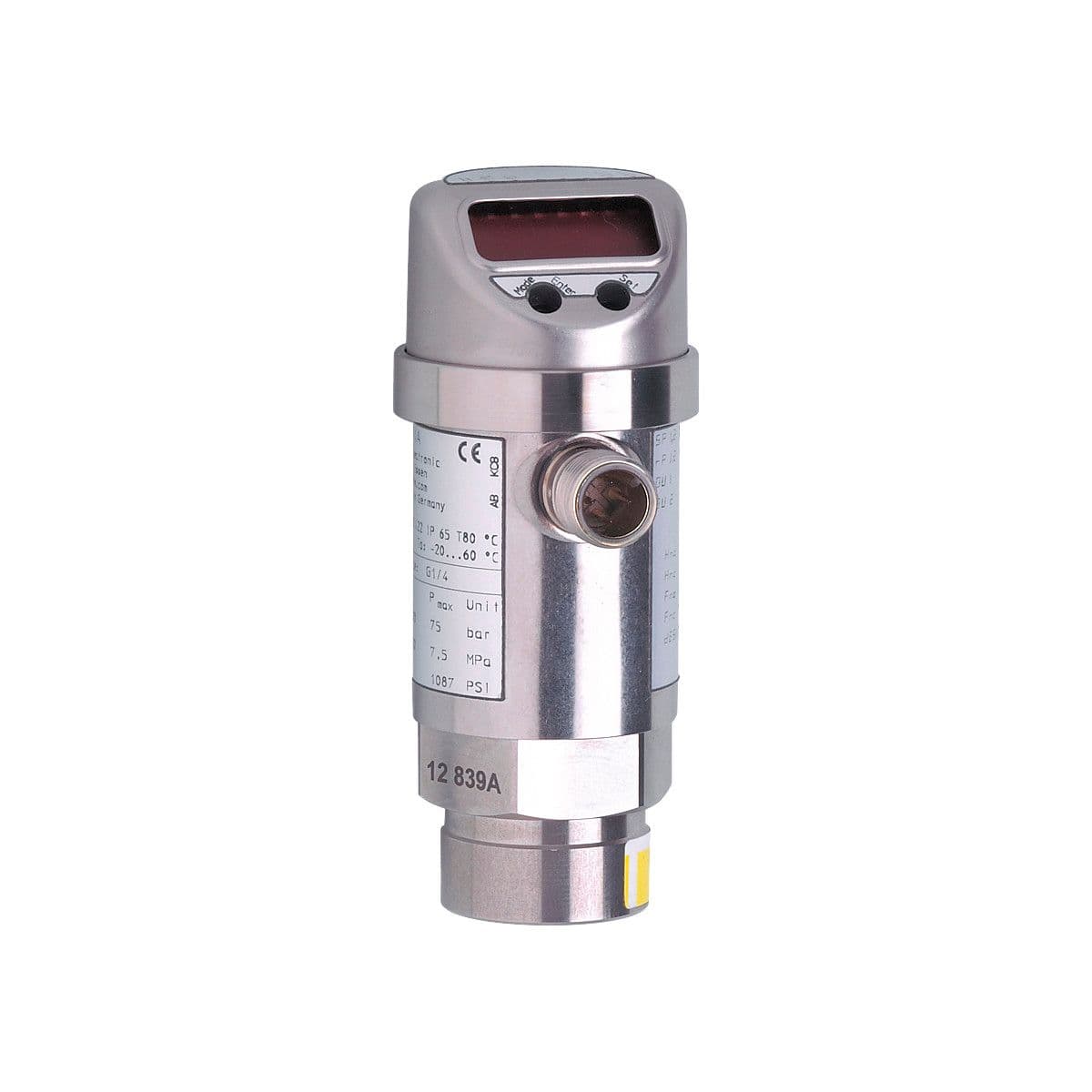

Pressure sensor with display, For applications in hazardous areas, Output signal: switching signal; IO-Link; (configurable), Measuring range: 0...2.5 bar 0...2500 mbar 0...36.3 psi 0...250 kPa, Process connection: threaded connection G 1/4 Internal thread
Product Details
- Medium temperature [°C] -20...60
- Type of pressure relative pressure
- Number of inputs and outputs Number of digital outputs: 2
- Short-circuit protection yes
- Operating voltage [V] 18...36 DC; (according to EN 50178 SELV/PELV)
- Electrical design PNP/NPN
- Pressure rating 20 bar 290 psi 2000 kPa
- Overvoltage protection yes; (< 40 V)
- Permanent current rating of switching output DC [mA] 250
- Min. bursting pressure 50 bar 725 psi 5000 kPa
- Reverse polarity protection yes
- Output function normally open / closed; (configurable)
- Protection class III
- Number of digital outputs 2
- Measuring range 0...2.5 bar 0...2500 mbar 0...36.3 psi 0...250 kPa
- Media liquids and gases
- Total number of outputs 2
- Application for industrial applications
- Current consumption [mA] < 50
- Max. voltage drop switching output DC [V] 2
- System gold-plated contacts
- Power-on delay time [s] 0.3
- Output signal switching signal; IO-Link; (configurable)
- Type of short-circuit protection yes (non-latching)
- Process connection threaded connection G 1/4 Internal thread
- Integrated watchdog yes
- Switching frequency DC [Hz] < 170
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
