PU5703 ifm Electronic Electronic Components
Part#:PU5703
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

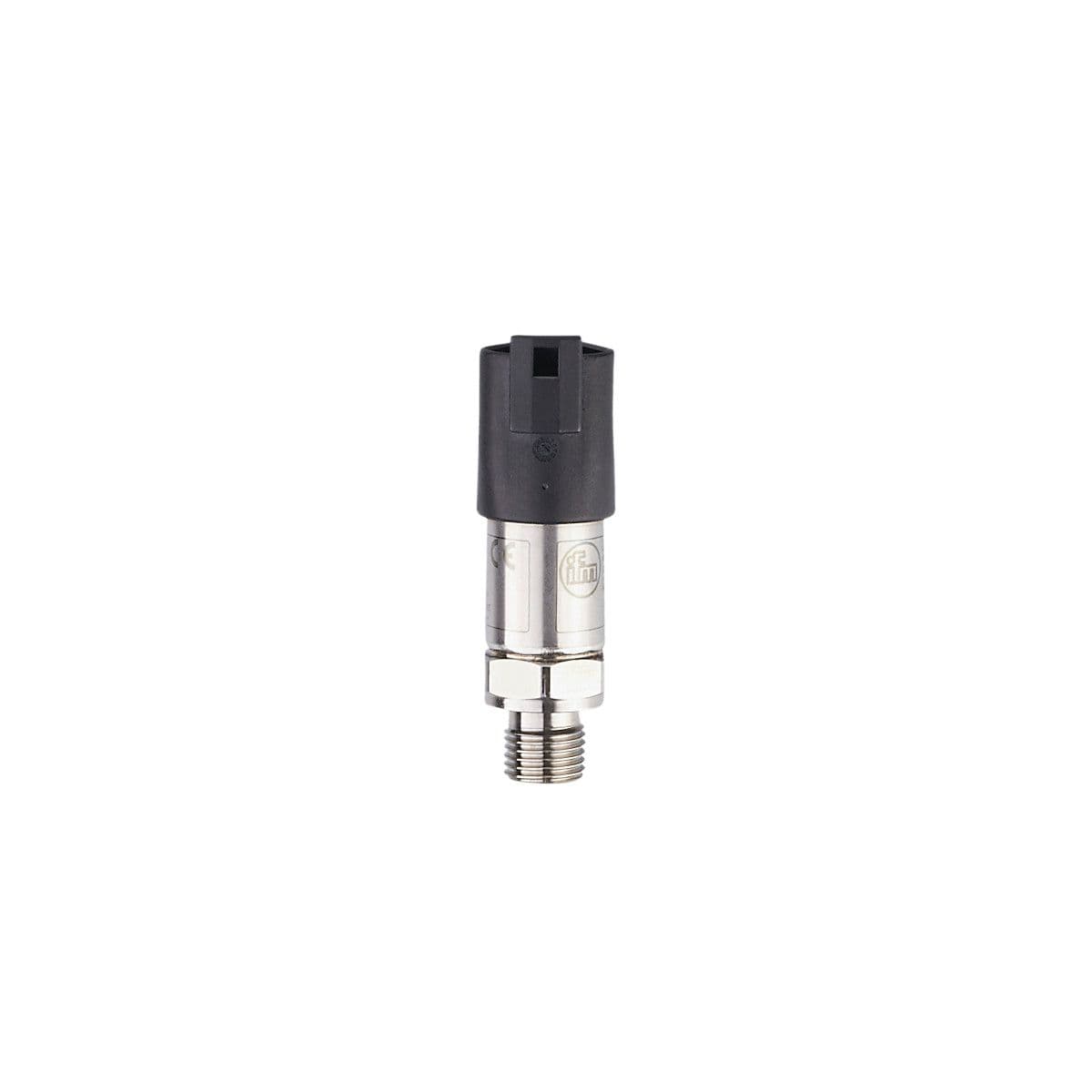

Pressure transmitter, For the reliable detection of the system pressure in mobile machines, Output signal: analog signal, Measuring range: 0...25 bar 0...360 psi 0...2.5 MPa, Process connection: threaded connection G 1/4 external thread (DIN EN ISO 1179-2
Product Details
- Short-circuit proof yes
- Total number of outputs 1
- Min. load resistance [Ω] 2000
- Vacuum resistance [mbar] -1000
- Number of analog outputs 1
- Overload protection yes
- Analog voltage output [V] 0...10
- Number of inputs and outputs Number of analog outputs: 1
- Power-on delay time [s] < 0.1
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Reverse polarity protection yes
- Protection class III
- Current consumption [mA] < 12
- Operating voltage [V] 16...32 DC
- Type of pressure relative pressure
- Measuring range 0...25 bar 0...360 psi 0...2.5 MPa
- Process connection threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
- Note on pressure rating static
- Pressure rating 65 bar 940 psi 6.5 Mpa
- Application for mobile applications
- Min. bursting pressure 600 bar 8700 psi 60 MPa
- Media liquids and gases
- Output signal analog signal
- Medium temperature [°C] -40...125
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
