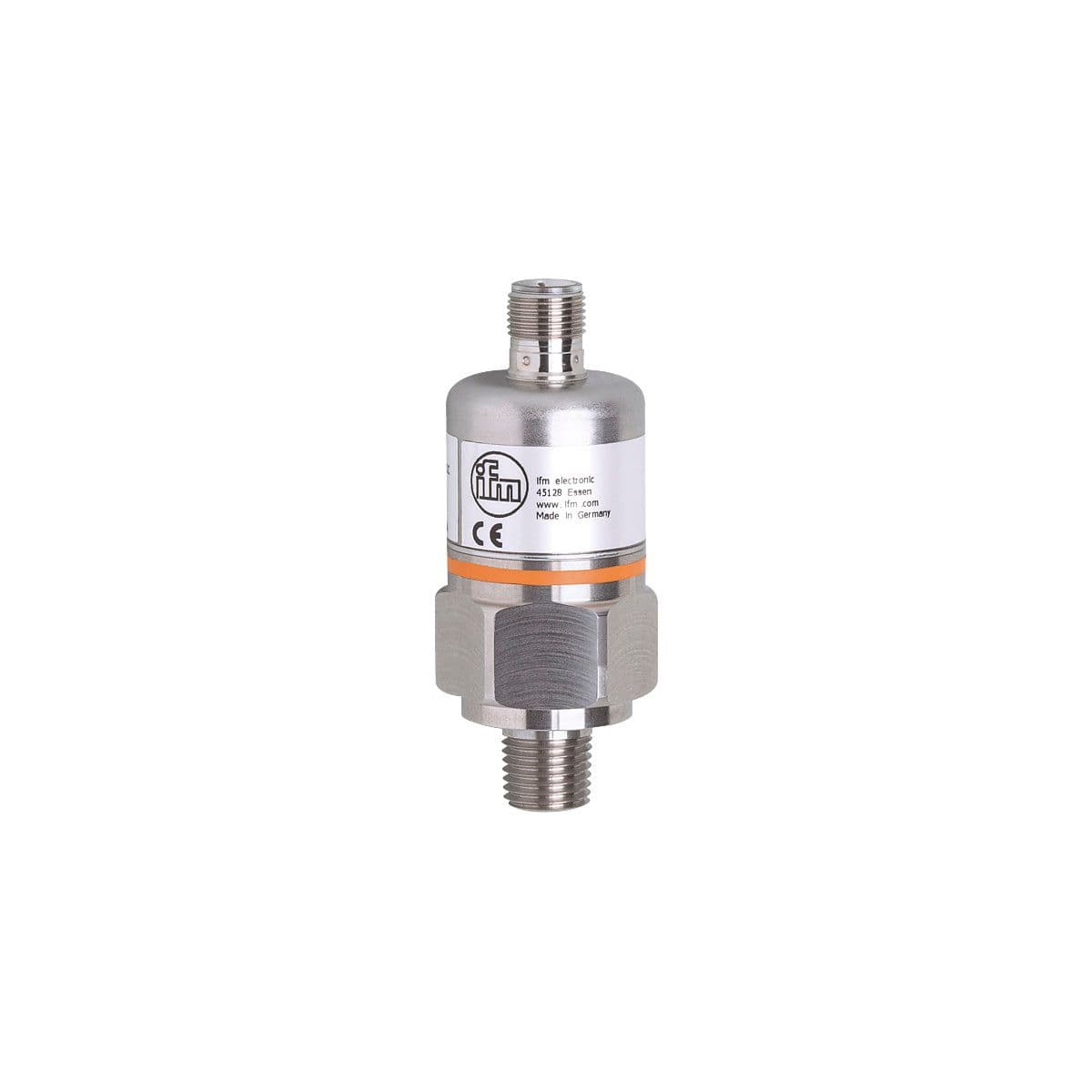

PX9116 ifm Electronic Electronic Components

Name: PX9116
Brand: ifm Electronic

Part#:PX9116

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Pressure transmitter with ceramic measuring cell, Robust design for use in mobile machines, Output signal: analog signal, Measuring range [psi]: 0...30, Process connection: threaded connection 1/4" NPT external thread Internal thread:M5, System: gold-plat

Product Details

Medium temperature [°C]
-25...90
Reverse polarity protection
yes
Application
for industrial applications
Operating voltage [V]
16...32 DC
Min. load resistance [Ω]
2000
System
gold-plated contacts
Current consumption [mA]
< 18
Min. bursting pressure [psi]
725
Number of inputs and outputs
Number of analog outputs: 1
Pressure rating [psi]
290
Total number of outputs
1
Media
liquids and gases
Analog voltage output [V]
0...10
Protection class
III
Output signal
analog signal
Overload protection
yes
Measuring range [psi]
0...30
Min. insulation resistance [MΩ]
100; (500 V DC)
Process connection
threaded connection 1/4" NPT external thread Internal thread:M5
Type of pressure
relative pressure

Number of analog outputs

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PX9116 Related Documents

CAD_SAT_500_0115.ZIP-1631072540386.zip CAD_DWG_500_0115.ZIP-1631072540364.zip CAD_STP_500_0115.ZIP-1631072540357.zip PDF data sheet-1631072540384.pdf CAD_DXF_500_0115.ZIP-1631072540363.zip
