PX9134 ifm Electronic Electronic Components
Part#:PX9134
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

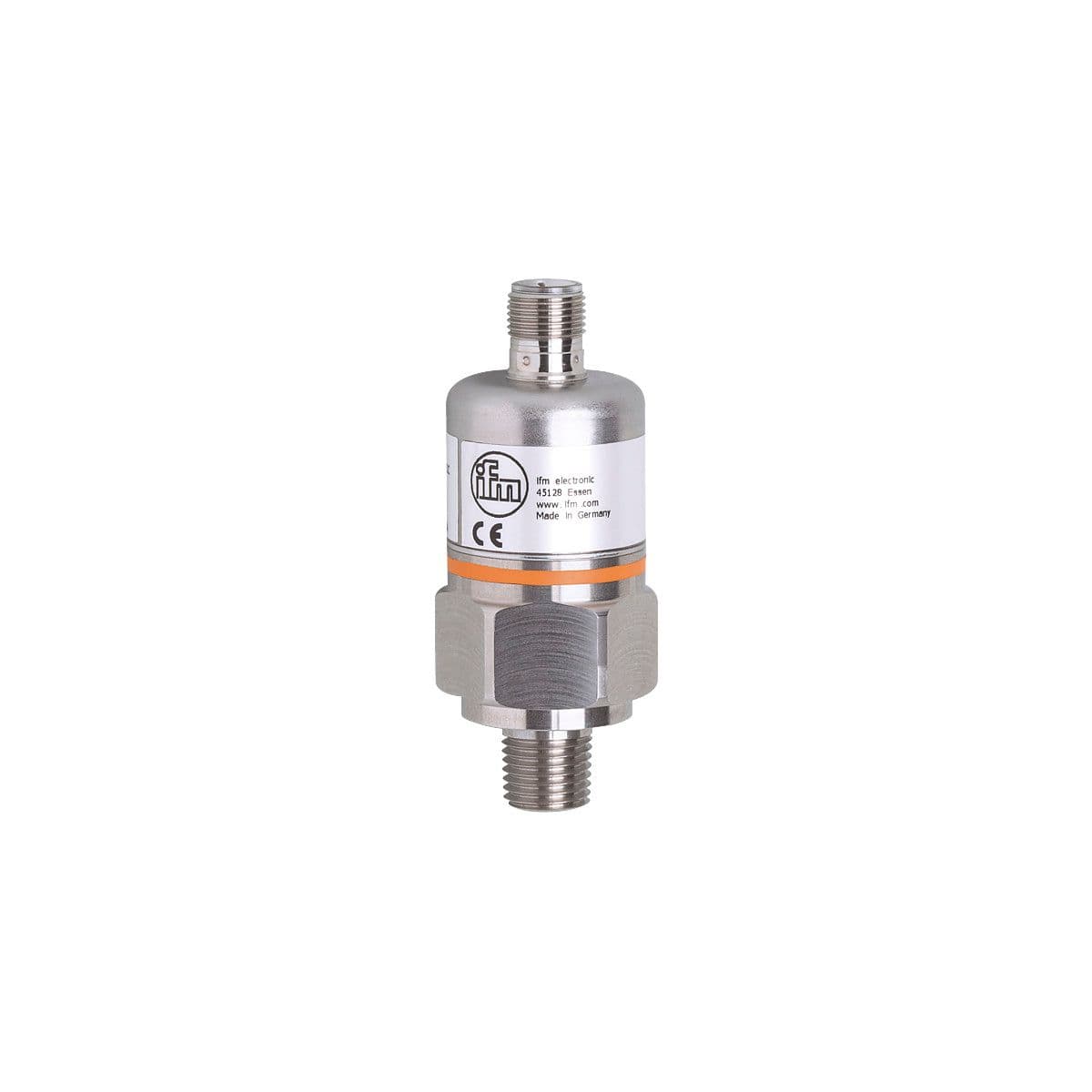

Pressure transmitter with ceramic measuring cell, Robust design for use in mobile machines, Output signal: analog signal, Measuring range [psi]: 0...200, Process connection: threaded connection 1/4" NPT external thread Internal thread:M5, System: gold-pla
Product Details
- Medium temperature [°C] -25...90
- Current consumption [mA] < 18
- Application for industrial applications
- Number of inputs and outputs Number of analog outputs: 1
- Min. load resistance [Ω] 2000
- Min. bursting pressure [psi] 2175
- Pressure rating [psi] 1087
- Reverse polarity protection yes
- Overload protection yes
- System gold-plated contacts
- Total number of outputs 1
- Analog voltage output [V] 0...10
- Measuring range [psi] 0...200
- Protection class III
- Media liquids and gases
- Operating voltage [V] 16...32 DC
- Output signal analog signal
- Number of analog outputs 1
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Process connection threaded connection 1/4" NPT external thread Internal thread:M5
- Type of pressure relative pressure
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
