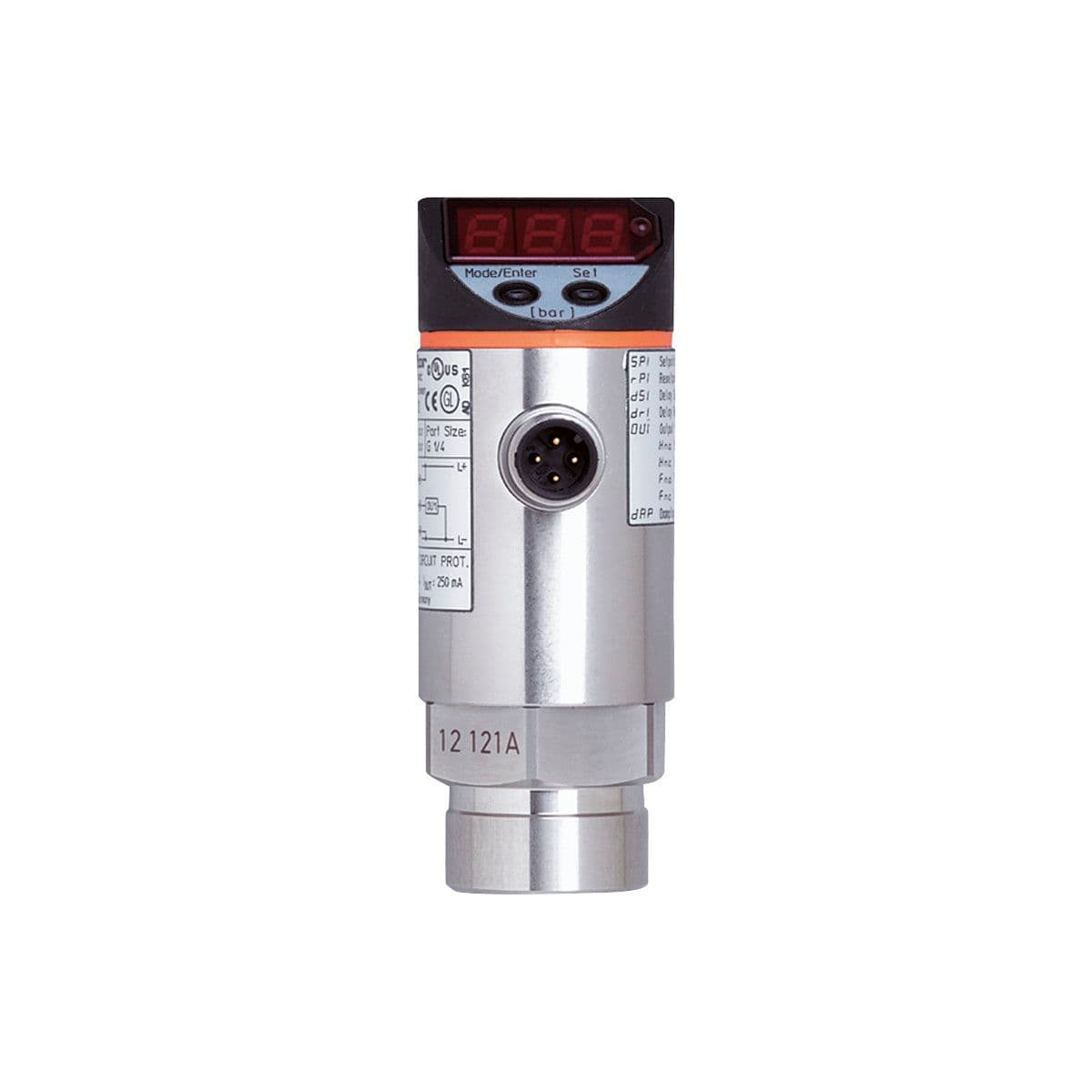

PY9292 ifm Electronic Electronic Components

Product Details

• Output signal
  switching signal
• Measuring range
  0...100 bar 0...1450 psi 0...10 MPa
• Type of pressure
  relative pressure
• Media
  liquids and gases
• Current consumption [mA]
  < 50
• Permanent current rating of switching output DC [mA]
  250
• Output function
  normally open / closed; (configurable)
• System
  gold-plated contacts
• Operating voltage [V]
  18...36 DC; (according to EN 50178 SELV/PELV)
• Protection class
  III
• Total number of outputs
  2
• Type of short-circuit protection
  yes (non-latching)
• Conditionally suitable for
  For gaseous media the application is limited to max. 25 bar.
• Medium temperature [°C]
  -25...80
• Overvoltage protection
  yes; (< 40 V)
• Max. voltage drop switching output DC [V]
  2
• Process connection
  threaded connection G 1/4 Internal thread
• Min. bursting pressure
  650 bar 9400 psi 65 MPa
• Pressure rating
  300 bar 4350 psi 30 Mpa
• Reverse polarity protection
  yes
Integrated watchdog
yes
Electrical design
PNP/NPN
Number of digital outputs
2
Min. insulation resistance [MΩ]
100; (500 V DC)
Number of inputs and outputs
Number of digital outputs: 2
Short-circuit protection
yes
Power-on delay time [s]
0.3
Switching frequency DC [Hz]
< 170
