PY9294 ifm Electronic Electronic Components
Part#:PY9294
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

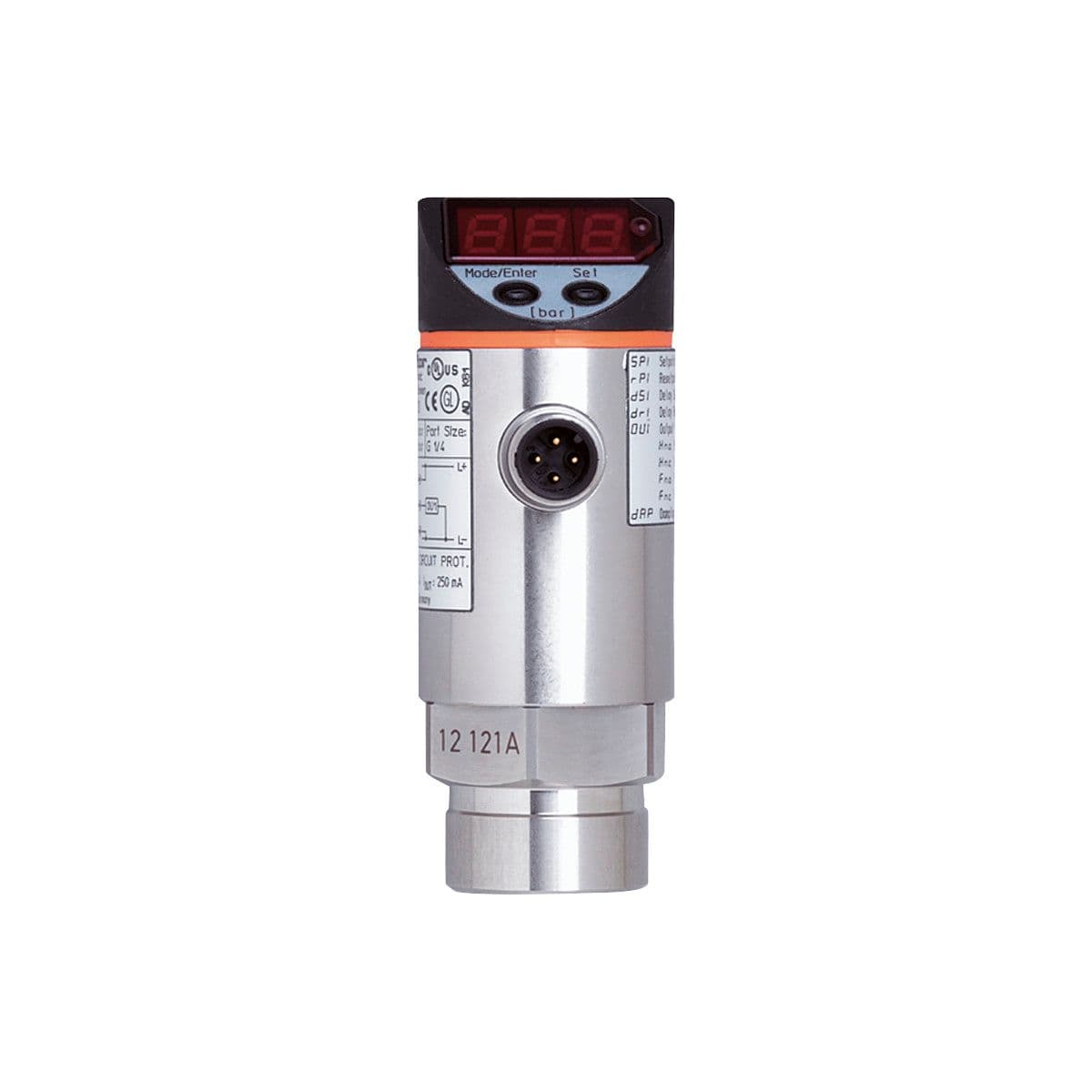

Pressure sensor with display, Two switching outputs, one of which can be configured as diagnostic output, Output signal: switching signal, Measuring range: -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa, Process connection: threaded connection G
Product Details
- Type of pressure relative pressure
- Overvoltage protection yes; (< 40 V)
- Permanent current rating of switching output DC [mA] 250
- Pressure rating 75 bar 1087 psi 7.5 Mpa
- Current consumption [mA] < 50
- Number of digital outputs 2
- Operating voltage [V] 18...36 DC; (according to EN 50178 SELV/PELV)
- Number of inputs and outputs Number of digital outputs: 2
- Switching frequency DC [Hz] < 170
- Measuring range -1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
- Power-on delay time [s] 0.3
- Output signal switching signal
- Max. voltage drop switching output DC [V] 2
- Media liquids and gases
- Medium temperature [°C] -25...80
- Integrated watchdog yes
- Short-circuit protection yes
- Process connection threaded connection G 1/4 Internal thread
- Protection class III
- Electrical design PNP/NPN
- Min. bursting pressure 150 bar 2175 psi 15 MPa
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Output function normally open / closed; (configurable)
- Type of short-circuit protection yes (non-latching)
- Total number of outputs 2
- System gold-plated contacts
- Reverse polarity protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PY9294 ifm Electronic
