PY9920 ifm Electronic Electronic Components
Part#:PY9920
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

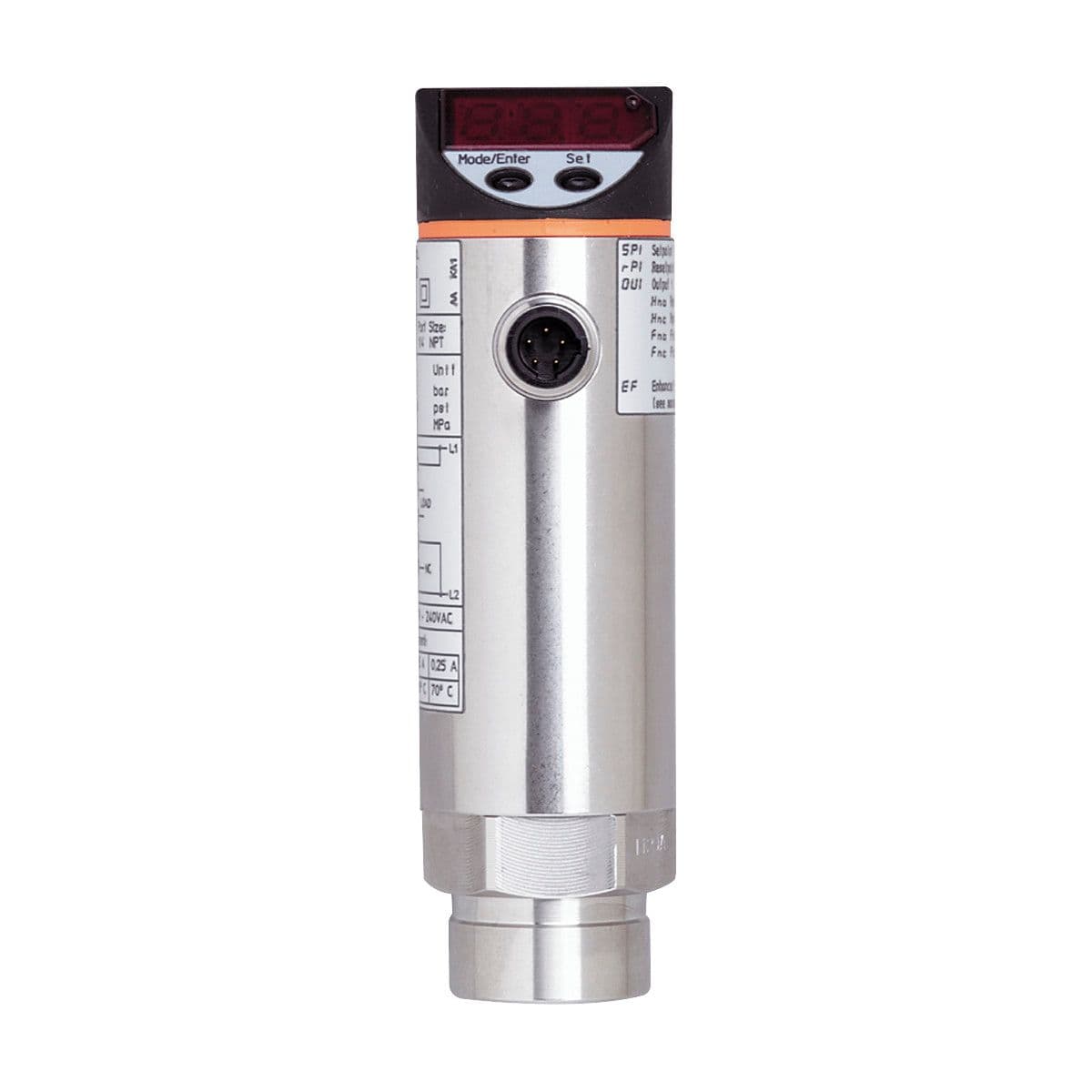

Pressure sensor with display, Reliable detection of pressure loss caused by leakages, Output signal: switching signal, Measuring range: 0...400 bar 0...5800 psi 0...40 MPa, Process connection: threaded connection G 1/4 Internal thread, Medium temperature
Product Details
- Output function normally open / closed; (configurable)
- Process connection threaded connection G 1/4 Internal thread
- Current consumption [mA] < 10
- Permanent current rating of switching output AC [mA] 250; ((...70 °C) 1000 (...60 °C) 1500 (...45 °C) 2500 (...20 °C))
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Switching frequency AC [Hz] < 160
- Medium temperature [°C] -25...80
- Power-on delay time [s] 0.2
- Electrical design Triac
- Overload protection no
- Integrated watchdog yes
- Number of digital outputs 1
- Operating voltage tolerance [%] 5...10
- Reverse polarity protection no
- Output signal switching signal
- Short-circuit proof no
- Nominal voltage AC [V] < 250
- Measuring range 0...400 bar 0...5800 psi 0...40 MPa
- Max. voltage drop switching output AC [V] 2
- Min. bursting pressure 1000 bar 14500 psi 100 MPa
- Number of inputs and outputs Number of digital outputs: 1
- Operating voltage [V] 85...265 AC
- Total number of outputs 1
- Pressure rating 600 bar 8700 psi 60 Mpa
- Protection class II
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
