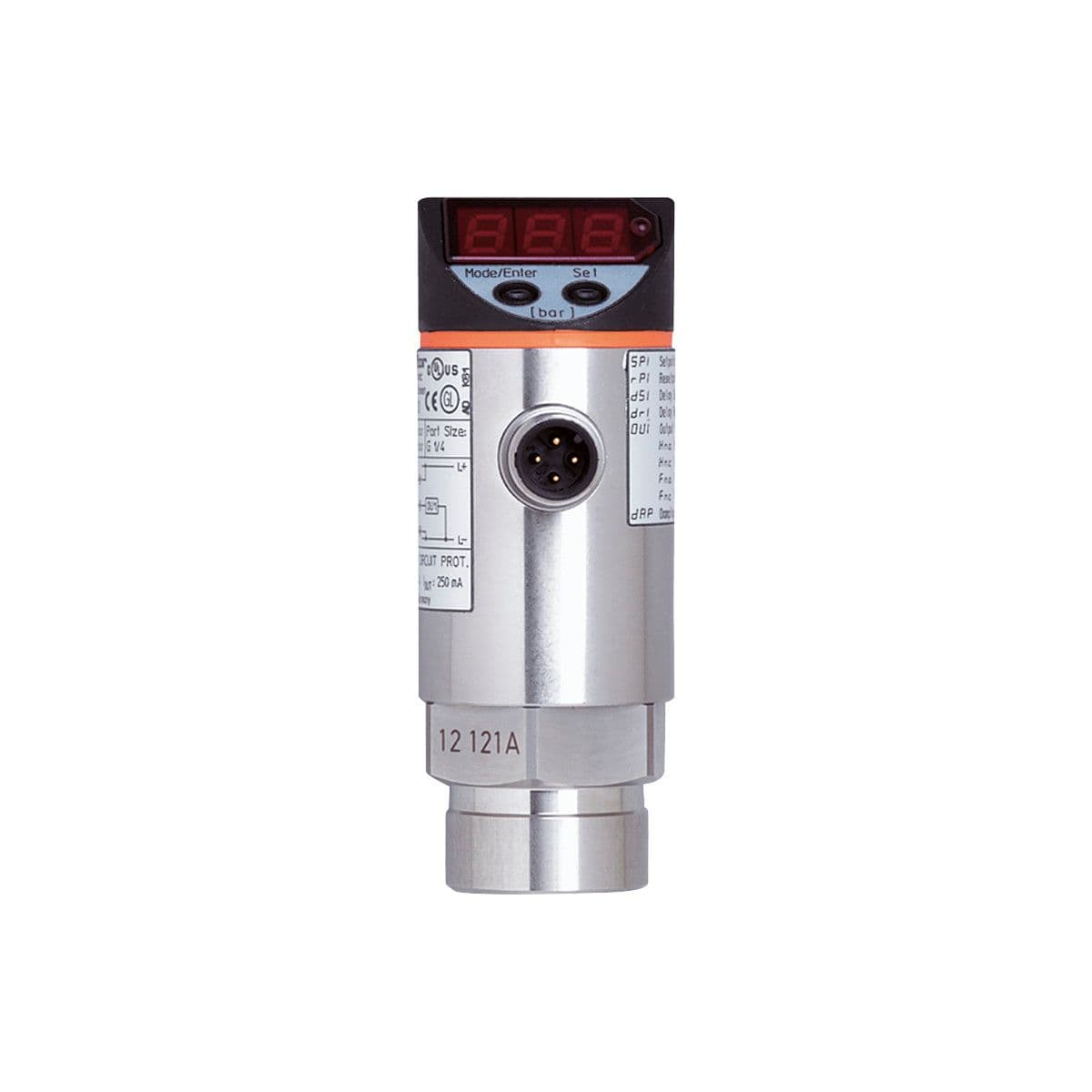

PY9961 ifm Electronic Electronic Components

Product Details

• Type of pressure
  relative pressure
• Medium temperature [°C]
  -25...80
• Power-on delay time [s]
  0.5
• Permanent current rating of switching output DC [mA]
  100
• Min. bursting pressure
  850 bar 12300 psi 85 MPa
• Pressure rating
  400 bar 5800 psi 40 Mpa
• Reverse polarity protection
  yes
• Electrical design
  PNP
• Media
  liquids and gases
• Current consumption [mA]
  < 50
• Number of inputs and outputs
  Number of digital outputs: 2
• Max. voltage drop switching output DC [V]
  3
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Conditionally suitable for
  For gaseous media the application is limited to max. 25 bar.
• Total number of outputs
  2
• Process connection
  threaded connection G 1/4 Internal thread
• Protection class
  III
• Switching frequency AC [Hz]
  < 170
• Number of digital outputs
  2
• Type of short-circuit protection
  yes (non-latching)
Switching frequency DC [Hz]
< 170
Output signal
switching signal
Permanent current rating of switching output AC [mA]
100
System
gold-plated contacts
Operating voltage tolerance [%]
20
Output function
normally open / closed; (configurable)
Short-circuit protection
yes
Measuring range
0...250 bar 0...3620 psi 0...25 MPa
Operating voltage [V]
24 AC / 18...55 DC
Integrated watchdog
yes
Overvoltage protection
yes; (< 60 V DC / < 40 V AC)
Max. voltage drop switching output AC [V]
3
