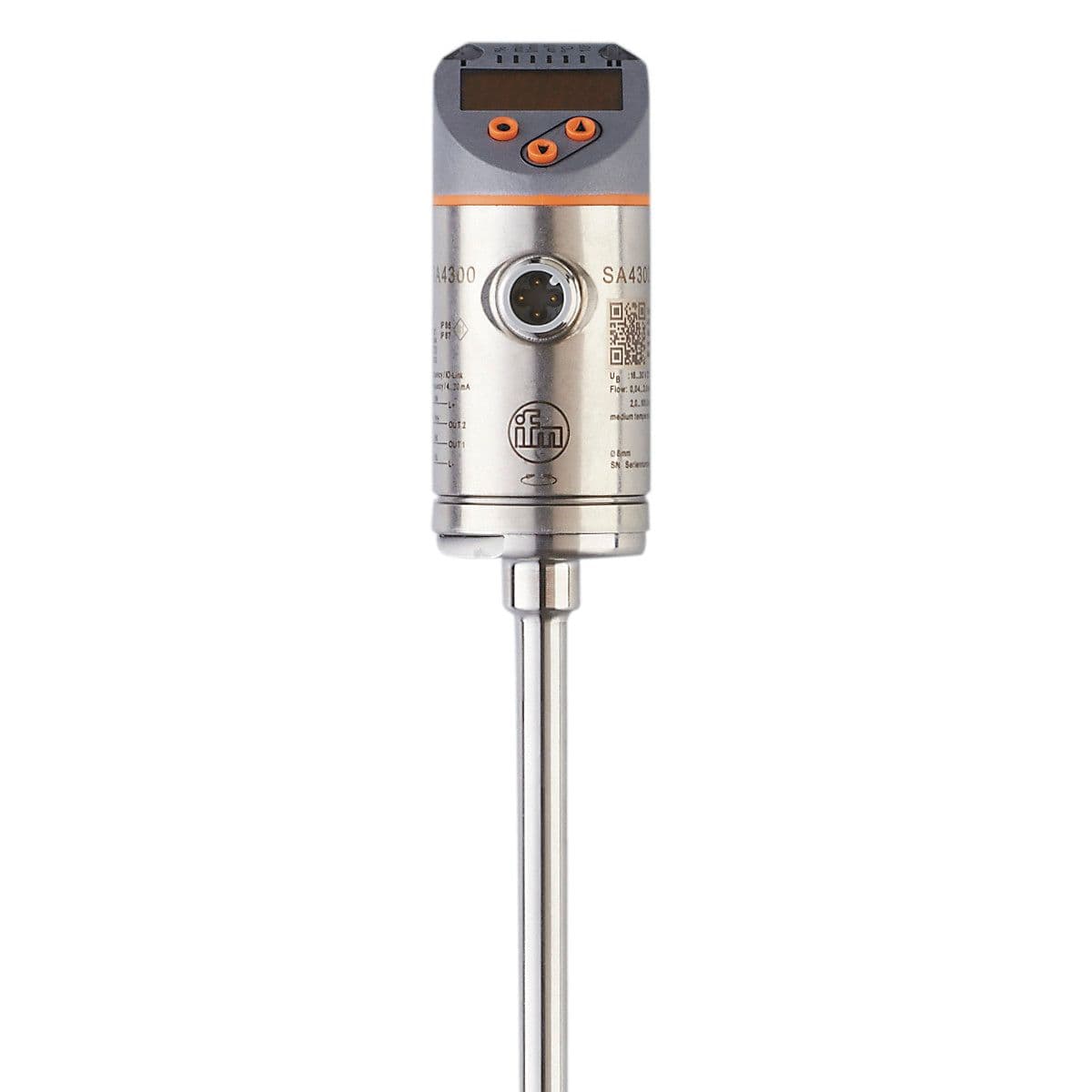

SA4300 ifm Electronic Electronic Components

Product Details

• Electrical design
  PNP/NPN
• Pressure rating [bar]
  50
• Note on media
  low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C) high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
• Total number of outputs
  2
• Max. load [Ω]
  350
• Media
  water; glycol solutions; air; oils
• Power-on delay time [s]
  10
• Number of digital outputs
  2
• Process connection
  Diameter Ø 8 mm
• Protection class
  III
• Short-circuit protection
  yes
• Max. voltage drop switching output DC [V]
  2.5
• Current consumption [mA]
  < 100
• Type of short-circuit protection
  yes (non-latching)
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Operating voltage [V]
  18...30 DC
• Number of analog outputs
  1
• System
  gold-plated contacts
• Reverse polarity protection
  yes
• Output signal
  switching signal; analog signal; frequency signal; IO-Link; (configurable)
Frequency of the output [Hz]
0...1000
MAWP (for applications according to CRN) [bar]
50
Analog current output [mA]
4...20; (scalable)
Overload protection
yes
Medium temperature [°C]
-20...100
Permanent current rating of switching output DC [mA]
250
Pressure rating [Mpa]
5
Output function
normally open / closed; (configurable)
